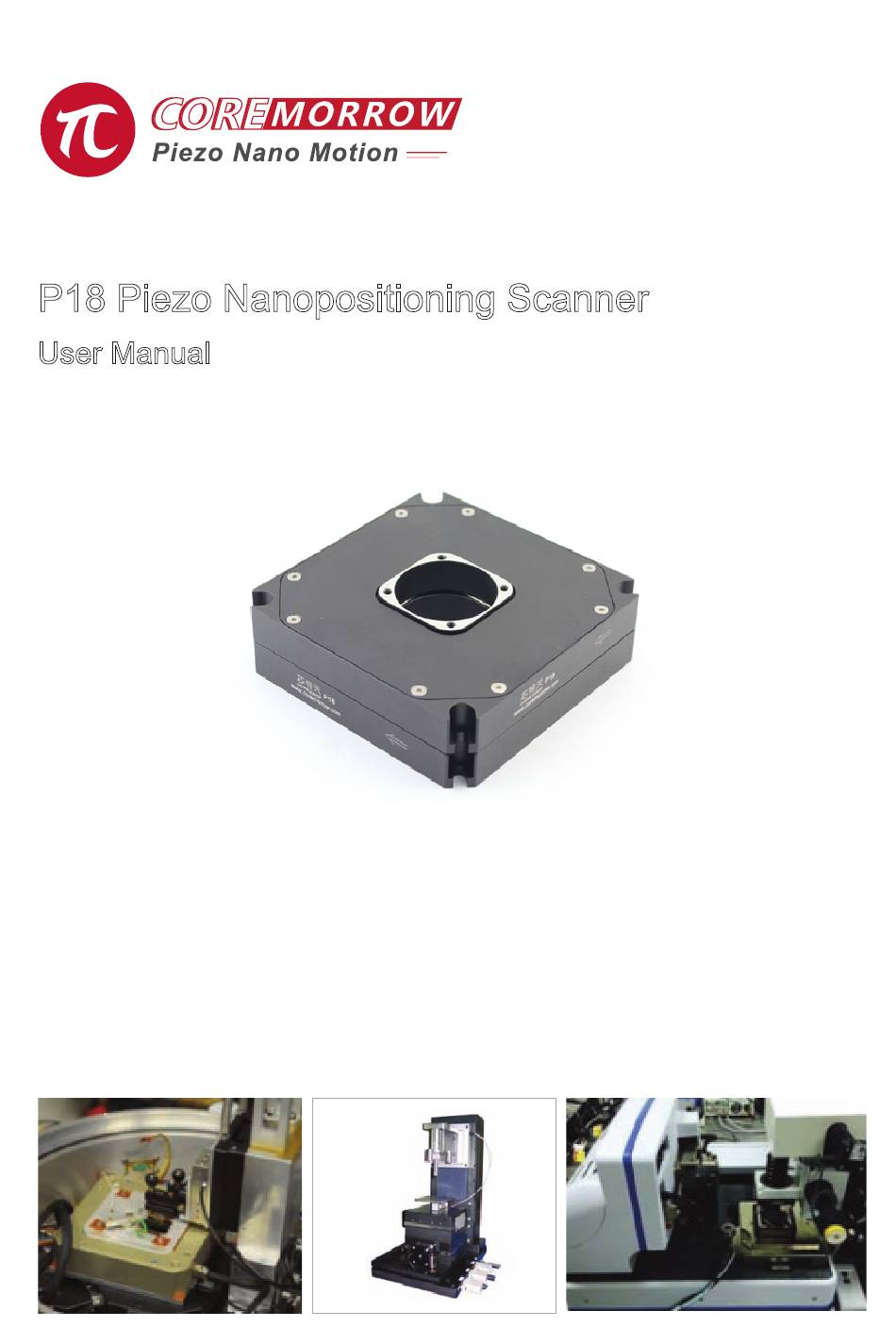

- Page 1 P18 Piezo Nanopositioning Scanner User Manual Version: V1.0 This document describes the following products: ■ P18.X200S/K ■ P18.X300S/K ■ P18.XY200S/K ■ P18.XY300S/K...
- Page 2 With the continuous development and innovation of technology, CoreMorrow will timely add the latest information to the manual as required. If you need, please contact us, or to our website www.coremorrow. com for download, we apologize for any inconvenience caused to you.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
Do not disassemble the product to avoid damage. Avoid stretching and bending the cable interface to prevent damage to the cable. Use the dedicated cable provided by CoreMorrow to connect P18 Piezo Nanopositioning Scanner to controller. Do not connect via an extension cable casually, if you need a longer cable, please... -
Page 6: Product Overview
P18 Piezo Nanopositioning Scanner User Manual 3. Product Overview 3.1 Product Introduction P18 Piezo Nanopositioning Scanner has the following advantages: High performance piezo stack: P18 Piezo Nanopositioning Scanner is driven by a highly reliable ceramic actuator with a fully insulated structure, so its performance and service life are far better than the traditional actuator. -
Page 7: Product Features
move at the same time in XY, the high flexibility ensures that XY motion is uncoupled ,and features fast response speed, no mechanical friction, high repeatable positioning accuracy, easy to operate, so it can meet different applications. This product can also be customized according to the needs. -
Page 8: Operating Environment
P18 Piezo Nanopositioning Scanner User Manual The identification of the labels on the wires of P18 is as follows: Model Motion direction Function Label PZT Drive P18.X200 Senser output PZT Drive P18.X300 Senser output Constant voltage PZT Drive Senser output P18.XY200 PZT Drive Senser output... -
Page 9: Installation And Operation
5. Installation and operation Safety check should be carried out before installation, such as whether the connection wire is damaged or broken, whether the drive power supply is grounded, etc. 5.1 Installation and Precautions Installation diagram of P18 is as follows: Motion surface M3 hole for loading Grounding hole... -
Page 10: Load
P18 Piezo Nanopositioning Scanner User Manual 4. Mounting the load and tighten it properly to ensure the positioning accuracy. 5. Connect the P18 connector with the corresponding controller according to the identification. The wiring mode of Lemo connector is shown as below: Label for sensor output Sensor output PZT drive output... - Page 11 The wrong mounting way is shown in the figure below: FIG.6 Try not to let the position of the center of gravity far exceed the active platform It is forbidden to mount the load on one side of the moving platform, which will cause serious damage to the product, as shown in the figure below.
- Page 12 P18 Piezo Nanopositioning Scanner User Manual We recommend using the connection as shown below: FIG. 8 The correct bolt connection Please do not connect in this way as shown below: FIG. 9 Inappropriate bolt selection...
-
Page 13: Operating
Avoid stretching and bending cables. Use the dedicated cable provided by CoreMorrow to connect P18 and the controller. Do not connect via an extension cable casually, if you need a longer cable, please contact CoreMorrow. -
Page 14: Transportation And Inspection
P18 Piezo Nanopositioning Scanner User Manual Notes： Do not remove the ground protection during operation. If it needs to be temporarily removed, please reconnect the ground protection before restart. The driving voltage shall not exceed the voltage range of P18. If any abnormal noise or oscillation occurs during use, turn off the power immediately and check the parameter setting. -
Page 15: Maintenance And Treatment
Attention: Please handle with care when opening the package, so as not to knock against the product and cause permanent damage to it. Please do not use heavy tools or rough way to open. Please do not discard all the packaging materials which are needed for repair and return. -
Page 16: Daily Maintenance
P18 Piezo Nanopositioning Scanner User Manual If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 17: Connector
8. Connector 8.1 Driving and Sensor Connector The driving connector adopts a 1-contact lemo connector. The model is LEMO era.00.250. CTL as shown below: FIG.10 1-contact LEMO The sensor connector adopts the 4-contacts lemo, model LEMO ERA.0s.304.CLL, as showne below: FIG.11 4-contacts LEMO Note：Open-loop products have only PZT drive line, no sensor line. -
Page 18: Customer Service
Computer operating system that installs supporting software 10.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
