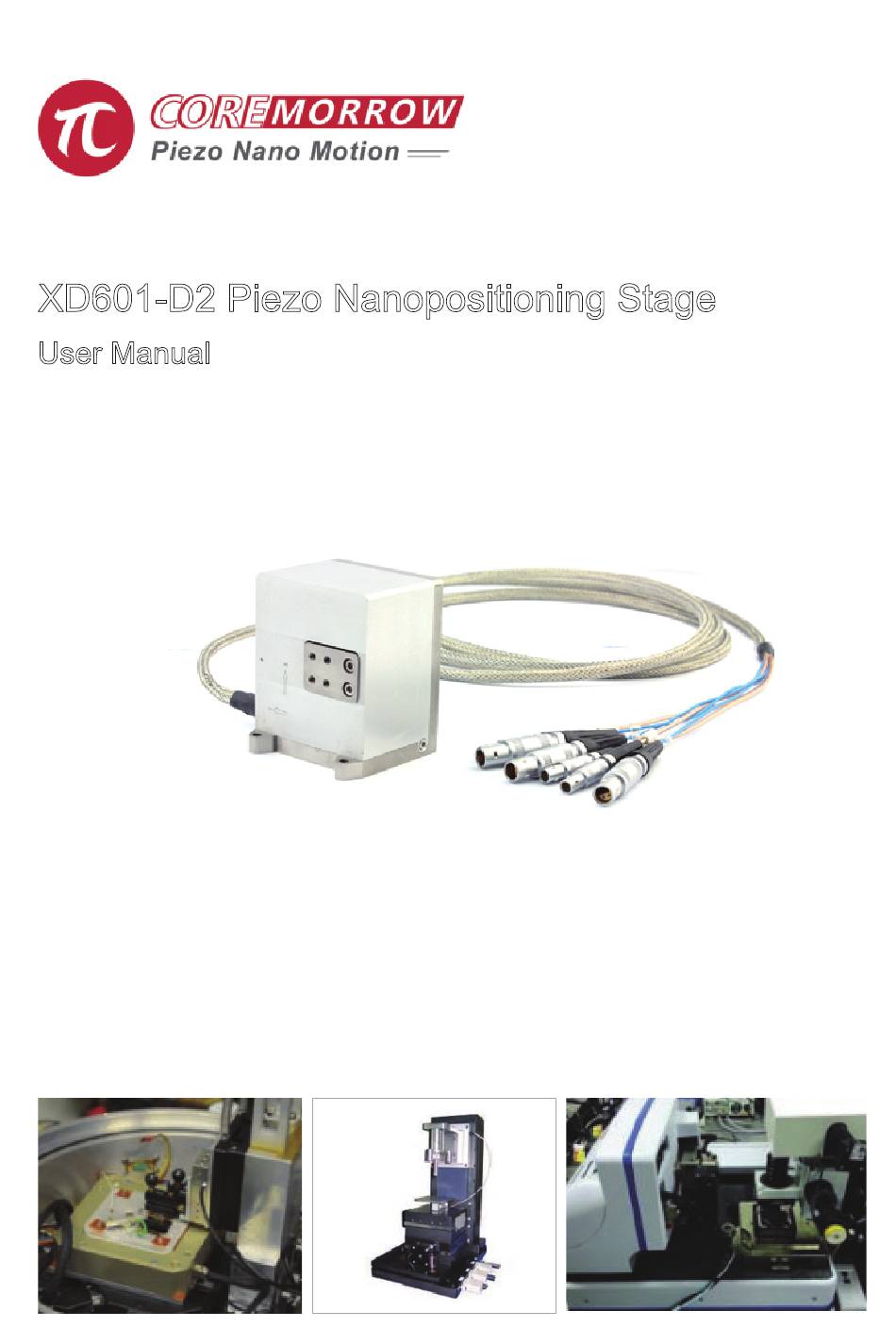

- Page 1 XD601-D2 Piezo Nanopositioning Stage User Manual Version: V1.0 This document describes the following products: ■ XD601-D2...
- Page 2 With the continuous development and innovation of technology, CoreMorrow will timely add the latest information to the manual as required. If you need, please contact us, or to our website www.coremorrow. com for download, we apologize for any inconvenience caused to you.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
Do not disassemble XD601-D2 piezoelectric nanopositioning stage. Discharge XD601-D2 before mounting, which can be done by connecting to the controller. Do not unplug the wire connecting with controller during operation. -
Page 6: Product Overview
The sensor is connected by full bridge without drift and can accurately do the position in the nanometer range. The stroke of XD601-D2 piezo nanopositioning stage can reach the displacement of X180/... -
Page 7: Product Features
This product can also be customized according to the needs. XD601-D2 is mainly used in biotechnology, interferometry, quality detection, optical detection, nano-positioning, microscopy and imaging, image processing and other fields. -
Page 8: Operating Environment
XD601-D2 Piezo Nanopositioning Stage User Manual The identification of the labels on the wires of XD601-D2 is as follows： Model Motion direction Function Label PZT Drive Senser output PZT Drive XD601-D2 Senser output PZT Drive Senser output Table1. XD601-D2 Wire Identification and Motion Direction 4. - Page 9 Label for sensor output Sensor output PZT drive output Label for PZT drive FIG.2 Connector diagram The XD601-D2 mounting diagram is shown below: Moving platform Load mounting hole (M3 screw) Deep 3.5mm Mounting hole (4×M3 screw) FIG.3 XD601-D2 mounting diagram...
-
Page 10: Load
When mounting the load, ensure that the load quality is less than the maximum load capacity of XD601-D2, and try to mount the load in the center of the moving surface. The correct position to mount the load is shown below. - Page 11 It is forbidden to mount the load on one side of the moving platform, which will cause serious damage to the product, as shown in the figure below. FIG.6 Do not mount long loads on one side of the platform Too long screws selected in the fastening and connection process will lead to failure of mounting or part of bolts will be exposed, which will scratch the product and affect the motion accuracy of the product.
-
Page 12: Operating
When mounting the load, tighten the load slowly. The torque should not be too large to prevent damage to the mechanism. Avoid stretching and bending cables. Use the dedicated cable provided by CoreMorrow to connect XD601-D2 and the controller. Do not connect via an extension cable casually, if you need a longer cable, please contact CoreMorrow. - Page 13 150V). 5.After use, please carry out voltage reset operation. Please take light steps when XD601-D2 in operation, do not knock the product, so as not to affect the use of the product or even damage the product. The resolution of the product itself is unlimited, and the resolution depends on the performance of the controller.
-
Page 14: Transportation And Inspection
XD601-D2 Piezo Nanopositioning Stage User Manual 6. Transportation and inspection 6.1 Transportation This product is packed in cartons. Transportation is carried out under the packaging conditions. This product can be transported by various means of transport under normal circumstances. In the process of transportation, direct rain and snow, corrosive substances, strong collision, extrusion, irregular placement and other improper behaviors should be avoided as far as possible. -
Page 15: Maintenance And Treatment
Table 2 FAQ and solutions If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 16: Daily Maintenance
In order to fulfill our responsibility as a product manufacturer, we will dispose all old equipments on the market in an environmentally friendly manner. If you have equipment that cannot be disposed, you can ship it to CoreMorrow. Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin, Heilongjiang... -
Page 17: Parameter
Stroke（0~150V） X180/Y180/Z300 μm Unloaded resonant frequency X200/Y180/Z200 Maximum load Capacitance X2.2/Y2.2/Z7 μF Material Al, Steel Note：The tolerances of the above data are all ±20% Table 3 XD601-D2 Technical Parameters 8.2 Drawing 4- 3.2通孔 THRU 4-R3 8 4-M3x3.5 59.5 FIG.9 Drawings... -
Page 18: Driving And Sensor Connector
XD601-D2 Piezo Nanopositioning Stage User Manual 8.3 Driving and Sensor Connector The connector of PZT driving wire is LEMO, and model is LEMO ERA.00.250.CTL, as shown in below: FIG.10 Single Core LEMO The sensor connector is four-core LEMO, and the model is LEMO ERA.0S.304.CLL，as shown in the following figure: FIG.11 Four-core LEMO... -
Page 19: Customer Service
Computer operating system that installs supporting software 10.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: 0451-86268790 Fax: 0451-86267847 Email: info@coremorrow.com Website: www.coremorrow.com Address: 1F, Building T2, No.191 Xuefu Road, Nangang District, Harbin, Heilongjiang Province, China CoreMorrow Official and CTO WeChat are below:...
