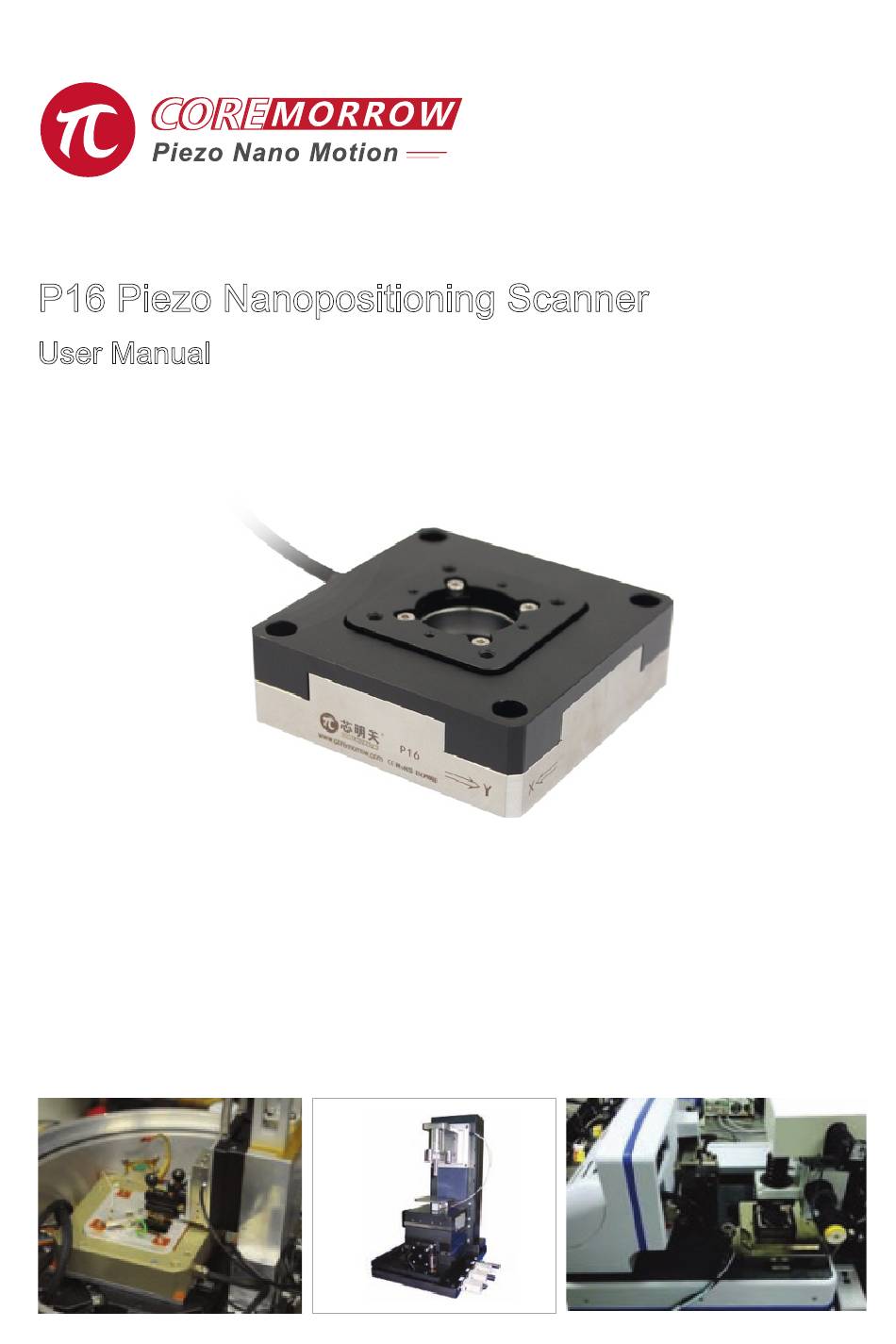

- Page 1 P16 Piezo Nanopositioning Scanner User Manual Version: V1.0 This document describes the following products: ■ P16.XY50S/K ■ P16.XY80S/K ■ P16.XY100S/K...
- Page 2 With the continuous development and innovation of technology, CoreMorrow will timely add the latest information to the manual as required. If you need, please contact us, or to our website www.coremorrow. com for download, we apologize for any inconvenience caused to you.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
Do not disassemble the product to avoid damage. Avoid stretching and bending the cable interface to prevent damage to the cable. Use the dedicated cable provided by CoreMorrow to connect P16 Piezo Nanopositioning Scanner to controller. Do not connect via an extension cable casually, if you need a longer cable, please... -
Page 6: Product Overview
P16 Piezo Nanopositioning Scanner User Manual 3. Product Overview 3.1 Product Introduction P16 Piezo Nanopositioning Scanner has the following advantages: High performance piezo stack: P16 Piezo Nanopositioning Scanner is driven by a highly reliable ceramic actuator with a fully insulated structure, so its performance and service life are far better than the traditional actuator. -
Page 7: Product Features
X/Y, and features fast response speed, no mechanical friction, high repeatable positioning accuracy, easy to operate, so it can meet different applications. This product can also be customized according to the needs. P16 is mainly used in biotechnology, interferometry, quality detection, optical detection, nanometer positioning, microscopy and imaging, image processing and other fields, with a good development prospect. -
Page 8: Operating Environment
P16 Piezo Nanopositioning Scanner User Manual 4. Operating environment A clean, dustfree and non-corrosive environment Operating temperature : -20~80℃ Relative humidity : <60% Recommended voltage range is 0~120V for long-term use and lifetime 5. Installation and operation Safety check should be carried out before installation, such as whether the connection wire is damaged or broken, whether the drive power supply is grounded, etc. - Page 9 Cable Ground protection Safety washer Screw connector Flat washer Platform FIG. 3 Grounding protection diagram 4. Mounting the load and tighten it properly to ensure the positioning accuracy. 5. Connect the P16 connector with the corresponding controller according to the identification.
-
Page 10: Load
P16 Piezo Nanopositioning Scanner User Manual 5.2 Load When mounting the load, ensure that the load quality is less than the maximum load capacity of P16, and try to mount the load in the center of the moving surface. The correct position to mount the load is shown below. FIG.5 The load is applied to the center of the moving surface For the protection of the product, we do not recommend that the load is too high. - Page 11 It is forbidden to mount the load on one side of the moving platform, which will cause serious damage to the product, as shown in the figure below. FIG.7 Do not mount long loads on one side of the platform Excessive length of screws selected in the fastening and connecting process will lead to failure in installation or leakage of bolts, which will expose the product and scratch the product, affecting the motion accuracy of the product.
-
Page 12: Operating
Avoid stretching and bending cables. Use the dedicated cable provided by CoreMorrow to connect P16 and the controller. Do not connect via an extension cable casually, if you need a longer cable, please contact CoreMorrow. -
Page 13: Transportation And Inspection
2.Set the controller’ output voltage to zero first. 3.Check no abnormal phenomenon, then input voltage value (via keyboard or analog control) according to specified input voltage range. 4.Operating normally within the rated voltage range of piezoelectric ceramics (0~120V, maximum 150V). 5.After use, please carry out voltage reset operation. -
Page 14: Open-Box Inspection
P16 Piezo Nanopositioning Scanner User Manual 6.2 Open-Box Inspection Inspection content: Before opening the package, please check the outer packing carefully to see if there is any breakage, wetting, dampness, deformation, etc. Please check the completeness of package contents one by one according to the supply contract and packing list. -
Page 15: Daily Maintenance
Table 2 FAQ and solutions If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 16: Disposal
In order to fulfill our responsibility as a product manufacturer, we will dispose all old equipments on the market in an environmentally friendly manner. If you have equipment that cannot be disposed, you can ship it to CoreMorrow. Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China Tel: +86-451-86268790 8. -
Page 17: Customer Service
The bridge connection mode and pin definition of strain gauge are as follows: Note: The open loop product only has drive connector, no sensor connector. FIG. 12 Definition of Sensor Connector 9.Customer Service If you have questions about the products you are currently using, please let us know the following information: Product model and relevant number The controller model... -
Page 18: Contact Us
P16 Piezo Nanopositioning Scanner User Manual 10.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
