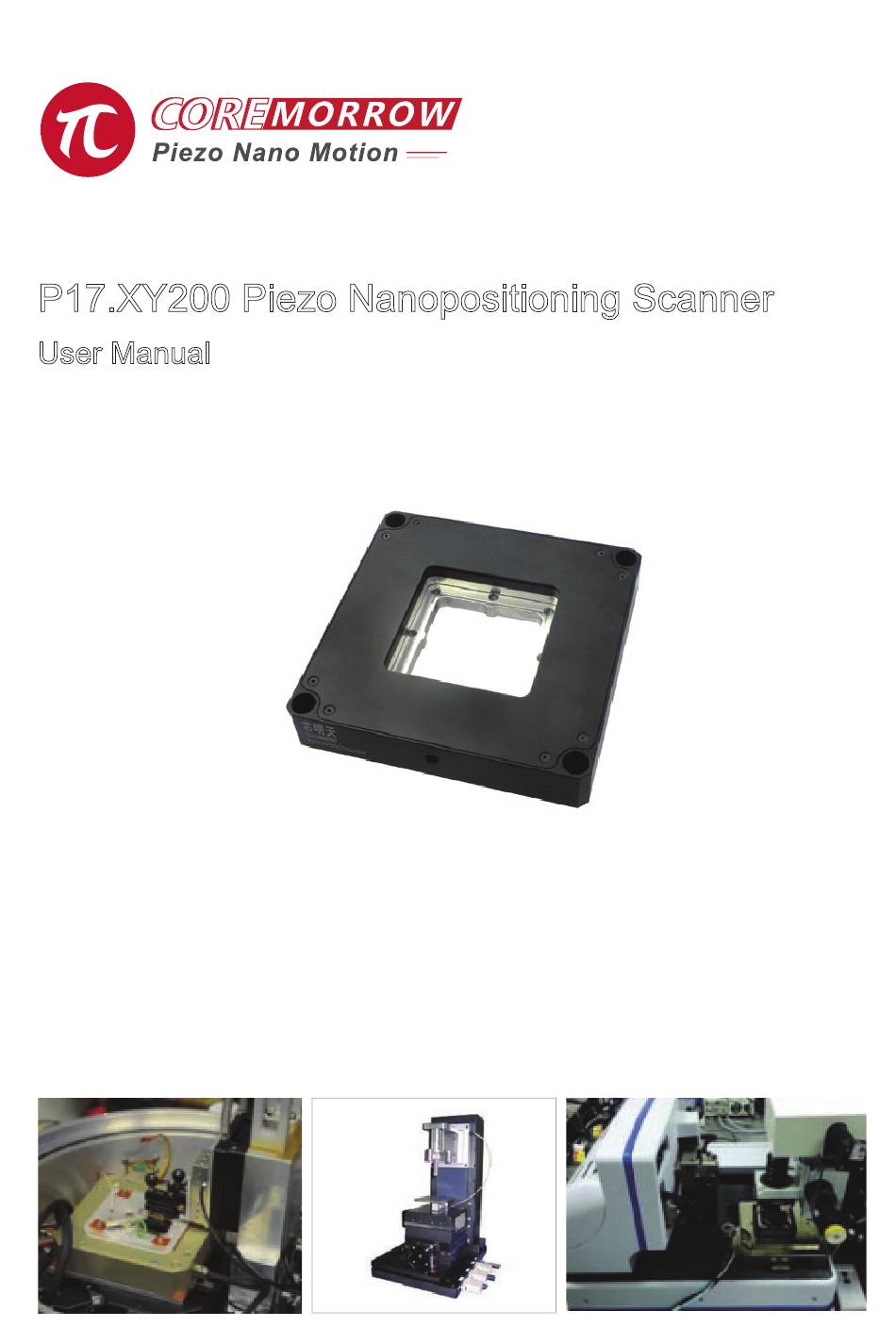

- Page 1 P17.XY200 Piezo Nanopositioning Scanner User Manual Version: V1.0 This document describes the following products: ■ P17.XY200S/K...
- Page 2 With the continuous development and innovation of technology, CoreMorrow will timely add the latest information to the manual as required. If you need, please contact us, or to our website www.coremorrow. com for download, we apologize for any inconvenience caused to you.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
Do not disassemble P17.XY200 Piezo Nanopositioning Scanner. Discharge P17.XY200 before installation, which can be done by connecting to the controller. Do not unplug the wire connecting with controller during operation. -
Page 6: Product Overview
The sensor is connected by a full bridge, no drift, and can be precisely positioned in the nanometer range. P17.XY200 Piezo Nanopositioning Scanner has a travel range of up to 187.5μm, and... -
Page 7: Product Features
This product can also be customized according to the needs. P17.XY200 is mainly used in biotechnology, interferometry, quality detection, optical detection, nanometer positioning, microscopy and imaging, image processing and other fields, with a good development prospect. -
Page 8: Operating Environment
P17.XY200 Piezo Nanopositioning Scanner User Manual The identification of the labels on the wires of P17.XY200 is as follows: Model Motion direction Function Label PZT Drive Senser output P17.XY200 PZT Drive Senser output Table1.P17.XY200 Wire Identification and Motion Direction 4. Operating environment A clean, dustfree and non-corrosive environment Operating temperature : -20~80℃... - Page 9 1. Ensure that the installation plane is relatively flat. 2. Use M4 to mount P17.XY200 on the mounting surface directly and tighten it. 3. Grounding protection for connection, as shown below. Cable Ground protection Safety washer Screw connector Flat washer Platform FIG.
-
Page 10: Load
When mounting the load, ensure that the load quality is less than the maximum load capacity of P17.XY200, and try to mount the load in the center of the moving surface. The correct position to mount the load is shown below. - Page 11 It is forbidden to mount the load on one side of the moving platform, which will cause serious damage to the product, as shown in the figure below. FIG.7 Do not mount long loads on one side of the platform Excessive length of screws selected in the fastening and connecting process will lead to failure in installation or leakage of bolts, which will expose the product and scratch the product, affecting the motion accuracy of the product.
-
Page 12: Operating
Avoid stretching and bending cables. Use the dedicated cable provided by CoreMorrow to connect P17.XY200 and the controller. Do not connect via an extension cable casually, if you need a longer cable, please contact CoreMorrow. -
Page 13: Transportation And Inspection
150V). 5.After use, please carry out voltage reset operation. Please take light steps when P17.XY200 in operation, do not knock the product, so as not to affect the use of the product or even damage the product. In order to achieve better motion precision of P17.XY200, it is recommended to use our company's supporting controller. -
Page 14: Open-Box Inspection
P17.XY200 Piezo Nanopositioning Scanner User Manual 6.2 Open-Box Inspection Inspection content: Before opening the package, please check the outer packing carefully to see if there is any breakage, wetting, dampness, deformation, etc. Please check the completeness of package contents one by one according to the supply contract and packing list. -
Page 15: Daily Maintenance
Table 2 FAQ and solutions If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 16: Disposal
In order to fulfill our responsibility as a product manufacturer, we will dispose all old equipments on the market in an environmentally friendly manner. If you have equipment that cannot be disposed, you can ship it to CoreMorrow. Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China Tel: +86-451-86268790 8. -
Page 17: Customer Service
The bridge connection mode and pin definition of strain gauge are as follows: Note: The open loop product only has drive connector, no sensor connector. FIG. 12 Definition of Sensor Connector 9.Customer Service If you have questions about the products you are currently using, please let us know the following information: Product model and relevant number The controller model... -
Page 18: Contact Us
P17.XY200 Piezo Nanopositioning Scanner User Manual 10.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
