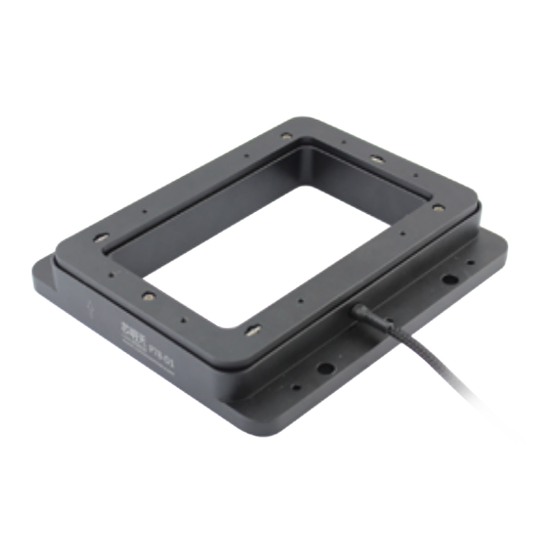

- Page 1 P78 Piezo Z Microscope Scanner User Manual Version: V1.0 This document describes the following products: ■ P78.Z100S/ ■ P78.Z200S/K ■ P78.Z300S/K...
- Page 2 DECLARATION This user manual is applicable to P78 Piezo Z Microscope Scanner, for your smooth and correct use of this product, please read this manual carefully before using it. Please follow the instructions in the installation and use process. Improper operation may cause injury to the operator and/or...
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
2. Safety Guide P78 Piezo Z Microscope Scanner is designed with the most advanced technology and safety standards for your own safety and the correct use of the product, please observe the following points when in use. A change in temperature and pressure will charge the piezoelectric actuator, and... -
Page 6: Product Overview
P78 Piezo Z Microscope Scanner has the following advantages: High performance piezo stack: P78 Piezo Z Microscope Scanner is driven by a highly reliable ceramic actuator with a fully insulated structure, so its performance and service life are far better than the traditional actuator. -
Page 7: Product Features
P78 Piezo Z Microscope Scanner has a travel range of up to 300μm in Z, and features fast response speed, no mechanical friction, high repeatable positioning accuracy, easy to operate, so it can meet different applications. This product can also be customized according to the needs. -
Page 8: Operating Environment
P78 Piezo Z Microscope Scanner User Manual 4. Operating environment A clean, dustfree and non-corrosive environment Operating temperature : -20~80℃ Relative humidity : <60% Recommended voltage range is 0~120V for long-term use and lifetime 5. Installation and operation Safety check should be carried out before installation, such as whether the connection wire is damaged or broken, whether the drive power supply is grounded, etc. - Page 9 1. Ensure that the installation plane is relatively flat. 2. Use M4 or M6（P78.Z100）to mount P78 on the mounting surface directly and tighten 3. Grounding protection for connection, as shown below: Cable Ground protection Safety washer Screw connector Flat washer Platform FIG.
-
Page 10: Load
P78 Piezo Z Microscope Scanner User Manual 5.2 Load When mounting the load, ensure that the load quality is less than the maximum load capacity of P78, and try to mount the load in the center of the moving surface. - Page 11 It is forbidden to mount the load on one side of the moving platform, which will cause serious damage to the product, as shown in the figure below. FIG.7 Do not mount long loads on one side of the platform Excessive length of screws selected in the fastening and connecting process will lead to failure in installation or leakage of bolts, which will expose the product and scratch the product, affecting the motion accuracy of the product.
-
Page 12: Operating
Avoid stretching and bending cables. Use the dedicated cable provided by CoreMorrow to connect P78 and the controller. Do not connect via an extension cable casually, if you need a longer cable, please contact CoreMorrow 5.3 Operating... -
Page 13: Transportation And Inspection
After the above information is confirmed, relevant controller operations can be carried out: 1.Please read the user manual of the controller carefully before operation, and then start the controller. 2.Set the controller' output voltage to zero first. 3.Check no abnormal phenomenon, then input voltage value (via keyboard or analog control) according to specified input voltage range. -
Page 14: Open-Box Inspection
P78 Piezo Z Microscope Scanner User Manual strong collision, extrusion, irregular placement and other improper behaviors should be avoided as far as possible. 6.2 Open-Box Inspection Inspection content: Before opening the package, please check the outer packing carefully to see if there is any breakage, wetting, dampness, deformation, etc. -
Page 15: Maintenance And Treatment
Table 1 FAQ and solutions If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 16: Daily Maintenance
In order to fulfill our responsibility as a product manufacturer, we will dispose all old equipments on the market in an environmentally friendly manner. If you have equipment that cannot be disposed, you can ship it to CoreMorrow. Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin, Heilongjiang... -
Page 17: Parameter
8. Parameter 8.1 Technical data Models P78.Z100S/K P78.Z200S/K P78.Z300S/K Unit Active axes Travel range（0~120V） μm Travel range（0~150V） 187.5 262.5 μm Unloaded resonant frequency Load capacity Capacitance 14.4 μF Material Aluminum Aluminum Aluminum Note: The above data tolerance is ±20% Table2 P78 Technical data 8.2 Drawing THRU Cable length:1.5m... -
Page 18: Driving And Sensor Connector
P78 Piezo Z Microscope Scanner User Manual 8.3 Driving and Sensor Connector The driving connector adopts a single core lemo connector. The model is LEMO era.00.250. CTL as shown below: FIG.11 Single Core LEMO The sensor connector adopts the four-core lemo, model LEMO ERA.0s.304.CLL, as showne below: FIG.12 Four-core LEMO... -
Page 19: Customer Service
Computer operating system that installs supporting software 10.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: 0451-86268790 Fax: 0451-86267847 Email: info@coremorrow.com Website: www.coremorrow.com Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin, Heilongjiang Province, China CoreMorrow Official and CTO WeChat are below:...
