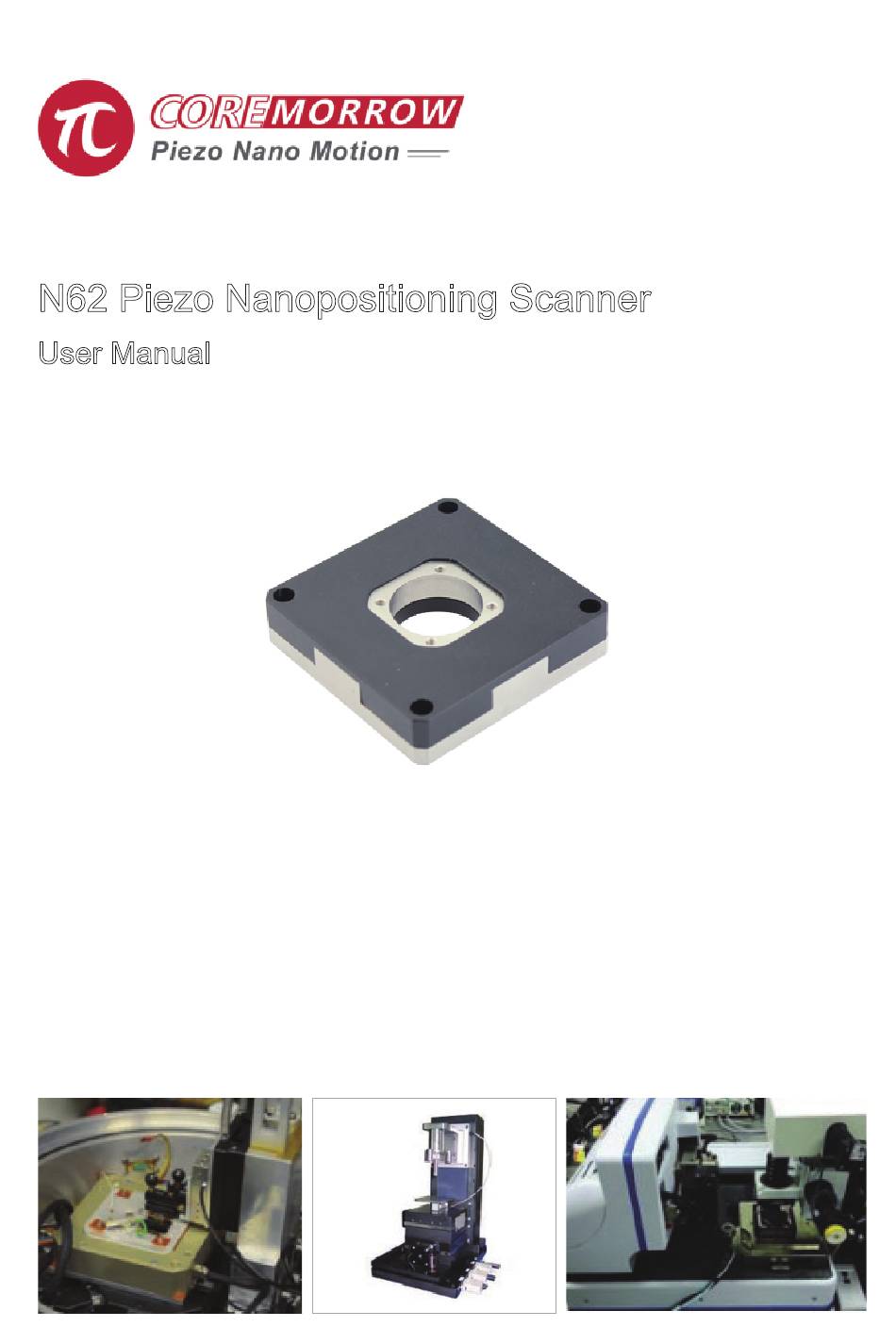

- Page 1 N62 Piezo Nanopositioning Scanner User Manual Version: V1.0 This document describes the following products: ■ N62.XY20S ■ N62.XY20S...
- Page 2 With the continuous development and innovation of technology, CoreMorrow will timely add the latest information to the manual as required. If you need, please contact us, or to our website www.coremorrow. com for download, we apologize for any inconvenience caused to you.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
2. Safety Guide N62 Piezo Nanopositioning Scanner is designed with the most advanced technology and safety standards for your own safety and the correct use of the product, please observe the following points when in use. A change in temperature and pressure will charge the piezoelectric actuator, and the actuator will remain energized for a period of time when it is disconnected from the controller,So the operator should pay attention to when in use. -
Page 6: Product Overview
N62 Piezo Nanopositioning Scanner has a travel range of up to 22μm/axis in X Y, and can move in X Y at the same time, the high flexibility ensures that XY dimensional motion... -
Page 7: Product Features
Closed-loop strain gauge sensor, high positioning accuracy. Used for high frequency. 3.3 Motion direction FIG.1 The Motion Direction of N62 Piezo Nanopositioning Scanner The identification of the labels on the wires of N62 is as follows: Model Motion direction Function... -
Page 8: Operating Environment
M3 hole for mounting M2.5 hole for grounding FIG.2 N62 Installation diagram 1.Ensure that the installation plane is relatively flat. 2.Use M3 screws to mount N62 on the mounting surface directly and tighten it. 3.Grounding protection for connection, as shown below. -
Page 9: Load
When mounting the load, ensure that the load quality is less than the maximum load capacity of N62, and try to mount the load in the center of the moving surface. The correct position to mount the load is shown below. - Page 10 N62 Piezo Nanopositioning Scanner User Manual FIG.5 The load is applied to the center of the moving surface For the protection of the product, we do not recommend that the load is too high. If a high load must be used, please appropriately low the position of the center of gravity of the load.
- Page 11 Excessive length of screws selected in the fastening and connecting process will lead to failure in installation or leakage of bolts, which will expose the product and scratch the product, affecting the motion accuracy of the product. Short bolts will lead to insufficient compactness of the connection and easy looseness, which will damage the internal structure of the product during operation.
-
Page 12: Operating
150V). 5.After use, please carry out voltage reset operation. Please take light steps when N62 in operation, do not knock the product, so as not to affect the use of the product or even damage the product. In order to achieve better motion precision of N62, it is recommended to use our company's supporting controller. -
Page 13: Transportation And Inspection
Do not remove the ground protection during operation. If it needs to be temporarily removed, please reconnect the ground protection before restart. The driving voltage shall not exceed the voltage(150V) range of N62. If any abnormal noise or oscillation occurs during use, turn off the power immediately and check the parameter setting. -
Page 14: Maintenance And Treatment
N62 Piezo Nanopositioning Scanner User Manual Attention: Please handle with care when opening the package, so as not to knock against the product and cause permanent damage to it. Please do not use heavy tools or rough way to open. -
Page 15: Daily Maintenance
If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 16: Parameter
N62 Piezo Nanopositioning Scanner User Manual 8. Parameter 8.1 Technical data Models N62.XY20S/K Unit Active axis Travel range（0~120V） ±8 μm Travel range（0~150V） ±10 μm Unloaded resonant frequency 2000 Load capacity Capacitance μF/axis Material Steel, Aluminum Note：The tolerances of the above data are all ±20% Table3. -
Page 17: Driving And Sensor Connector
8.3 Driving and Sensor Connector The driving connector adopts a single core lemo connector. The model is LEMO era.00.250. CTL as shown below: FIG.11 Single Core LEMO The sensor connector adopts the four-core lemo, model LEMO ERA.0s.304.CLL, as showne below: FIG.12 Four-core LEMO Note：Open-loop products have only PZT drive line, no sensor line. -
Page 18: Customer Service
N62 Piezo Nanopositioning Scanner User Manual 9.Customer Service If you have questions about the products you are currently using, please let us know the following information: Product model and relevant number The controller model Software driver version Computer operating system that installs supporting software 10.Contact us...
