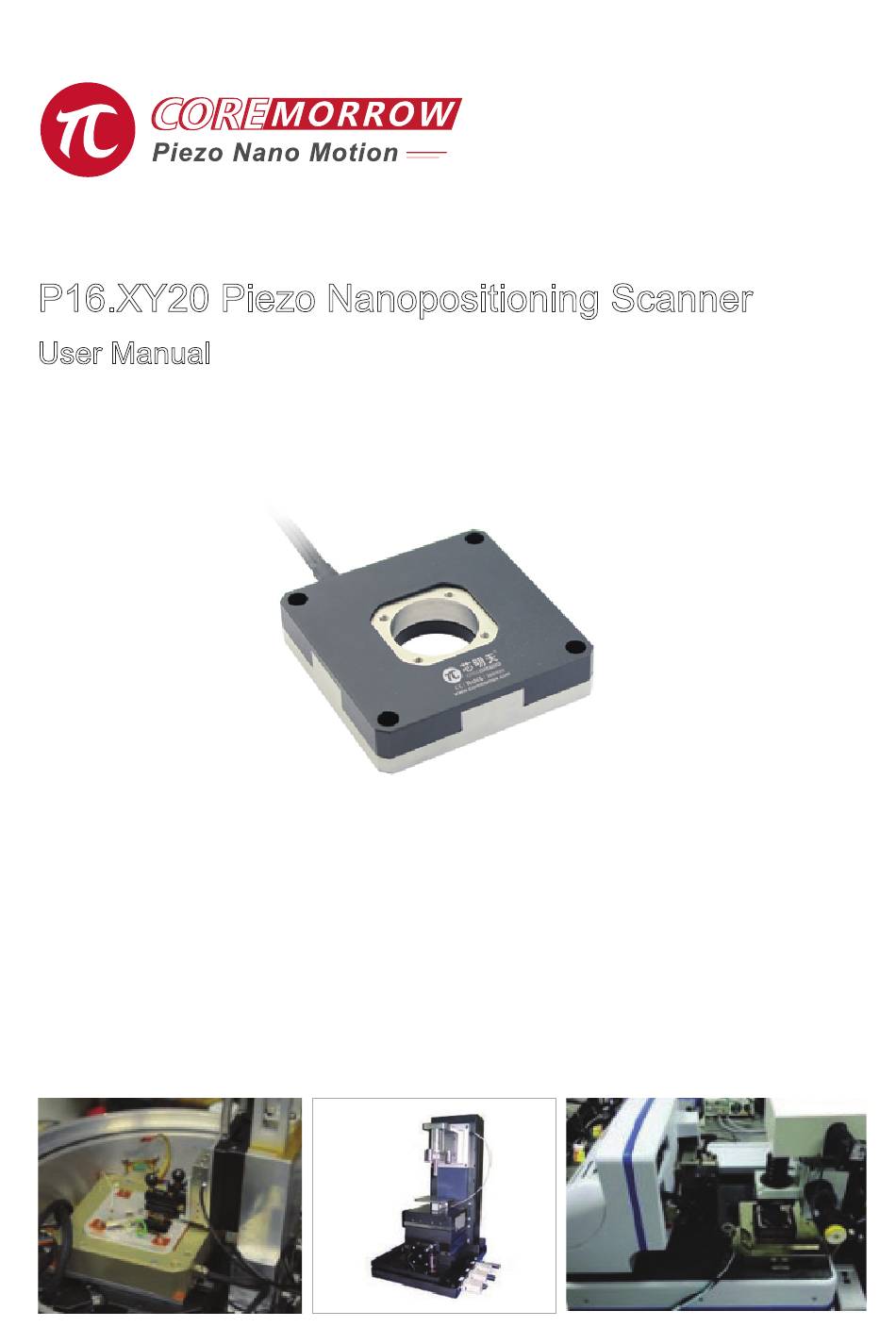

- Page 1 P16.XY20 Piezo Nanopositioning Scanner User Manual Version: V1.0 This document describes the following products: ■ P16.XY20S ■ P16.XY20K...
- Page 2 With the continuous development and innovation of technology, CoreMorrow will timely add the latest information to the manual as required. If you need, please contact us, or to our website www.coremorrow. com for download, we apologize for any inconvenience caused to you.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
Do not disassemble the product to avoid damage. Avoid stretching and bending the cable interface to prevent damage to the cable. Use the dedicated cable provided by CoreMorrow to connect P16.XY20 piezo nanopositioning scanner to controller. Do not connect via an extension cable casually, if you need a longer cable, please... -
Page 6: Product Overview
P16.XY20 Piezo Nanopositioning Scanner User Manual 3. Product Overview 3.1 Product Introduction P16.XY20 piezo nanopositioning scanner has the following advantages: High performance piezo stack: P16.XY20 piezo nanopositioning scanner is driven by a highly reliable ceramic actuator with a fully insulated structure, so its performance and service life are far better than the traditional actuator. -
Page 7: Product Features
positioning accuracy, easy to operate, so it can meet different applications. This product can also be customized according to the needs. P16.XY20 is mainly used in biotechnology, interferometry, quality detection, optical detection, nanometer positioning, microscopy and imaging, image processing and other fields, with a good development prospect. -
Page 8: Operating Environment
P16.XY20 Piezo Nanopositioning Scanner User Manual 4. Operating environment A clean, dustfree and non-corrosive environment Operating temperature : -20~80℃ Relative humidity : <60% Recommended voltage range is 0~120V for long-term use and lifetime 5. Installation and operation Safety check should be carried out before installation, such as whether the connection wire is damaged or broken, whether the drive power supply is grounded, etc. -
Page 9: Load
Cable Ground protection Safety washer Screw connector Flat washer Platform FIG. 3 Grounding protection diagram 4.Mounting the load and tighten it properly to ensure the positioning accuracy. 5.Connect the connector with the corresponding controller according to the identification. The wiring mode of LEMO connector is shown as below Label for sensor output Sensor output PZT drive output... - Page 10 P16.XY20 Piezo Nanopositioning Scanner User Manual FIG.5 The load is applied to the center of the moving surface For the protection of the product, we do not recommend that the load is too high. If a high load must be used, please appropriately low the position of the center of gravity of the load.
- Page 11 Excessive length of screws selected in the fastening and connecting process will lead to failure in installation or leakage of bolts, which will expose the product and scratch the product, affecting the motion accuracy of the product. Short bolts will lead to insufficient compactness of the connection and easy looseness, which will damage the internal structure of the product during operation.
-
Page 12: Operating
Avoid stretching and bending cables. Use the dedicated cable provided by CoreMorrow to connect P16.XY20 and the controller. Do not connect via an extension cable casually, if you need a longer cable, please contact CoreMorrow. -
Page 13: Transportation And Inspection
Notes： Do not remove the ground protection during operation. If it needs to be temporarily removed, please reconnect the ground protection before restart. The driving voltage shall not exceed the voltage(150V) range of P16.XY20. If any abnormal noise or oscillation occurs during use, turn off the power immediately and check the parameter setting. -
Page 14: Maintenance And Treatment
P16.XY20 Piezo Nanopositioning Scanner User Manual Attention: Please handle with care when opening the package, so as not to knock against the product and cause permanent damage to it. Please do not use heavy tools or rough way to open. Please do not discard all the packaging materials which are needed for repair and return. -
Page 15: Daily Maintenance
If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 16: Connector
P16.XY20 Piezo Nanopositioning Scanner User Manual 8. Connector 8.1 Driving and Sensor Connector The driving connector adopts a 1-contact lemo connector. The model is LEMO ERA.00.250. CTL as shown below: FIG.10 1-contact LEMO The sensor connector adopts the 4-contacts lemo, model LEMO ERA.0s.304.CLL, as showne below: FIG.11 4-contacts LEMO Note：Open-loop products have only PZT drive line, no sensor line. -
Page 17: Customer Service
Computer operating system that installs supporting software 10.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Fax: +86-451-86267847 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
