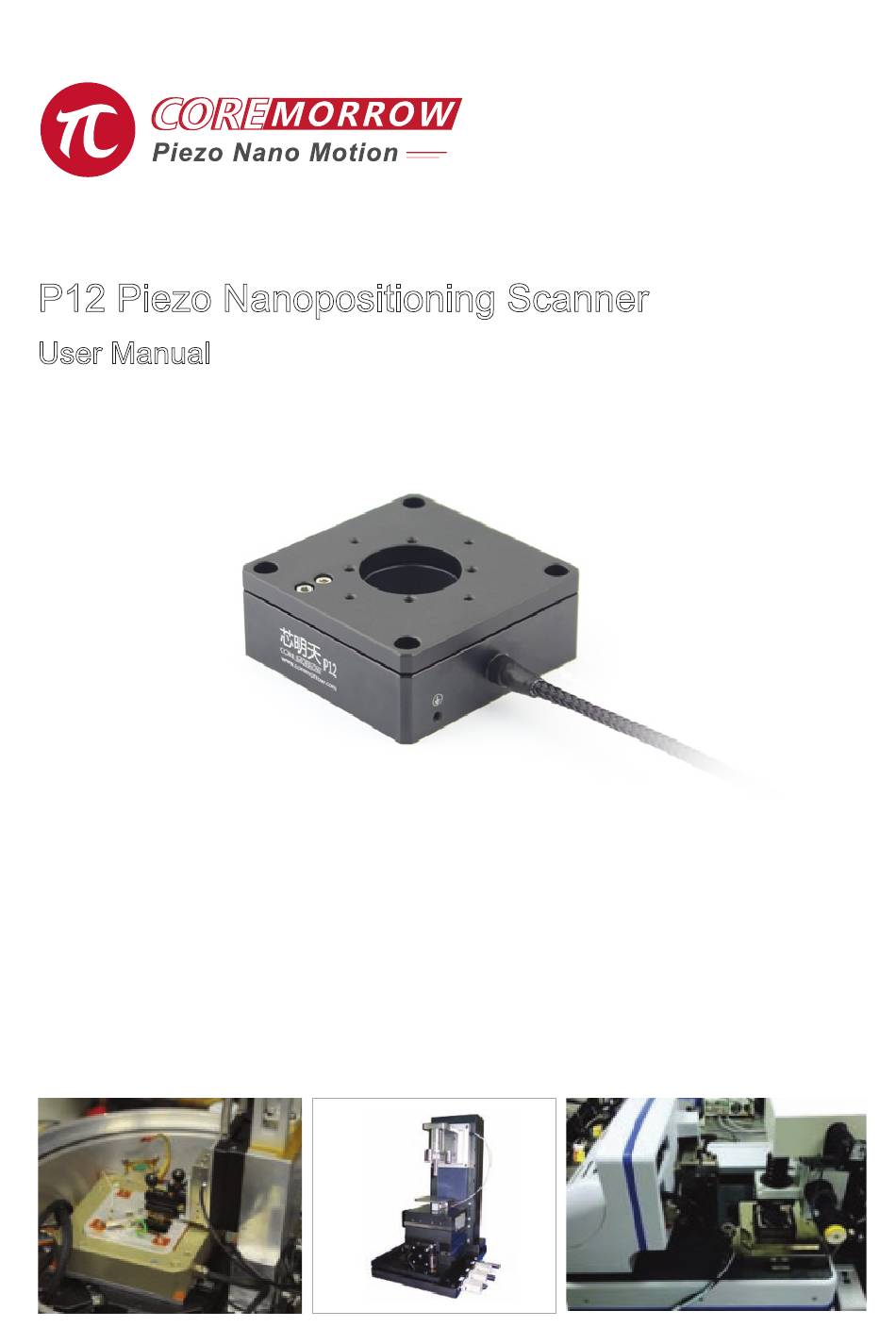

- Page 1 P12 Piezo Nanopositioning Scanner User Manual Version: V1.0 This document describes the following products: ■ ■ ■ P12.X100S/K P12.Z100S/K P12.Z200S/K ■ ■ ■ P12.Z300S/K P12.XY100S/K P12.XZ100S/K ■ P12.XYZ100S/K...
- Page 2 With the continuous development and innovation of technology, CoreMorrow will timely add the latest information to the manual as required. If you need, please contact us, or to our website www.coremorrow. com for download, we apologize for any inconvenience caused to you.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
Do not disassemble the product to avoid damage. Avoid stretching and bending the cable interface to prevent damage to the cable; Use the dedicated cable provided by CoreMorrow to connect P12 Piezo Nanopositioning Scanner to controller. Do not connect via an extension cable casually, if you need a longer cable, please... -
Page 6: Product Overview
P12 Piezo Nanopositioning Scanner User Manual 3. Product Overview 3.1 Product Introduction P12 Piezo Nanopositioning Scanner has the following advantages: High performance piezo stack: P12 Piezo Nanopositioning Scanner is driven by a highly reliable ceramic actuator with a fully insulated structure, so its performance and service life are far better than the traditional actuator. -
Page 7: Product Features
300μm/axis in Z, P12 can do three dimensional motion at the same time,the high flexibility ensures that XYZ three dimensional motion is uncoupled ,and features fast response speed,no mechanical friction, high repeatable positioning accuracy, easy to operate, so it can meet different applications. This product can also be customized according to the needs. - Page 8 P12 Piezo Nanopositioning Scanner User Manual P12.XY100 P12.XZ100 FIG. 1 The Motion Direction of P12 Piezo Nanopositioning Scanner The identification of the labels on the wires of P12 is as follows: Model Motion direction Function Label PZT Drive P12.X Senser output PZT Drive P12.Z Senser output...
-
Page 9: Operating Environment
Model Motion direction Function Label PZT Drive Senser output P12.XZ PZT Drive Senser output PZT Drive Senser output PZT Drive P12.XYZ Senser output PZT Drive Senser output Table1. P12 Wire Identification and Motion Direction 4. Operating environment A clean, dustfree and non-corrosive environment Operating temperature : -20~80℃... -
Page 10: Installation And Precautions
P12 Piezo Nanopositioning Scanner User Manual 5.1 Installation and Precautions Installation diagram of P12 is as follows: Motion surface M2.5/M3 hole for load mounting M2.5 hole for grounding 4×M3 hole for mounting FIG.2 P12 Installation diagram 1. Ensure that the installation plane is relatively flat. 2. -
Page 11: Load
4.Mounting the load and tighten it properly to ensure the positioning accuracy. 5.Connect the connector with the corresponding controller according to the identification. The wiring mode of LEMO connector is shown as below: Label for sensor output Sensor output PZT drive output Label for PZT drive FIG.4 Connector diagram 5.2 Load... - Page 12 P12 Piezo Nanopositioning Scanner User Manual For the protection of the product, we do not recommend that the load is too high. If a high load must be used, please appropriately low the position of the center of gravity of the load.
- Page 13 compactness of the connection and easy looseness, which will damage the internal structure of the product during operation. We recommend using the connection as shown below: FIG. 8 The correct bolt connection Please do not connect in this way as shown below: FIG.
-
Page 14: Operating
Avoid stretching and bending cables. Use the dedicated cable provided by CoreMorrow to connect P12 and the controller. Do not connect via an extension cable casually, if you need a longer cable, please contact CoreMorrow. -
Page 15: Transportation And Inspection
Notes： Do not remove the ground protection during operation. If it needs to be temporarily removed, please reconnect the ground protection before restart. The driving voltage shall not exceed the voltage range of P12. If any abnormal noise or oscillation occurs during use, turn off the power immediately and check the parameter setting. -
Page 16: Maintenance And Treatment
P12 Piezo Nanopositioning Scanner User Manual Attention: Please handle with care when opening the package, so as not to knock against the product and cause permanent damage to it. Please do not use heavy tools or rough way to open. Please do not discard all the packaging materials which are needed for repair and return. -
Page 17: Daily Maintenance
If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 18: Connector
P12 Piezo Nanopositioning Scanner User Manual 8. Connector 8.1 Driving and Sensor Connector The driving connector adopts a 1-contact lemo connector. The model is LEMO era.00.250. CTL as shown below: FIG.10 1-contact LEMO The sensor connector adopts the 4-contacts lemo, model LEMO ERA.0s.304.CLL, as showne below: FIG.11 4-contacts LEMO Note：Open-loop products have only PZT drive line, no sensor line. -
Page 19: Customer Service
Computer operating system that installs supporting software 10.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
