Installation Guide

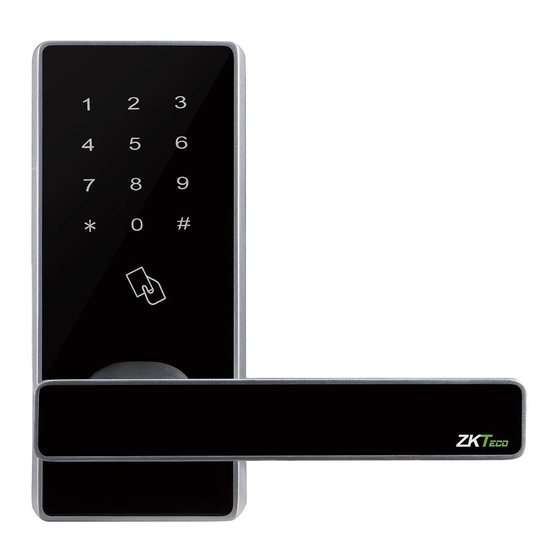

DL30B Digital Lock with Voice Guide Feature
Version: 1.1
Date: July,2017

Advertisement

Table of Contents
loading

Related Manuals for ZKTeco DL30B

Summary of Contents for ZKTeco DL30B

  • Page 1 Installation Guide DL30B Digital Lock with Voice Guide Feature Version: 1.1 Date: July,2017...

  • Page 2: Before Installation

    Before Installation Diagram...

  • Page 3: Packing List

    Packing List Mounting Hardware Package Mounting Hardware Package for door thickness of 30-38mm for door thickness of 39-46mm 56mm 6 4mm 25mm 35mm 20mm 30mm...

  • Page 4: Door Preparation

    Door Preparation 1. Check the door thickness and prepare the corresponding mounting hardware package. Door Thickness H Spindle Length J Screw Length M Screw Length L Screw Length (mm) (mm) (mm) (mm) (mm) 30~38 39~46 47~54 55~60 Note: The standard lock includes 2 mounting hardware packages only, which are used for the door thickness of 30-38mm and 39-46mm separately.
  • Page 5 3. Check the required backset (60mm or 70mm). 70mm 60mm Note 1: Installation template has the backset Note 2: The latch has two backset options: 60mm and options of both 60mm and 70mm. 70mm, please choose either one as required.
  • Page 6 Remarks 1. New lock is configured to grant any password or card access. 2. The lock is equipped with mechanical keys for manual unlocking. Remove mechanical keys from the package and keep them in a safe place. 3. To power up the lock, four alkaline AA batteries (not included) are required. Non-alkaline and rechargeable batteries are NOT recommended.

  • Page 7: Installation

    Installation 1. Drill holes on the door. 2. Install the latch (D). center line of the handle desired handle height Note 1: Align the template along the vertical center line of the latch(D) at the desired handle height, and tape it to the door. Note 2: Mark the holes first, and then start drilling.
  • Page 8 3. Install outdoor unit (B) with gasket (C) and spindle(H) on the door. Correct Position: T he small triangle must be vertically upward. Incorrect position...
  • Page 9 4. Install mounting plate (I) with gasket (C) on the door. 5. Install indoor unit (K). Note : Push cable into the hole first.

  • Page 10: Insert Batteries

    6. Insert batteries. 7. Mark and drill holes for the strike. (5/64") 12mm (15/32") 21mm (53/64") 35mm (35/64") (1-3/8") 8. Test the lock by rotating the back handle and using the mechanical key (A). Note : When the door is l ocked and the clutch is idle, the front handle can be turned, but the door will remain locked.
