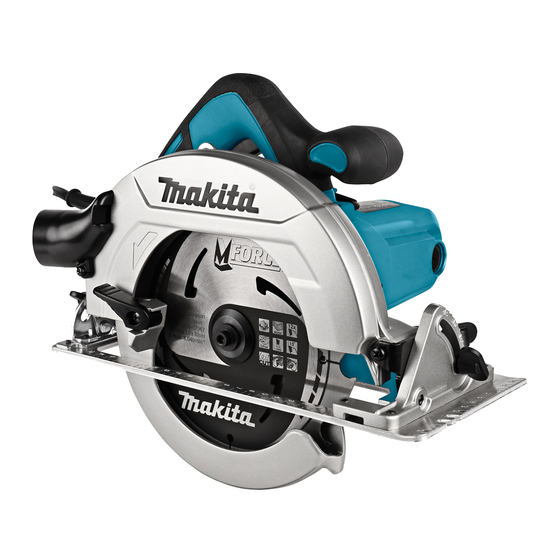

Makita HS7611 Instruction Manual

Hide thumbs Also See for HS7611:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
Circular Saw
HS7611
DOUBLE INSULATION
Read before use.

Advertisement

Table of Contents
loading

Related Manuals for Makita HS7611

Summary of Contents for Makita HS7611

  • Page 1 INSTRUCTION MANUAL Circular Saw HS7611 DOUBLE INSULATION Read before use.

  • Page 2: Specifications

    SPECIFICATIONS Model: HS7611 Blade diameter 185 - 190 mm Max. Cutting depth at 0° 63 - 65 mm at 45° bevel 44 - 45 mm No load speed 5,500 min Overall length 311 mm Net weight 3.9 kg Safety class •...

  • Page 3: General Power Tool Safety Warnings

    Personal Safety SAFETY WARNINGS Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or General power tool safety warnings under the influence of drugs, alcohol or med- ication.

  • Page 4: Circular Saw Safety Warnings

    Power tool use and care Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off.
  • Page 5 Support large panels to minimise the risk of Never force the saw. Push the saw forward at a speed so blade pinching and kickback. Large panels tend that the blade cuts without slowing. Forcing the saw can to sag under their own weight. Supports must be cause uneven cuts, loss of accuracy, and possible kickback.

  • Page 6: Functional Description

    Before setting the tool down after completing a FUNCTIONAL cut, be sure that the guard has closed and the blade has come to a complete stop. DESCRIPTION Never attempt to saw with the circular saw held upside down in a vise. This is extremely dangerous and can lead to serious accidents.

  • Page 7: Switch Action

    Be sure the circular saw blade is CAUTION: installed with teeth pointing up at the front of the tool. Use only the Makita wrench to CAUTION: ► 1 . Cutting line (0° position) 2. Cutting line (45° install or remove the circular saw blade.
  • Page 8 For tool with the ring ► 1 . Hex wrench 2. Shaft lock 3. Hex bolt 4. Outer flange 5. Loosen 6. Tighten Remove the hex bolt and outer flange. Turn the lever to open the blade guard. ► 1 . Hex bolt 2. Outer flange 3. Circular saw blade 4.
  • Page 9 For tool with the ring Connecting a vacuum cleaner Optional accessory When you wish to perform clean cutting operation, 15.88 connect a Makita vacuum cleaner to your tool using the dust nozzle. If your circular saw has a long lever (country spe- cific), replace it with the short lever supplied with the dust nozzle. ► 1 . Mounting shaft 2. Inner flange 3. Circular saw blade 4. Outer flange 5.

  • Page 10: Operation

    Hold the tool firmly. The tool is provided with both a front Install the dust nozzle on the tool using the screw. grip and rear handle. Use both to best grasp the tool. If both hands are holding saw, they cannot be cut by the circular saw blade. Set the base on the workpiece to be cut without the circular saw blade making any contact.

  • Page 11: Replacing Carbon Brushes

    ► 1 . Brush holder cap To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES ► 1 . Triangular rule 2. Base 3. Adjusting screw 4. Clamping screw...
  • Page 12 NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country. Jan-Baptist Vinkstraat 2, Makita Europe N.V. 3070 Kortenberg, Belgium 3-11-8, Sumiyoshi-cho, Makita Corporation Anjo, Aichi 446-8502 Japan 885619-220 www.makita.com...
