BRUKSANVISNING & UNDERHÅLLSHANDBOK BOX
Barbas önskar dig många mysiga kvällar med din nya apparat
Läs den noga innan du använder apparaten och förvara den på ett säkert ställe!
Versionsnummer: 03-343822
Datum: 29-05-2019
Multilizer PDF Translator Free version - translation is limited to ~ 3 pages per translation.
Det här dokumentet är en viktig del av din apparat.
55
Serienummer:
Produktionsdatum:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOX 55 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for barbas BOX 55

Summary of Contents for barbas BOX 55

  • Page 1 Multilizer PDF Translator Free version - translation is limited to ~ 3 pages per translation. BRUKSANVISNING & UNDERHÅLLSHANDBOK BOX Barbas önskar dig många mysiga kvällar med din nya apparat Det här dokumentet är en viktig del av din apparat. Läs den noga innan du använder apparaten och förvara den på ett säkert ställe!
  • Page 2 Multilizer PDF Translator Free version - translation is limited to ~ 3 pages per translation. Multilizer PDF Translator Free version - translation is limited to ~ 3 pages per translation.
  • Page 3 Tillverkarens namn, registrerade firmanamn eller Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; Nederländerna registrerade varumärke och kontaktadress enligt vad som krävs enligt artikel 11 (5) I tillämpliga fall, namn och kontaktadress för den Ej tillämpligt...
  • Page 4 Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5)

  • Page 5: Table Of Contents

    BOX 55 CONTENTS Page 1. INTRODUCTION ..................2. SAFETY ...................... 3. OPERATION ....................4. USING THE APPLIANCE FOR THE FIRST TIME ........5. USE ......................6. FUEL ......................7. MAINTENANCE ..................8. FREQUENTLY ASKED QUESTIONS ............
  • Page 6 BOX 55 Instructions for use...

  • Page 7: Introduction

    BOX 55 INTRODUCTION Congratulations on your purchase of this modern Barbas appliance. This quality product will provide you with many years of enjoyment due to the fl ame effect and warmth that it provides. This appliance is recommended as suitable for use in smoke control areas when burning wood logs.

  • Page 8: Safety

    Ensure that the room in which the appliance is situated has adequate ve ntilation. It is essential that the appliance, the fl ue and combustion air supply are cleaned and inspected annually by a Barbas dealer/specialist. The safe operation of the appliance will thus remain guaranteed. Instructions for use...
  • Page 9 BOX 55 The appliance must never be used with the door open or the door glass removed. Wood and wood briquettes may be stoked in the appliance. Coals can’t be burned in the appliance. Avoid over-loading (white burning glow), caused, for example, by lengthy burning with a fully open primary air vent (combustion ai r supply slider all the way to “...

  • Page 10: Operation

    BOX 55 OPERATION Figure 1: Operation Box 1 Handle 2 Ceramic heat-proof glass 3 Grate 4 Ashtray 5 Combustion air-supply slider (Combined operation for the primary, secondary and tertiary combustion air-supply) 6 Inlet opening (2x) combustion air from living-room, if a direct outside air supply is not connected.

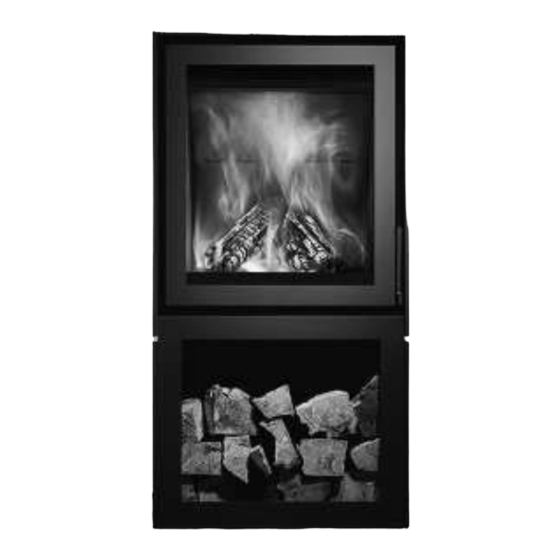

  • Page 11 BOX 55 Figure 2: Operation Box with log store 1 Handle 2 Ceramic heat-proof glass 3 Grate 4 Ashtray 5 Combustion air-supply slider (Combined operation for the primary, secondary and tertiary combustion air-supply) 6 Inlet opening (2x) combustion air from living-room, if a direct outside air supply is not connected.

  • Page 12: Using The Appliance For The First Time

    BOX 55 USING THE APPLIANCE FOR THE FIRST TIME GENERAL Allow your home to dry properly, after you have had your chimney breast modifi ed or newly built. Walls which have not been allowed to dry properly are a magnet for dus t such as any smoke particles created when stoking up the appliance or suddenly opening the door.
  • Page 13 BOX 55 4.3 INSPECTION OF THE APPLIANCE BEFORE FIRST USE Check all available functions before using the appliance for the fi rst time . • Check the opening and closing operation of the door. Turn the handle all the way down: Door is locked.
  • Page 14 BOX 55 • Check whether the 2 baffl e plates are located correctly in the supports. • Check the operation of the slider for the regulation of the combustion air intake (middle be low the window) . • Check whether the ashtray is completely empty.

  • Page 15: Use

    BOX 55 5.1 VENTILATION If wood is to burn, it needs air. For each kilo of wood that you put on the appliance (door closed), 10 - 15 m of extra air is needed. That means about 35 m per hour! Depending on how the appliance has been installed, the combustion air will either be drawn directly from outside or from the living room itself.
  • Page 16 BOX 55 5.3 INSTRUCTIONS WHILE STOKING Using the air supply slider you can adjust the air supply for further combustion. Make sure the appliance burns quietly. Note: Once you have got the appliance going, leave the air supply slider in the centre position for optimal combustion.
  • Page 17 BOX 55 Control range of primary air supply (by grate) Control range of secondary and tertiary air supply Combustion air supply slider Centre position We recommend that you maintain a substantial layer of ash (2 - 3 cm). This not only forms a protective layer for the base of the appliance but also signifi...
  • Page 18 BOX 55 Ventilation When using the appliance, ensure a good supply of fresh air, particularly if the combus- tion air is drawn from the room itself. Turn on the fl ue gas fan if the fl ue is fi tted with one.
  • Page 19 BOX 55 INCREASE THE FLUE DRAUGHT If there is too much fl ow resistance in the chimney, causing insuffi cent fl ow of of the fl ue gasses, one can in crease the chimney draught. To do this, remove the upper baffl e from the appliance and detach the back part of the baffl e by moving this part back and fort h until it breaks.
  • Page 20 BOX 55 5.7 GENERAL HEATING TIPS • Burn dry wood only. Damp wood not only burns poorly, it causes more pollution in the appliance (window), the chimney, your room (when opening the door of the appliance, for instance) and the environment. Wood can only be classifi ed as dry if it has been stored under a Dutch barn for at least two years (not covered with plastic).
  • Page 21 BOX 55 5.8 OUTPUT In practice, combustion is all about loss. This entails: • Loss through excess heat leaving the chimney, rather than going into the room. • Loss th rough insuffi cient combustion, such as CO (carbon monoxide) and soot particles.

  • Page 22: Fuel

    If this happens, there is a risk of fi re. It may also damage your appliance and chimney. BARBAS will not assume liability for damage caused by overheating. Burning one layer of wood can lead to varying outputs. When used correctly, one load will burn in around 45 minutes.
  • Page 23 BOX 55 Per fi lling: (= for 45 minutes) Wood: 2 blocks each around 1.0 kg, length approx. 30 cm Briquettes: 2 blocks each around 0.75 kg Dimensions wood block: c. 30 cm long and 25 cm perimeter ê The maximum burning load is based on a nominal capacity of 9 kW and a effi...

  • Page 24: Maintenance

    BOX 55 MAINTENANCE • Emptying the ashtray • Regularly check how much ash is in the ashtray. • Make sure the ashtray is never more than ¾ full. If the ashtray is more than ¾ full, it can obstruc t the fl...
  • Page 25 BOX 55 • Paint Check annually, if necessary touch up with BARBAS heat-resistant paint (do not paint when the appliance is in use!) • Parts Individual parts for replacement/accessories are available from your BARBAS dealer Use only original parts • Modifi cations Introduced modifi...

  • Page 26: Frequently Asked Questions

    BOX 55 FREQUENTLY ASKED QUESTIONS How often should I have my chimney swept? At least once a year. If you use your appliance more than three times a week on average, have your chimney swept more often. Have the chimney swept by a recognised company.
  • Page 27 Can a wood-burning appliance/fi replace insert be connected to a central heating installation? The Barbas range does not have any appliances that can be connected to central heating installations. We do not advise attempting it!! How do I know if I’m heating correctly? Follow the instructions in this manual.
  • Page 28 BOX 55 Can I leave my appliance unattended? Only do this when the appliance is burning quietly, with just a little wood, with a closed door and with the combustion air supply slider in the centre position between “ + ” and “...
  • Page 29 BOX 55 Decomposition At moderate - high temperatures (150°C - 350°C), the decomposition process can be discerned. This is when the chemical structure of the fuel breaks down. This process involves the creation of volatile compounds such as carbon monoxide (CO), water vapour (H O) and methane (CH ).

  • Page 30: Technical Data

    BOX 55 TECHNICAL DATA Combustion: Measured in compliance with EN 13240 : 2001 and EN 13240 - A2 : 2004 Fuel Wood Nominal output 9 kW Effi ciency Emissions (dry, at 13% O , 273 K, 1013 hPa): Carbon monoxide (CO) 0.05%;...

  • Page 31: Warranty Terms

    1.1. If Barbas Bellfi res B.V. determines that the Barbas appliance you have purchased is defective as a result of a fl aw in t he construction or material, Barbas Bellfi res B.V. guarantees to repair or re place th e appliance free of charge, without chargi n g any costs for labour or spare parts.
  • Page 32 Article 5: Warranty period 5.1. This warranty will only be granted during the warranty period. 5.2. The body of the Barbas appliance is guaranteed for a period of 10 years against construction and/or material faults, starting from the moment of purchase.
  • Page 33 BOX 55 Instructions for use...
  • Page 34 BOX 55 Instructions for use...
  • Page 36 Your Barbas dealer 03 - 290519 - 343822...
