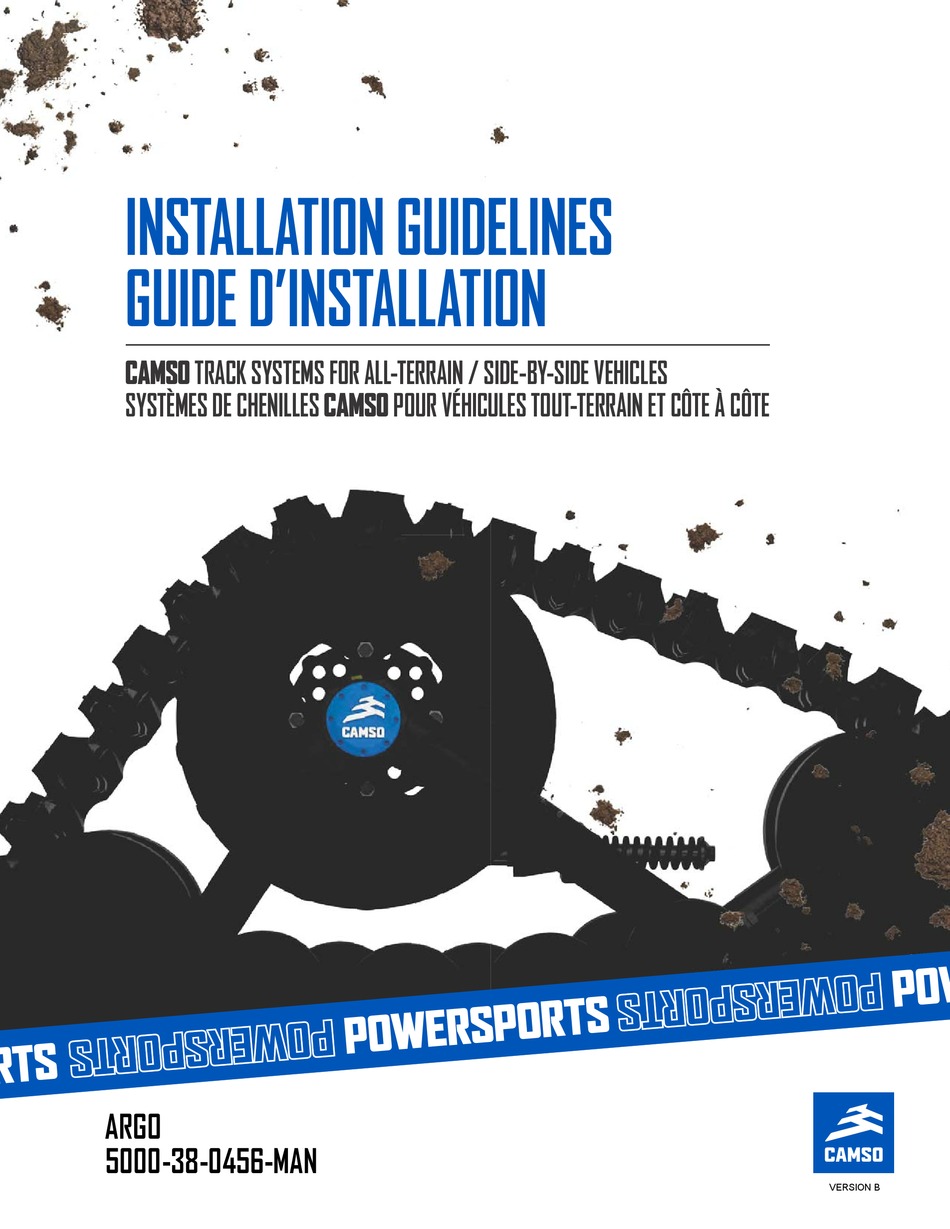

- Page 1 INSTALLATION GUIDELINES GUIDE D’INSTALLATION CAMSO TRACK SYSTEMS FOR ALL-TERRAIN / SIDE-BY-SIDE VEHICLES SYSTÈMES DE CHENILLES CAMSO POUR VÉHICULES TOUT-TERRAIN ET CÔTE À CÔTE ARGO 5000-38-0456-MAN VERSION B...
- Page 2 Track System which will not be covered under normal warranty. TECHNICAL SUPPORT If your dealer or distributor is unable to solve a problem related to the System, you may contact the Camso support team from Monday to Friday.
-
Page 3: Symbols And Signal Words
No matter where or in what conditions, get there and back safely with your Camso track systems. Ready to benefit from optimal traction, mobility, stability, and flotation? Let’s go make tracks! -
Page 4: Parts List
PARTS LIST CAUTION: Before beginning the installation, make sure that you have received all the components included in the parts lists below. ITEM PART # DESCRIPTION 1004-38-0581 FRONT BRACKET KIT ANTI-ROTATION FRONT BRACKET FRONT BRACKET COVER 1033-10-0050 HEX BOLT -HCS, M10-1.5X50, 8.8, ZP, DIN931 1033-10-0085 HEX BOLT -HCS, M10-1.5X85, 8.8, ZP, DIN931 1074-10-0001... -
Page 5: Torque Specifications
PREPARATION TORQUE SPECIFICATIONS 1. Set each Track System unit near the position Recommended torque specifications according to indicated by the sticker affixed on the frame. bolt size and grade. GRADE DIMENSION lb-ft M6-1.0 M8-1.25 M10-1.5 M12-1.75 Fig. 2 NOTE: Use a thread locker (Loctite 262 or equivalent) at the specific points of the System indicated in ** IMPORTANT: Start by installing the REAR Track the User Manual’s exploded views. - Page 6 4. Insert bolts in rear anchor bracket (B1-B2) as 6. Lift bracket (B1-B2) up to lower suspension arm. shown in Fig. 4 Hook back end of bracket over front facing member of suspension arm, as shown below in Fig. 7 Fig.
- Page 7 9. Secure undercarriage to rear hub using the 11. Verify that spring assembly bolt (6) is tightened to provided M10 lug nuts (D). Use bolt circle Ø110 the recommended torque specification: 75 N•m [55 mm. See Fig. 10 lb•ft]. Refer to Fig. 12 CAUTION: If needed, take rubber protector off of hub.
- Page 8 FRONT TRACK SYSTEM 5. Position bottom part of anchor bracket assembly (A1) under lower suspension arm. Position bracket INSTALLATION cover (A2) over suspension arm. Align holes and insert the cover's tenon in the mortise cut in the 1. Remove front wheels. Make sure that wheel studs bottom part.
- Page 9 STEERING LIMITER INSTALLATION 10.Assemble steering limiter cables (C2), aluminum disks (C1) and step spacers (C5) together as shown on Fig. 21 FRONT Fig. 18 8. Attach the stabilizing rod (2) to the anchor bracket (1), using the two spacers (3), washer (4), and nut (5).
- Page 10 STEERING LIMITER ADJUSTMENT 12.Position steering limiter cable assembly under anchor bracket and slide it over bolt (A4) already WARNING: Before going to the next steps, inserted. Use washer (C6) and nut (C7) to secure make sure that stabilizing arms are correctly assembly to anchor bracket.
-
Page 11: Final Installation
FINAL INSTALLATION 1. Verify the suspension settings. If the shock absorbers are adjustable, adjust them to the stiffest setting to allow for maximum clearance between track systems and the vehicle fenders. See Fig. 27 TRIM Fig. 29 ADJUSTMENTS CAUTION: The Track System is designed to provide the best traction performance and floatability.
