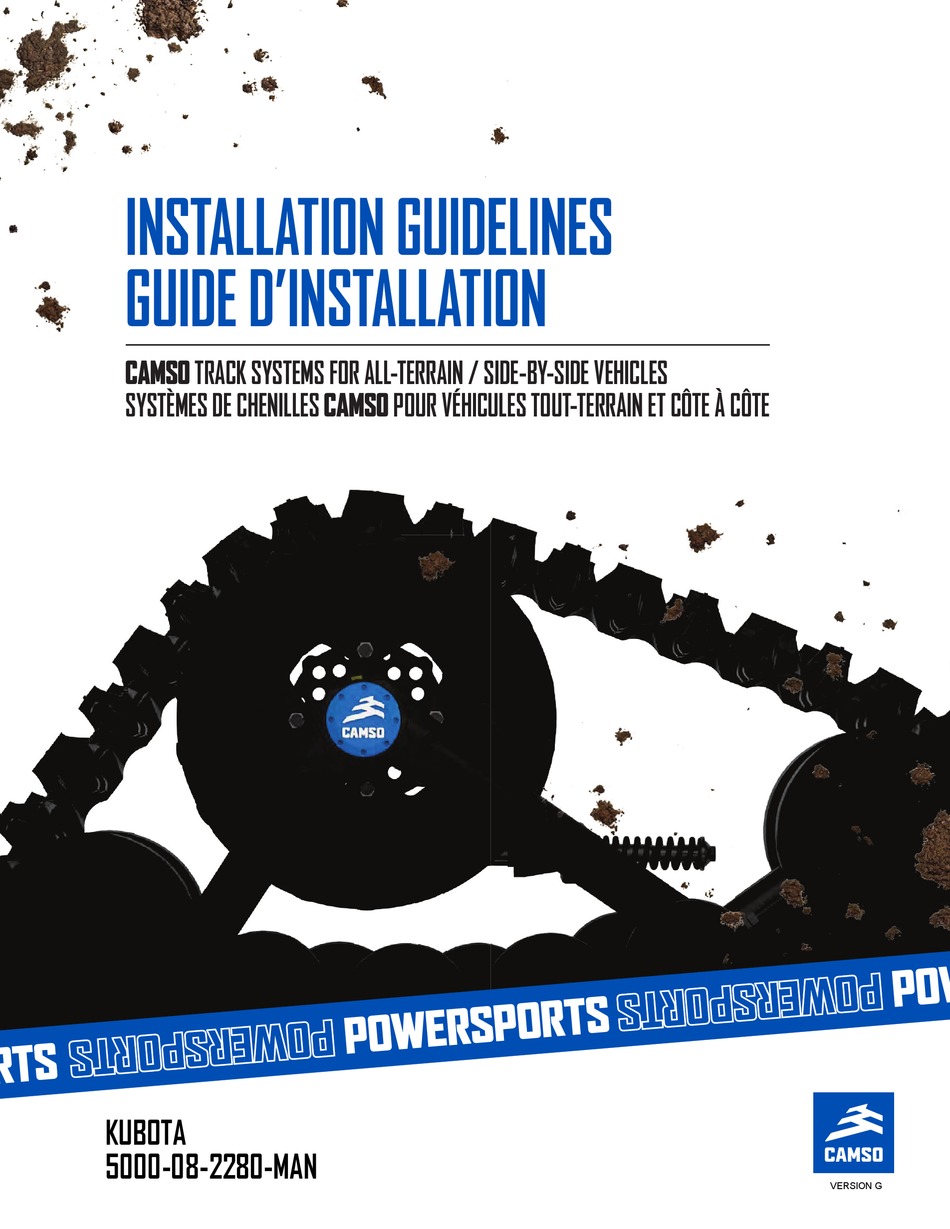

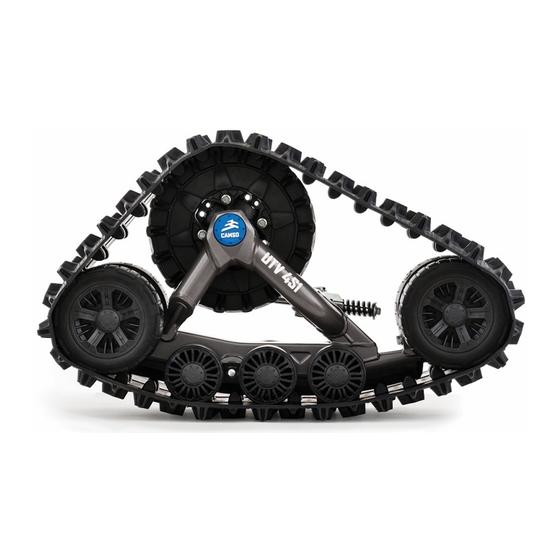

- Page 1 INSTALLATION GUIDELINES GUIDE D’INSTALLATION CAMSO TRACK SYSTEMS FOR ALL-TERRAIN / SIDE-BY-SIDE VEHICLES SYSTÈMES DE CHENILLES CAMSO POUR VÉHICULES TOUT-TERRAIN ET CÔTE À CÔTE KUBOTA 5000-08-2280-MAN VERSION G...
- Page 2 Track System which will not be covered under normal warranty. TECHNICAL SUPPORT If your dealer or distributor is unable to solve a problem related to the System, you may contact the Camso support team from Monday to Friday.
-
Page 3: Symbols And Signal Words
No matter where or in what conditions, get there and back safely with your Camso track systems. Ready to benefit from optimal traction, mobility, stability, and flotation? Let’s go make tracks! -
Page 4: Parts List
PARTS LIST CAUTION: Before beginning the installation, make sure that you have received all the components included in the parts lists below. ITEM PART # DESCRIPTION 1004-08-0100 FRONT BRACKET KIT ANTI-ROTATION FRONT BRACKET FRONT BRACKET COVER 1033-10-0050 HEX BOLT -HCS, M10-1.5X50, 8.8, ZP, DIN931 1071-10-0001 NYLON NUT - NN, M10-1.5, ZP, 8, DIN982 ITEM... -
Page 5: Torque Specifications
PREPARATION TORQUE SPECIFICATIONS 1. Set each Track System unit near the position Recommended torque specifications according to indicated by the sticker affixed on the frame. bolt size and grade. GRADE DIMENSION lb-ft M6-1.0 M8-1.25 M10-1.5 M12-1.75 Fig. 2 NOTE: Use a thread locker (Loctite 262 or equivalent) at the specific points of the System indicated in the User Manual’s exploded views. - Page 6 4. Insert bolt in the rear anchor bracket (B1-B2) as 6. Install the anchor bracket (B1-B2) under lower shown in Fig. 4 suspension arm. Make sure to hook the bracket’s C–shaped back end on the a-arm. See Fig. 7 Fig. 4 CAUTION: Make sure that the bolt is inserted in the right direction.
- Page 7 AFTER Fig. 11 RTV-X 900 | 1100 | 1120 *** IMPORTANT RTV-X 900 | 1100 | 1120 only *** 11. Installation of Track Systems on vehicles with ALUMINUM WHEELS using the original wheel bolts, is problematic due to bolt thread length.
- Page 8 15.Verify that spring assembly bolt (7) is tightened to the recommended torque specification: 75 N•m [55 Fig. 12 RTV-X 900 | 1100 | 1120 lb•ft]. Refer to Fig. 15 *** RTV-X 1140 only *** 13.Secure undercarriage to rear hub using the vehicle’s wheel nuts.
- Page 9 FRONT TRACK SYSTEM 5. Position bottom part of anchor bracket (A1) under lower suspension arm. Position top part (A2) over INSTALLATION suspension arm and insert tenon in mortise cut in bottom part. Refer to Fig. 19 1. Remove front wheels. Make sure that wheel studs and wheel hubs are free of dirt.
- Page 10 *** IMPORTANT RTV-X 900 | 1100 | 1120 only *** 9. Installation of Track Systems on vehicles with ALUMINUM WHEELS using the original wheel bolts, is problematic due to bolt thread length. These vehicles must absolutely use the wheel bolts (D) provided in the installation kit.
- Page 11 STEERING LIMITER INSTALLATION 14.Assemble steering limiter cables (C2), aluminum disks (C1) and step spacers (C5) together as shown on Fig. 27 FRONT Fig. 24 RTV- X 1140 12.Attach the stabilizing rod (2) to the anchor bracket (1), using the two spacer bushings (3), washer (4), and nut (5).
- Page 12 STEERING LIMITER ADJUSTMENT 16.Attach steering limiter cable assembly under anchor bracket using bolt (C3) inserted through bracket WARNING: Before going to the next steps, cover, washer (C6) and nut (C7). Tighten nut to 50 make sure that stabilizing arms are correctly N•m [37 lb•ft].
-
Page 13: Final Installation
FINAL INSTALLATION 3. To avoid damage to the vehicle and front track systems, Steering Limiter adjustment should be 1. Verify the suspension settings. If the shock verified on vehicles equipped with a front guard (see absorbers are adjustable, adjust them to the stiffest Fig. - Page 14 ADJUSTMENTS CAUTION: The Track System is designed to provide best traction performance floatability. Adjustments such as alignment, track tension, and angle of attack are necessary for optimal System performance. more information on these adjustments, refer to the document entitled ADJUSTMENTS or to the USER MANUAL provided with the installation kit specific to the vehicle.
