- Page 1 ® R&S RT-ZC20 Current Probe User Manual (>9Ü>2) 1409781402 Version 04...
- Page 2 Trade names are trademarks of the owners. ® 1409.7814.02 | Version 04 | R&S RT-ZC20 The following abbreviations are used in this manual: R&S ® RT-ZC20 is abbreviated as R&S RT-ZC20, and ® R&S RT-ZA13 is abbreviated as R&S RT-ZA13.
-
Page 3: Table Of Contents
® Contents R&S RT-ZC20 Contents 1 Safety and regulatory information........5 1.1 Safety instructions................5 1.2 Labels on the product................7 1.3 Warning messages in the documentation.......... 8 2 Product description...............9 2.1 Key features..................9 2.2 Unpacking and checking..............9 2.3 Description of the probe..............10 3 Connecting the probe............13... - Page 4 ® Contents R&S RT-ZC20 User Manual 1409.7814.02 ─ 04...
-
Page 5: Safety And Regulatory Information
® Safety and regulatory information R&S RT-ZC20 Safety instructions Safety and regulatory information The product documentation helps you to use the product safely and efficiently. Follow the instructions provided here and in the Chapter 1.1, "Safety instructions", on page 5. - Page 6 ® Safety and regulatory information R&S RT-ZC20 Safety instructions Reconfigure or adjust the product only as described in the product documentation or the data sheet. Any other modifications can affect safety and are not permitted. Never open the casing of the product. Only service personnel authorized by Rohde &...
-
Page 7: Labels On The Product
® Safety and regulatory information R&S RT-ZC20 Labels on the product Working with current probes When working with current probes, you can measure high-frequency currents or currents that contain high-frequency components. ● Switch off the test circuit while connecting the probe. -
Page 8: Warning Messages In The Documentation
® Safety and regulatory information R&S RT-ZC20 Warning messages in the documentation Table 1-2: Labels regarding product and environment safety Labeling in line with EN 50419 for disposal of electrical and electronic equipment after the product has come to the end of its service life. -
Page 9: Product Description

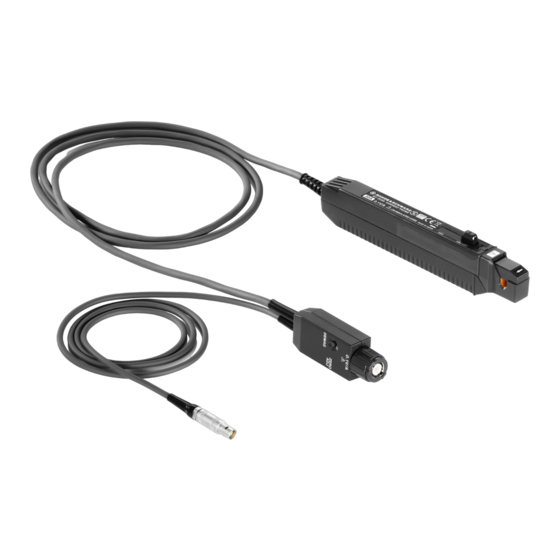

Unpacking and checking Product description The R&S RT-ZC20 is an AC/DC current probe. It allows the user to make current measurements from DC to 100 MHz. By clamping on the conductor to be mea- sured, the current waveform is captured easily without interrupting the electric cir- cuit. -
Page 10: Description Of The Probe
® Product description R&S RT-ZC20 Description of the probe Delivery notes The delivery contains the following items: ● User manual ● Carrying case ● R&S RT-Zxx high-voltage and current probes data sheet ● Safety instructions for oscilloscopes and accessories (multilingual) ●... - Page 11 ® Product description R&S RT-ZC20 Description of the probe 7 = Opening lever 8 = Sensor head 9 = Demagnetizing switch (DEMAG) 10 = Zero adjustment dial (ZERO ADJ) 11 = Coarse adjustment trimmer 12 = Output connector 13 = Power plug...
- Page 12 ® Product description R&S RT-ZC20 Description of the probe Power plug Connect the plug to the R&S RT-ZA13 probe power supply receptacle to supply power to the sensor. User Manual 1409.7814.02 ─ 04...
-
Page 13: Connecting The Probe
Handling the probe Connecting the probe Handling the probe The R&S RT-ZC20 can withstand a moderate amount of physical and electrical stress. To avoid damage, treat the probe with care: ● Prevent the probe from receiving mechanical shock. ● This device should be installed and operated indoors only, between 0°C and 40°C (32°F to 104°F) and 80% RH or less. -
Page 14: Connecting The Probe To The Power Supply
Turn off the power switch at the rear of the R&S RT-ZA13 probe power supply. 3. Connect the power cord. 4. Connect the power plug of the R&S RT-ZC20 to the power receptacle of the R&S RT-ZA13 probe power supply. -
Page 15: Connecting The Probe To The Oscilloscope
BNC connectors, make sure the polarity is correct. To connect the probe: 1. Insert the output connector of the R&S RT-ZC20 into one of the BNC input connectors of the oscilloscope. 2. Turn the collar until it clicks. -
Page 16: Setting Up And Demagnetizing
Setting up and demagnetizing 1. With the waveform measuring instrument input at ground, adjust the waveform to the zero position. 2. Connect the R&S RT-ZC20 current probe to the power supply as described in Chapter 3.2, "Connecting the probe to the power supply", on page 14. -
Page 17: Connecting The Probe To The Dut
® Connecting the probe R&S RT-ZC20 Connecting the probe to the DUT The demagnetizing process takes about one second. During demagnetizing, a demagnetizing waveform is shown on the oscilloscope. The positive and neg- ative components of this waveform may be asymmetrical. - Page 18 ® Connecting the probe R&S RT-ZC20 Connecting the probe to the DUT If the sensor head is not properly closed, accurate measurement is not possi- ble. The current consumption of clamp-on probes depends on the current to be mea- sured. Confirm that the total current consumption of the probes does not exceed the rated output current of the R&S RT-ZA13 probe power supply.
-
Page 19: Considerations For Measurements
® Connecting the probe R&S RT-ZC20 Considerations for measurements Considerations for measurements Measurements of continuous input current To avoid damage to the probe when doing measurements of continuous input cur- rent, consider the following: ● The maximum continuous input range is based on heat that is internally gen- erated during measurement. - Page 20 ® Connecting the probe R&S RT-ZC20 Considerations for measurements utive maximum current, electric currents in both sides will heat up the sensor and raise the temperature, thereby causing damage to the sensor. Drift, oscillation, and sound ● Immediately after powering on, the probe may be subject to an appreciable offset drift due to the effect of self-heating.
- Page 21 ® Connecting the probe R&S RT-ZC20 Considerations for measurements At high frequencies, common mode noise may affect measurements taken on the high-voltage side of circuits. If this occurs, reduce the frequency range of the waveform measuring instrument, or clamp onto the low-voltage side of the circuit, as appropriate.
-
Page 22: Maintenance And Service
® Maintenance and service R&S RT-ZC20 Contacting customer support Maintenance and service If service or calibration is needed, contact your Rohde & Schwarz service center. Return a defective product to the Rohde & Schwarz service center for diagnosis and exchange. -
Page 23: Returning For Servicing
Calibration interval Figure 4-1: QR code to the Rohde & Schwarz support page Returning for servicing Use the original packaging to return your R&S RT-ZC20 to your Rohde & Schwarzservice center. A list of all service centers is available on: www.services.rohde-schwarz.com If you cannot use the original packaging, consider the following: 1. -
Page 24: Storage And Transport
® Maintenance and service R&S RT-ZC20 Disposal Storage and transport Protect the product against dust. Ensure that the environmental conditions, e.g. temperature range and climatic load, meet the values specified in the data sheet. Store the product in a shock-resistant case, e.g. in the shipping case. -
Page 25: S Rt-Za13 Probe Power Supply
® R&S RT-ZA13 probe power supply R&S RT-ZC20 R&S RT-ZA13 probe power supply This unit is a special-purpose power supply for the current probes. You can connect up to four current probes to the power supply. Front view Rear view...
