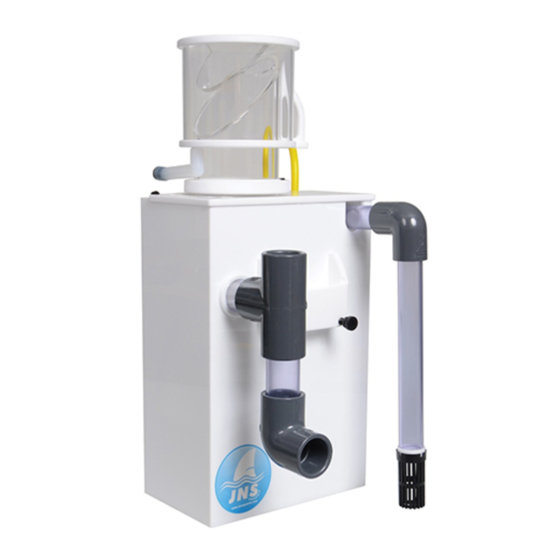

JNS Aquaria VS-2 Installation Manual

VS-2
Before Use
Please open the package carefully, and check if there's
any damaged or missing part.
Collection cup
with lid
Body case
with lid and silencer
Main body
with diffuser
Water outlet
4
Water inlet
5
Shark 1.5 pump
6
7
< Accessories pack >
air hose
Threaded
Drain tube
fasterner
Hang-On-Back Protein Skimmer
Installation Guide
Recommendations
While we take great care to keep any contaminates away from our products during assembly, please take a moment to clean the skimmer and
1.
plumbing before attaching to your tank. Only clean your skimmer with warm water. Never clean Acrylic with alcohol based products. Use caution
when handling as acrylic scratches easily.
It may require 2 ‒ 4 weeks for the skimmer to reach maximum performance due to tiny amounts of oil or remnants left from manufacturing.
1
2.
Skimmer performance may be erratic during this time and be sure to allow ample time for the skimmer to break-in before making adjustments.
Regular maintenance of the pump will ensure a long life and maximum performance: recommended every 3 months.
3.
For best performance, please clean the collection cup frequently. Use a sponge and warm water to clean it. (DO NOT USE ANY SOAP OR
2
4.
CHEMICALS TO CLEAN THE COLLECTION CUP).
Assembly
Loosen the screw under the main
1 body to separate the base.
3
Install the diffuser, and do not
4 over-tighten the screws.
Install the main body into the
7 body case.
Loosen the
2 screws on the
diffuser to pick
up the diffuser.
Connect the air hose to the
5 venturi. 6
Install the water
8 inlet and the
water outlet.
www.jnsaquaria.com
info@jnsaquaria.com
Install the base onto the pump, fix the base
3 by tightening the threaded fasterner.
Install the skimmer
body, and make
sure to install it in
position (the black
arrow is on the
same side with the
power cord) and the
skimmer body could
be turned after
installation.
Place the lid of body case, and connect the
9 air hose to the silencer.
