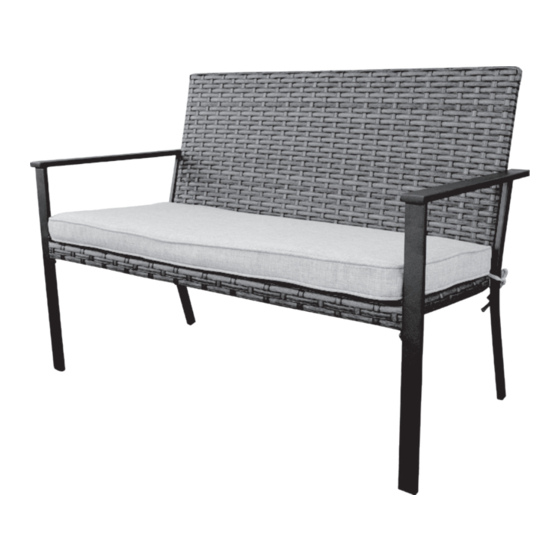

- Page 1 ASSEMBLY INSTRUCTION ITEM#: H21GK025VB rev SKU#: 810589090 Y O R K T O W N R E S I N W I C K E R C U S H I O N B E N C H 1 (877) 800 – 6021 Need help? We are here for you! •...
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product...
- Page 3 PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY HKVS025D-BG LS-M6-15 BACK ASSEMBLY BOLT M6*15 LS-M6-40 HKVS025D-ZG SEAT ASSEMBLY BOLT M6*40 HKVS025D-ZSB DP-d6.5-D13 WASHER d6.5*D13*1.0 LEFT ARM HKVS025D-YSB HKVS025D-ZM RIGHT ARM SEAT CUSHION Tools STEP 1 PARTS REQUIRED: 1, 2, 6, & 7 Keep the bolts loose.
- Page 4 STEP 2 PARTS REQUIRED: 2, 3, 4, 5, & 7 Keep the bolts loose. Note: The labels marked “L” and “R” on the arms (#3 and #4) should coincide with Step 2 to ensure proper assembly. STEP 3 PARTS REQUIRED: 1, 3, 4, 6, & 7 Tighten all bolts by using the supplied Hex key.
- Page 5 STEP 4 PARTS REQUIRED: 8 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from the service center. STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item.
