ASSEMBLY INSTRUCTION
ITEM#: H21GK025VB-1-rev
SKU#: 810589089

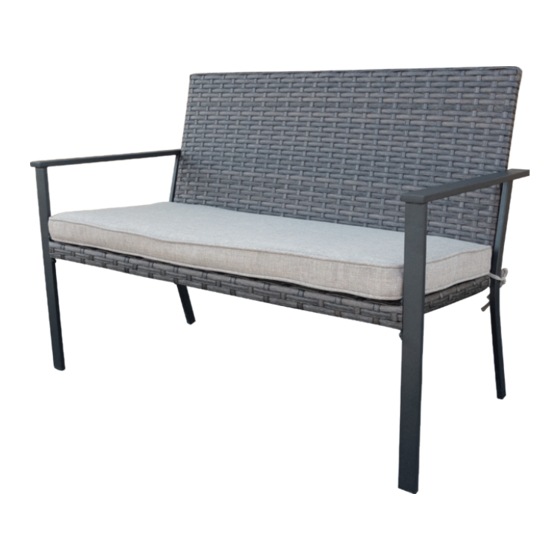

Y O R K T O W N R E S I N W I C K E R
C U S H I O N B E N C H - B R O W N W I C K E R
1 (877) 800 – 6021
Need help? We are here for you!
• Toll Free
service@hcipatio.com • Email Address

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H21GK025VB-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Broyhill H21GK025VB-1

  • Page 1 ASSEMBLY INSTRUCTION ITEM#: H21GK025VB-1-rev SKU#: 810589089 Y O R K T O W N R E S I N W I C K E R C U S H I O N B E N C H - B R O W N W I C K E R 1 (877) 800 –...
  • Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product...
  • Page 3 PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY HKVS025B-BG LS-M6-15 BACK ASSEMBLY BOLT M6*15 LS-M6-40 HKVS025B-ZG SEAT ASSEMBLY BOLT M6*40 HKVS025B-ZSB DP-d6.5-D13 WASHER d6.5*D13*1.0 LEFT ARM HKVS025B-YSB HKVS025B-ZM RIGHT ARM SEAT CUSHION Tools STEP 1 PARTS REQUIRED: 1, 2, 6, & 7 Keep the bolts loose.
  • Page 4 STEP 2 PARTS REQUIRED: 2, 3, 4, 5, & 7 Keep the bolts loose. Note: The labels marked “L” and “R” on the arms (#3 and #4) should coincide with Step 2 to ensure proper assembly. STEP 3 PARTS REQUIRED: 1, 3, 4, 6, & 7 Tighten all bolts by using the supplied Hex key.
  • Page 5 STEP 4 PARTS REQUIRED: 8 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from the service center. STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item.
