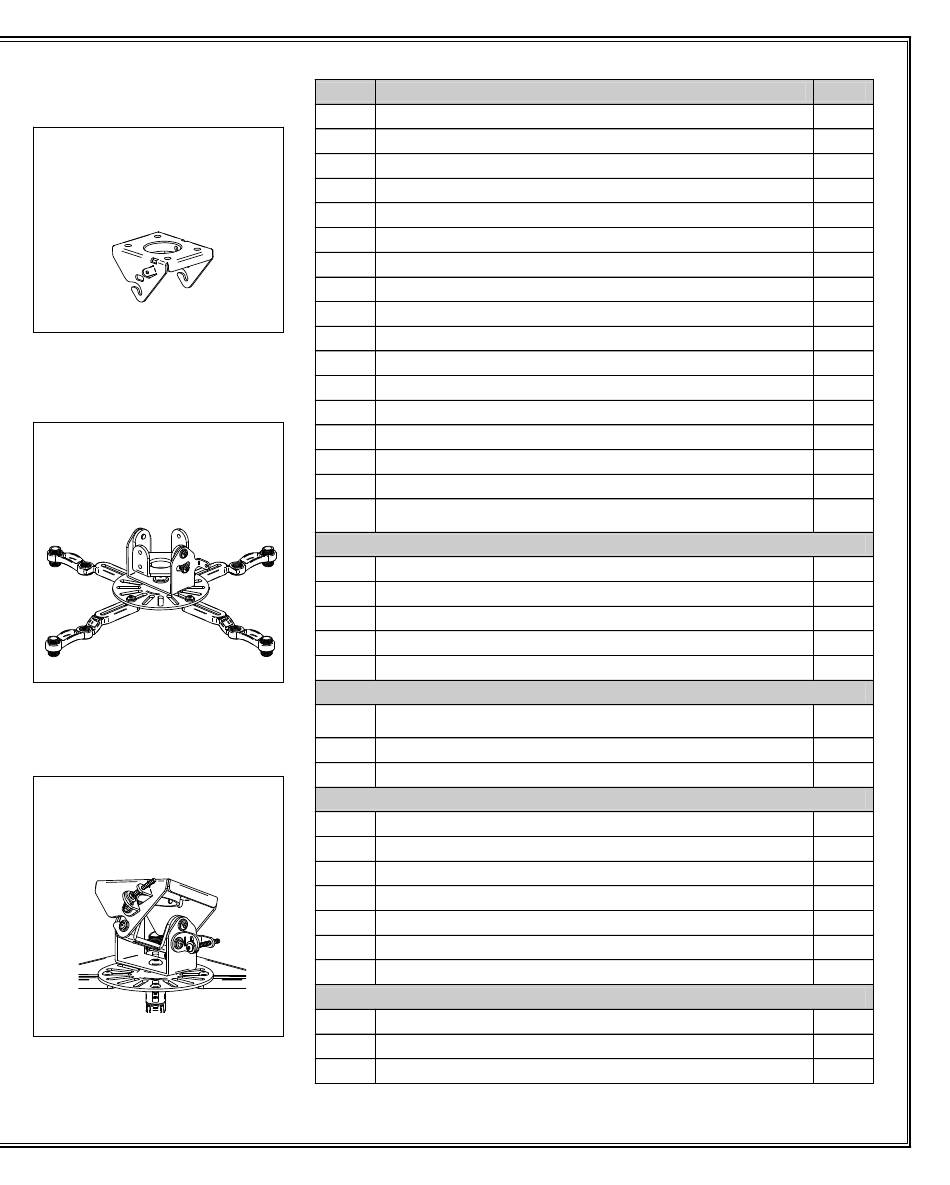

B-Tech mountlogic Series Installation Manual & Parts List page 5

Ceiling plate
Interface assembley
Micro-adjustment
PLEASE KEEP THIS FOR FUTURE REFERENCE
REF
1 CEILING PLATE
2 JOINTING PLATE
3 SWIVEL PLATE
4 CAROUSEL
5 MOUNTING ARM
6 LEVELING SCREW
7 LEVELING SCREW COVER
8 MOUNTING ARM CAP
9 M6 SQUARE NUT
10 M8 X 15mm PIN HEX SECURITY SCREW
11 M8 NYLOC NUT (FOR PART 10)
12 M6 X 12mm PIN HEX SECURITY SCREW
13 M6 METAL WASHER (FOR PART 12)
14 M8 PLASTIC WASHER (FOR PART 10 & 11)
15 M6 X 10mm PIN HEX SECURITY GRUB SCREW
16 3mm PIN HEX SECURITY KEY (FOR PART 15)
5mm PIN HEX SECURITY KEY
17
(FOR PARTS 10, 12, 16, 23, 24, C, D & E)
MICRO-ADJUSTMENT
18 MICRO ADJUSTMENT BRACKET
19 M4 X 30mm PIN HEX SECURITY SCREW
20 M4 METAL WASHER (FOR PART 19)
21 M4 NYLOC NUT (FOR PART 19)
22 M4 PLASTIC WASHER (FOR PART 19)
SYSTEM 2 ADAPTOR
SYSTEM 2 ADAPTOR
23
(USE ONLY WITH 50mm POLE INSTALLATION)
24 M8 X 60mm SAFETY BOLT
25 M10 X 6mm GRUB SCREW
A M2.5 X 12mm SCREW
B M3 X 12mm SCREW
C M4 X 12mm PIN HEX SECURITY SCREW
D M5 X 12mm PIN HEX SECURITY SCREW
E M6 X 12mm PIN HEX SECURITY SCREW
F M2.5 METAL WASHER (FOR PART A)
G M3 METAL WASHER (FOR PART B)
A1 M8 X 50mm COACH SCREW
A2 M8 METAL WASHER (FOR PART A1)
A3 No. 10 WALL PLUG (FOR PART A1)
PART NAME
INTERFACE KIT
FIXING KIT
QTY
1
1
1
1
4
4
4
4
4
1
1
12
10
2
1
1
1
2
2
2
2
2
1
1
2
4
4
4
4
4
4
4
4
4
4
5
