INDUCTION COOKTOP
KAMCTINDUCA

Advertisement

loading

Related Manuals for Kogan KAMCTINDUCA

Summary of Contents for Kogan KAMCTINDUCA

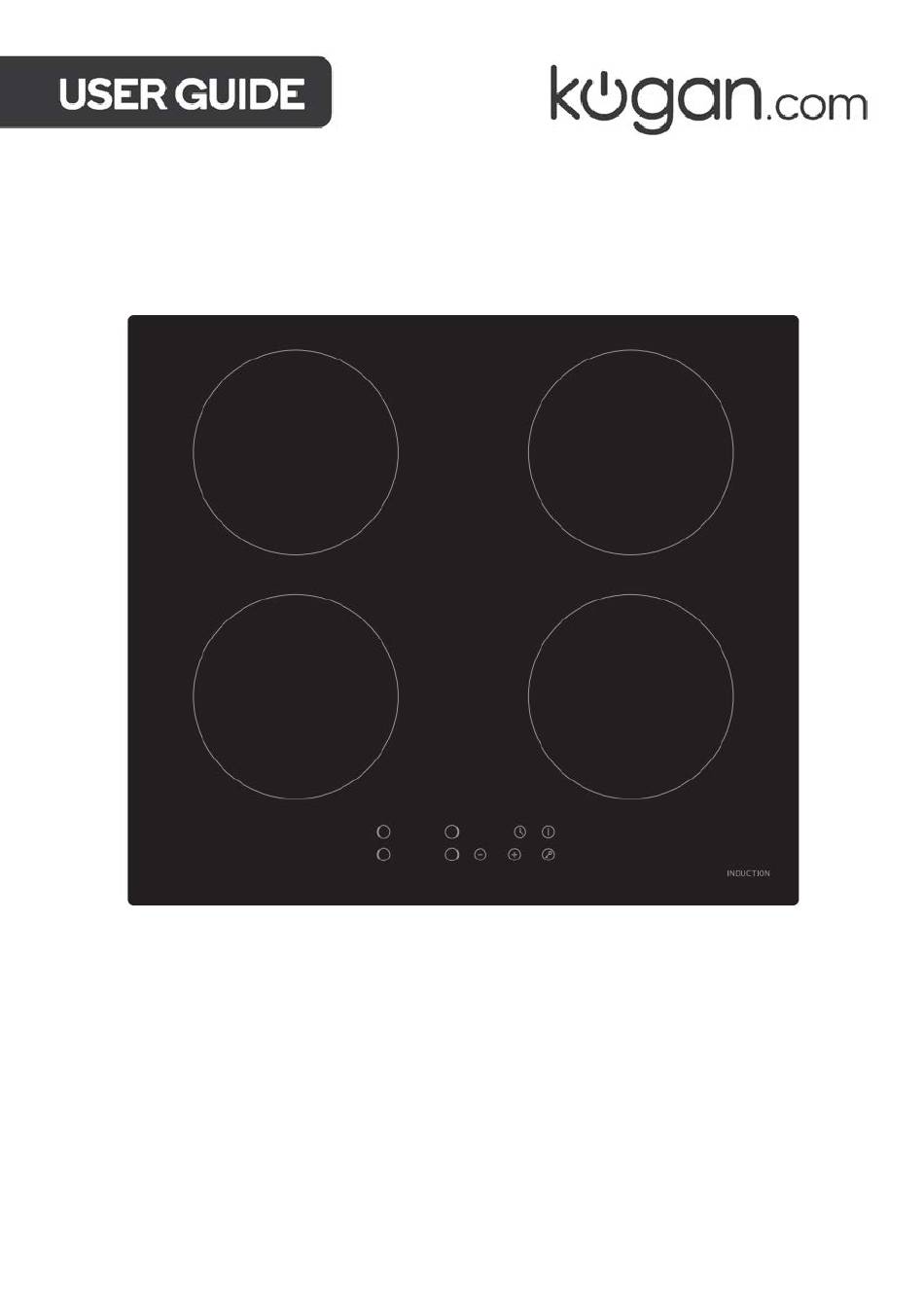

  • Page 1 INDUCTION COOKTOP KAMCTINDUCA...

  • Page 2: Table Of Contents

    Safety & warnings Overview Installation Operation Cleaning & care Specifications Troubleshooting Notes...

  • Page 3: Safety & Warnings

    SAFETY & WARNINGS To ensure your safety and proper functioning of the appliance, it is important to carefully read and follow this manual before installation and use. Remember to keep these instructions with the appliance in case of moving or selling it. Users must have a complete understanding of the appliance's operation and safety features.
  • Page 4 Switch the cooktop off at the wall before cleaning or performing maintenance. • If the power cord is damaged, it must be replaced. Cease use immediately and contact help.Kogan.com for support. • If the surface is cracked, switch off, cease use immediately and contact help.Kogan.com for support.
  • Page 5 Important safety instructions • Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. • Never use your appliance as a work or storage surface. • Never leave any objects or utensils on the appliance. •...

  • Page 6: Overview

    OVERVIEW Top View Induction cooking zone (Max. 1500W) Induction cooking zone (Max. 2100W) Induction cooking zone (Max. 1500W) Induction cooking zone (Max. 2100W) Glass plate Control panel Power button...
  • Page 7 Control Panel Heating zone selection controls Power / Timer regulating key Keylock control ON/OFF control Timer control Induction Cooking Induction cooking works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

  • Page 8: Installation

    INSTALLATION Before Installing the Cooktop • Ensure the work surface is square and level and no structural members interfere with space requirements. • Ensure the work surface is made of a heat-resistant and insulated material. • If the hob is installed above an oven, the oven has a built-in cooling fan. •...
  • Page 9 Location Requirements Note: The safety distance between the sides of the cook top and the inner surfaces of the worktop should be at least 3mm. Seal Min.3mm L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) F(mm) 560+4 +1 490+4 +1 50 min. 3 min.
  • Page 10 Ventilation Ensure the induction cooktop is well ventilated and that air inlet and outlet are not blocked. To avoid accidental contact with the underside bottom of the cooktop, it is required to install a wooden insert, fixed by screws, at a minimum distance of 50mm from the underside of the cooktop.
  • Page 11 Cooktop Bench top Bracket Figure 1 Note: Ensure the brackets do not touch with the inner surfaces of the worktop after installation. After Installing the Cooktop • Ensure the power cable does not interfere with cupboard doors or drawers. • There is adequate flow of air from outside the cabinetry to the base of the cooktop.
  • Page 12 Yellow/Green Black Brown Blue If the total number of heating unit of the appliance you choose is not less than 4, the appliance can be connected directly to the mains by single-phase electric connection, as shown below. Yellow/Green Black Brown Blue...
  • Page 13 • If the cable is damaged or to be replaced, the operation must be carried service agent authorised by Kogan.com. • If the appliance is being connected directly to the mains, an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.

  • Page 14: Operation

    OPERATION Touch Controls • The controls respond to touch, so you don’t need to apply any pressure. • Use the ball of your finger, not your finger tip. • You will hear a beep each time a touch is registered. •...
  • Page 15 • Make sure that the base of your pan is smooth, sits flat against the glass and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot, a slightly wider energy will be used at its maximum efficiency.
  • Page 16 Cooking Touch the Power button for three seconds. After power on, the buzzer beeps once, all displays show “–” or “– –”, indicating that the induction hob has entered standby mode. Place a suitable pan on the cooking zone that you wish to use.
  • Page 17 Finish Cooking Touching the heating zone selection control that you wish to switch off Turn the cooking zone off by scrolling down to “0” or touching “-” and “+” control together. Make sure the display shows “0”. Turn the whole cooktop off by touching the power button Hot surfaces “H”...
  • Page 18 Timer You can use the timer in two different ways: • You can use it as a countdown timer. In this case, the timer will not turn any cooking zone off when the set time is up. • You can set it to turn one or more cooking zones off after the set time is up. The timer has a maximum of 99 min.
  • Page 19 Cooking Zone Timer Touching the heating zone selection control that you want to set the timer for. (e.g., zone 3#) Touch timer control, the indicator will start flashing and “10” will show in the timer display. Set the time by using the “-” or “+” buttons. Note: Touch the “-”...
  • Page 20 Auto Shut Down Auto shut down is a safety protection function for your induction cooktop. It will shut down automatically if ever you forget to turn off the appliance after cooking. The auto shut down times for various power levels are shown in the table below: Power level Default working timer (hour) Note: When a pot is removed, the induction hob can stop heating immediately and the...
  • Page 21 Stir-frying Choose an induction compatible flat-based wok or a large frying pan. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. Preheat the pan briefly and add two tablespoons of oil. Cook any meat first, put it aside and keep warm.

  • Page 22: Cleaning & Care

    CLEANING & CARE What? How? Important! • When the power to the cooktop is switched off, there will be no ‘hot surface’ indication, but the cooking 1. Switch the power to the zone may still be hot! Take cooktop off. Everyday soiling extreme care.
  • Page 23 1. Switch the power to the cooktop off. • The cooktop may beep and 2. Soak up the spill. turn itself off and the touch 3. Wipe the touch control area controls may not function Spill overs on the with a clean damp sponge while there is liquid on them.

  • Page 24: Specifications

    No power. power outage in your be turned on. home or area. If you’ve checked everything and the problem persists, contact help.Kogan.com for support. The touch controls are The controls are locked. Unlock the controls. unresponsive. There may be a slight film...
  • Page 25 Technical fault. code is displayed wall and contact (typically alternating with help.Kogan.com for one or two digits in the support. cooking timer display).
  • Page 26 Error Codes The induction cooktop is equipped with a self-diagnostic function. With this test the technician can check the function of several components without disassembling or dismounting the hob from the working surface. Error code Problem Solution Auto-Recovery Supply voltage is above Please inspect whether the rated voltage.
  • Page 27 Specific Failure & Solution Failure Problem Solution A Solution B Check to see if plug is No power secured tightly in supplied. outlet and that outlet is working. The accessorial The LED does power board and Check the connection. not come on the display board when unit is connected failure.
  • Page 28 Heating zones of the same side The power board (Such as the first and the display Check the connection. and the second board connected zone) would failure; display “u”. The display board Replace the display of communicate board. part is damaged. The Main board is Replace the power damaged.

  • Page 29: Notes

    NOTES...
  • Page 32 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
