- Page 1 ShenZhen Chainway Information Technology Co., Ltd. Mobile Data Terminal C66 User Manual...
-
Page 2: Table Of Contents
Content Content ..................1 Statement ..................3 Chapter 1 Product intro ..............4 Intro ..................4 Precaution before using battery ........... 5 Charger ................6 Notes ................... 7 Chapter 2 Installation instructions............8 2.1 Appearance ................8 2.2 Battery charge ................. 9 2.3 Buttons and function area display .......... -
Page 4: Statement
(licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Chainway. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. -
Page 5: Chapter 1 Product Intro
Chapter 1 Product intro 1.1 Intro Chainway C66 is a newly-developed rugged handheld computer with large screen and strong extensibility. Based on Android 11.0 OS, it is equipped with Qualcomm Octa-core processor for high-speed processing. With 5.5-inch high-definition display, it is integrated with barcode scanning and other functions. -
Page 6: Precaution Before Using Battery
1.2 Precaution before using battery Do not leave battery unused for long time, no matter it is in device or inventory. If battery has been used for 6 months already, it should be check for charging function or it should be disposed correctly. -
Page 7: Charger
1.3 Charger Thecharger type is NA010050020, output voltage/current is 5V DC/2A. The plug considered as disconnect device of adapter. -
Page 8: Notes
1.4 Notes Note: Using the incorrect type battery has danger of explosion. Please dispose the used battery according to instructions. Note: Due to the used enclosure material, the product shall only be connected to a USBInterface of version 2.0 or higher. Theconnection to so called power USB is prohibited. -
Page 9: Chapter 2 Installation Instructions

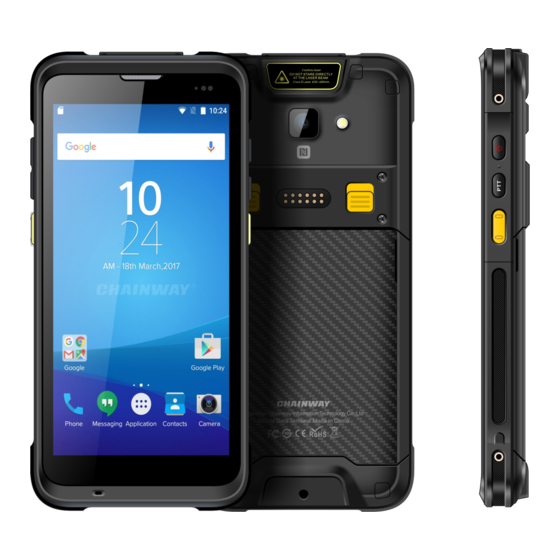

Chapter 2 Installation instructions 2.1 Appearance C66 front appearance is as below:... -
Page 10: Battery Charge
Buttons instruction Button Description 1. Power Locate on right side, press to ON/OFF device. Side Locate on right side, its function can be defined by software. 2. PTT key button Scanning button located on both sides. There are two scanning 3.SCAN buttons. -
Page 11: Buttons And Function Area Display
2.3 Buttons and function area display C66 has 6 side buttons, 2D scanning module locates on the top. HD camera and flashlight locate at rear. -
Page 12: Chapter 3 Call Function
Chapter 3 Call function Chapter 4 Barcode reader-writer 1. In App Center, to open 2D barcode scan test. 2. Press “SCAN” button or click scan key to start scanning, the parameter “Auto interval” can be adjusted. Caution: Please scan codes in correct way otherwise the scanning will be failed. -
Page 13: Chapter 5 Rfid Reader
Chapter 5 RFID reader Chapter 6 Other functions 6.1 PING tool 1. Open “PING” in App Center. 2. Setup PING parameter and select external/internal address. -
Page 14: Bluetooth
6.2 Bluetooth 1. Open “BT Printer” in App Center. 2. In the list of detected devices, click the device that you want to pair. 3. Select printer and click “Print” to start printing contents. -
Page 15: Volume Setup
6.3 Volume setup 1. Click “Volume” in App Center. 2. Setup volume by requirements. -
Page 16: Sensor
6.4 Sensor 1. Click “Sensor” in App Center. 2. Setup the sensor by requirements. -
Page 17: Keyboard
6.5 Keyboard 1. Click “Keyboard” in App Center. 2. Setup and test the main value of the device. -
Page 18: Otg Function
6.6 OTG Function C66 Cradle OTG Connection: 1. Install C66 rubber boot. 2. Pay attention to installing direction of RB-C66-RRHP Type C & Pogo Pin. 3. Install device onto cradle and select OTG mode on pop-up menu to switch on OTG. -
Page 19: Network
6.7 Network 1. Click “Network” in App Center. 2. Test WIFI/Mobile signal by requirements. -
Page 20: Keyboard Emulator
6.8 Keyboard emulator The keyboard emulator can be used in multiple operating background and output formats directly. And it includes Prefix/Suffix/Enter/TAB. Please check Keyboard emulator manual for more details. Note: For each model, keycode of side button would be different, user needs to use keyboard in appcenter to check keycode and bind in Barcode2D. -
Page 21: Chapter 7 Device Characteristic
Chapter 7 Device characteristic Physical characteristics Size 160x76x15.5mm / 6.3*2.99*0.61in ＜287g/10.12oz(with battery) Weight Display 5.5-inch display, IPS LTPS 1440*720 Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported 5200 mAh main battery Battery Expansion Supports up to 128 GB Micro SD card Audio 2 Microphones, 1 for noise reduction Camera... - Page 22 User environment Operating temp. -20 ~ 50℃ Storage Temp. -40℃ to 70℃ Humidity 5%RH - 95%RH non condensing Sealing IP65, IEC sealing standard Drop Multiple 1.8m/5.91ft drops (at least 20 times) to specification the concrete across the operating temperature range Multiple 2.4m/7.87ft drops (at least 20 times) to the concrete after installed rubber bumper -20 ~ 40 ℃...
- Page 23 Developing Environment Chainway software develop kit Language Java Develop Eclipse/Android Studio FCC statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 24 ‐Consult the dealer or an experienced radio/TV technician for help. The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types C66(FCC ID: 2AC6AC66W) has also been tested against this SAR limit. The exposure standard for wireless mobile hotspots employs a unit of measurement known asthe Specific Absorption Rate, or SAR.
- Page 25 Declaration of Conformity Hereby, Shenzhen Chainway Information Technology Co., Ltd. declares that the radio equipment type C66 is in compliance with directive 2014/53/EU The declaration of conformity is available at the following internet address: www.chainway.net Specific Absorption Rate (SAR) • Your device is tested to comply with applicable requirements and regulations of the European Unionof human exposure to radio wave.
- Page 26 UK(N Frequency bands and power Operation Bands Max.Power Frequency 2402-2480 EIRP 11.93 Bluetooth 2.4GHz 2412- EIRP 18.25 2.4GHz 2472MHz 5180- EIRP 18.30 5240MHz 5260- EIRP 17.39 Wi-Fi 5320MHz 5GHz 5500- EIRP 17.62 5700MHz 5745- EIRP 13.80 5825MHz 865- Pe.r.p. RFID 868MHz 23.58 dBm Android is a trademark of Google LLC.
