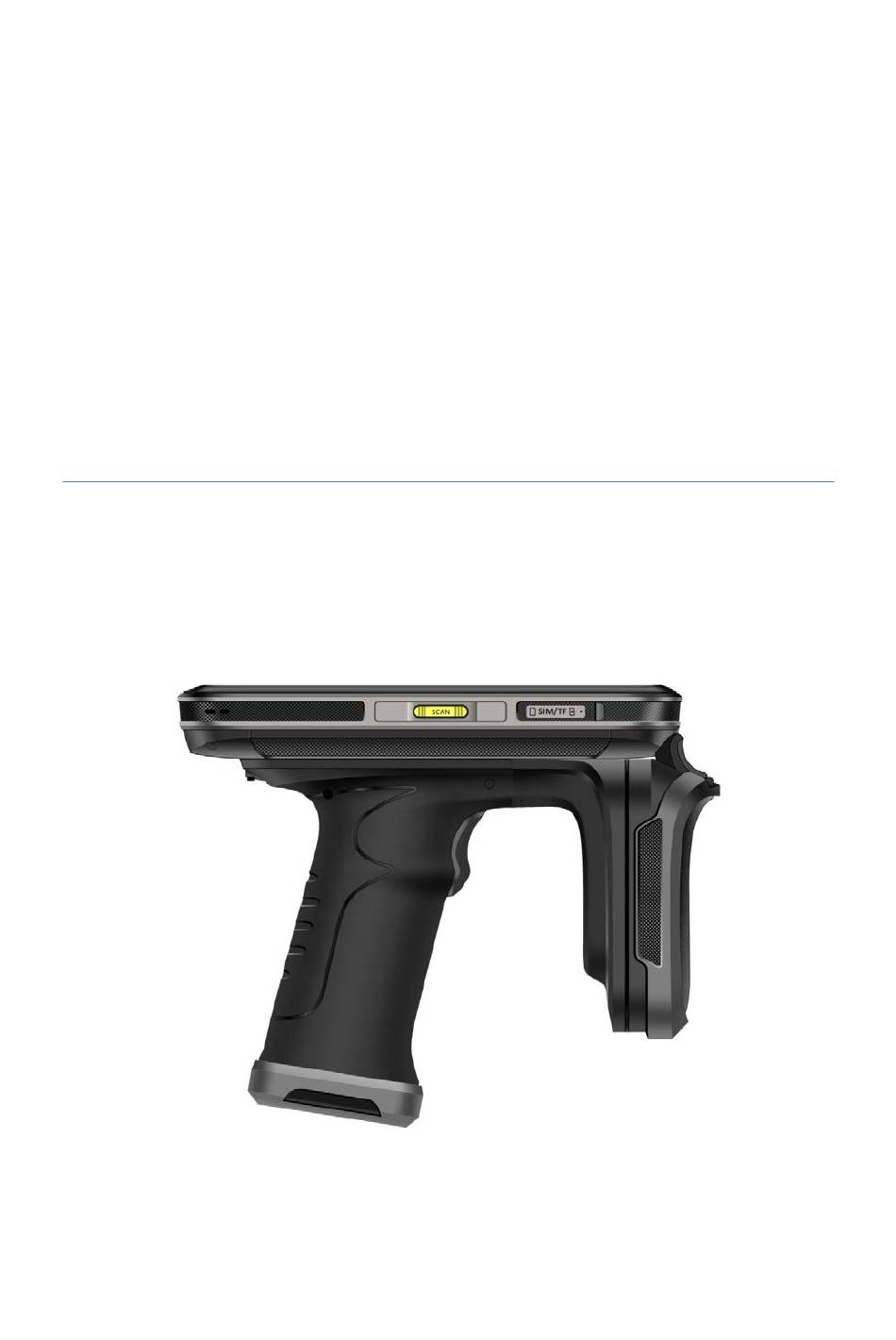

- Page 1 SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO.,LTD Mobile Data Terminal C72 User Manual ...
-
Page 2: Table Of Contents
Contents Statement ..........................2 Chapter 1 Product Intro ...................... 3 1.1 Intro ........................3 1.2 Precaution before using battery ................4 1.3 Charger ......................... 5 1.4 Notes ........................6 Chapter 2 Installation instructions ..................7 2.1 Appearance ....................... -
Page 3: Statement
Chainway. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or... -
Page 4: Chapter 1 Product Intro
Chapter 1 Product Intro 1.1 Intro C72 device is a smart mobile PDA that integrated with various features such as wireless communication, data acquisition, wireless transmission, data processing and UHF scanning etc. It is configured with Andriod 8.1 OS and it possesses high reliability and expansibility. -
Page 5: Precaution Before Using Battery
1.2 Precaution before using battery Do not leave battery unused for long time, no matter it is in device or inventory. If battery has been used for 6 months already, it should be check for charging function or it should be disposed correctly. ... -
Page 6: Charger
1.3 Charger The charger type is GME10D-050200FGu, output voltage/current is 5V DC/2A. The plug considered as disconnect device of adapter. -
Page 7: Notes
1.4 Notes Note: Using the incorrect type battery has danger of explosion. Please dispose the used battery according to instructions. Note: Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited. -
Page 8: Chapter 2 Installation Instructions
Chapter 2 Installation instructions 2.1 Appearance... - Page 9 Buttons instruction Button Description 1.Power Located on left side, press to ON/OFF device. Side Located on left side, its function can be defined by software. 2.Function key button Scanning button located on both sides. There are two scanning 3.SCAN buttons. Display main menu.
-
Page 10: Install Micro Sd And Sim Cards
2.2 Install Micro SD and SIM cards The cards sockets are showing as follows:... -
Page 11: Battery Charge
2.3 Battery charge By using USB Type-C contact, the original adaptor should be used for charging the device. Make sure not to use other adaptors to charge the device. -
Page 12: Buttons And Function Area Display
2.4 Buttons and function area display C72 has 4 side buttons, 4 main buttons and trigger on pistol, UHF scanning area, 2D scanning module, HD camera and flashlight locate on the top. -
Page 13: Chapter 3 Call Function
Chapter 3 Call function 3.1 Calling numbers 1. Click icon 2. Click number key to input phone numbers. 3. Click icon to call. 4. Click icon to end call. 3.2 Contacts 1. Click contacts to open contacts list. 2. Click icon to add new contacts. -
Page 14: Chapter 4 Barcode Reader-Writer
Chapter 4 Barcode reader-writer 1. In App Center, to open 2D barcode scan test. 2. Press “SCAN” button or click scan key to start scanning, the parameter “Auto interval” can be adjusted. Caution: Please scan codes in correct way otherwise the scanning will be failed. -
Page 15: Chapter 5 Nfc Read And Write
Max. radiant power: 0.6mW Wave length: 655nM IEC 60825-1 (Ed.2.0). 21CFR 1040.10 and 1040.11 standard. Chapter 5 NFC read and write 1. In App Center, open NFC to test. 2. Press “Read” button to read a NFC tag or ‘Write’ to write the NFC tag. -
Page 17: Chapter 6 Rfid Reader
Chapter 6 RFID reader 6.1 UHF Click App Center, open “UHF” to read and write, kill and lock UHF tag. -
Page 18: Chapter 7 Other Functions
Chapter 7 Other functions 7.1 PING tool 1. Open “PING” in App Center. 2. Setup PING parameter and select external/internal address. -
Page 19: Bluetooth
7.2 Bluetooth 1. Open “BT Printer” in App Center. 2. In the list of detected devices, click the device that you want to pair. 3. Select printer and click “Print” to start printing contents. -
Page 20: Gps
7.3 GPS 1. Click “GPS” in App Center to open GPS test. 2. Setup GPS parameters to access GPS information. -
Page 21: Volume Setup
7.4 Volume setup 1. Click “Volume” in App Center. 2. Setup volume by requirements. -
Page 22: Sensor
7.5 Sensor 1. Click “Sensor” in App Center. 2. Setup the sensor by requirements. -
Page 23: Keyboard
7.6 Keyboard 1. Click “Keyboard” in App Center. 2. Setup and test the main value of the device. -
Page 24: Network
7.7 Network 1. Click “Network” in App Center. 2. Test WIFI/Mobile signal by requirements. -
Page 25: Keyboard Emulator (Optional)
7.8 Keyboard emulator (optional) The keyboard emulator can be used in multiple operating background and output formats directly. And it includes Prefix/Suffix/Enter/TAB. Please check Keyboard emulator manual for more details. -
Page 26: Chapter 8 Device Characteristic
Chapter 8 Device characteristic Physical characteristics 164.2mm*78.8mm*17mm Size Weight <654g(battery included) Display 5.2 inch，IPS FHD 1920*1080P Touch panel 4 main keyboards, 1 power button, 2 scan buttons, 1 multi- function button Battery Li-ion, rechargeable, 8000mAh Expansion Supports up to 128GB Micro SD card Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card Audio... - Page 27 WPAN Bluetooth 4.0 The device not support the NII straddle channels: 144(20MHz), 142(40MHz), 138(80MHz) Data collection Barcode scanning 2D scanning engine(Zebra SE4710/Zebra SE4750MR/Honeywell N6603) RFID NFC 13.56Mhz 902-928MHz RFID Developing Environment Chainway software develop kit Language Java Develop Eclipse/Android Studio...
-
Page 28: Appendix
Appendix... - Page 29 § 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 30: Sar Information
SAR Information Specific Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health.
