Location

Use the following guidelines to select a suitable location for
these units.
1. Unit is designed for outdoor installation only.
2. Condenser must have an unlimited supply of air. Where a
choice of location is possible, position unit on either north
or east side of building.
3. For ground level installation, a level pad or slab should be
used. The thickness and size of the pad or slab used
should meet local codes and unit weight. Do not tie the
slab to the building foundation.
4. For roof top installation, be sure the structure can support
the weight of the unit plus any field installed components.
Unit must be installed on a level roof curb or appropriate
angle iron frame providing adequate support under the
compressor/condenser section.
5. Maintain level tolerance of unit to 1/8" maximum.
Do not permit overhanging structures or shrubs to
obstruct condenser air discharge outlet, combustion air
inlet or vent outlets.
Clearances
All units require certain clearances for proper operation and
service. Refer to Table 4 for the clearances required for
construction, servicing and proper unit operation.

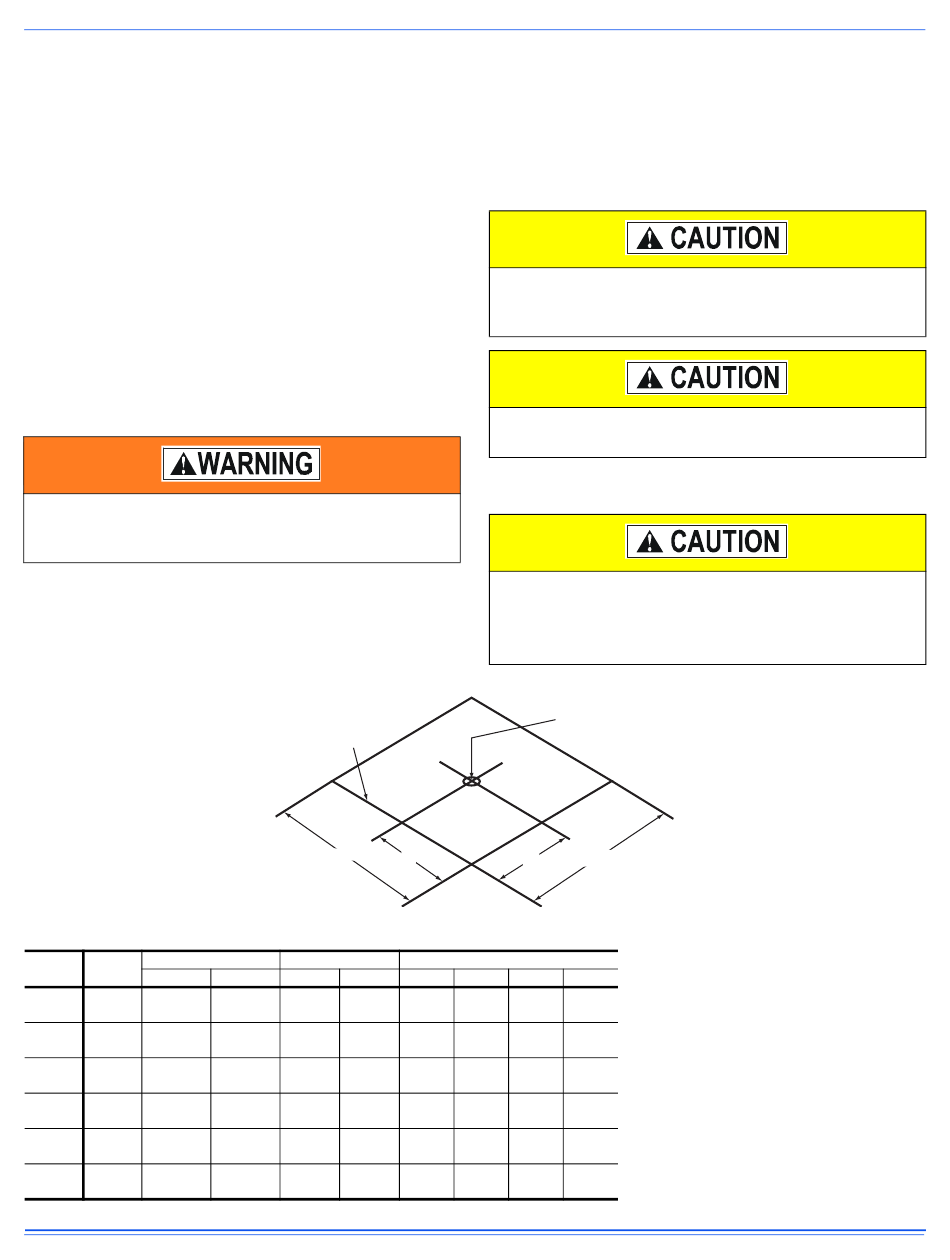

Figure 2: Unit 4 Point Load Weight
Weight (lbs.)
Size
Model
(Tons) Shipping Operating
024
DEX 360
(2.0)
030
DEX 395
(2.5)
036
DEX 405
(3.0)
042
DEX 415
(3.5)
048
DEX 445
(4.0)
060
DEY 465
(5.0)
4
FRONT
OF
UNIT
"A"
49-1/8
X
Center of Gravity
X Y
355 22.25 25
390 22.25 25
400 22.25 25
410 22.25 25
440 22.25 25
460 22.25 25

Rigging And Handling

Exercise care when moving the unit. Do not remove any
packaging until the unit is near the place of installation. Rig the
unit by attaching chain or cable slings to the lifting holes
provided in the base rails. Spreader bars, whose length
exceeds the largest dimension across the unit, MUST be used
across the top of the unit.
If a unit is to be installed on a roof curb other than a
®
York roof curb, gasketing must be applied to all
surfaces that come in contact with the unit underside.
Before lifting, make sure the unit weight is distributed
equally on the rigging cables so it will lift evenly.
Units may be moved or lifted with a forklift. Slotted openings in
the base rails are provided for this purpose.
All panels must be secured in place when the unit is
lifted.
The condenser coils should be protected from rigging
cable damage with plywood or other suitable material.
"D"
CENTER OF
GRAVITY
"B"
47-1/4
Y
4 Point Load Location (lbs.)
A B C D
96 84 81 93
106 92 89 102
109 95 92 105
111 97 94 108
120 104 101 115
125 109 105 121
288429-YIM-B-0408
"C"
Johnson Controls Unitary Products
