Armacost Lighting 513115 Quick Start Manual

ProLine Single Color
LED Controller
With RF Remote Control
Model # 513115
Introduction
This LED controller is designed to drive constant voltage single color
LED products such as LED tape light or LED fixtures in a voltage range
of 5–24 volts DC. The receiver works with the RF wireless remote
control, which allows the user to adjust LED brightness.

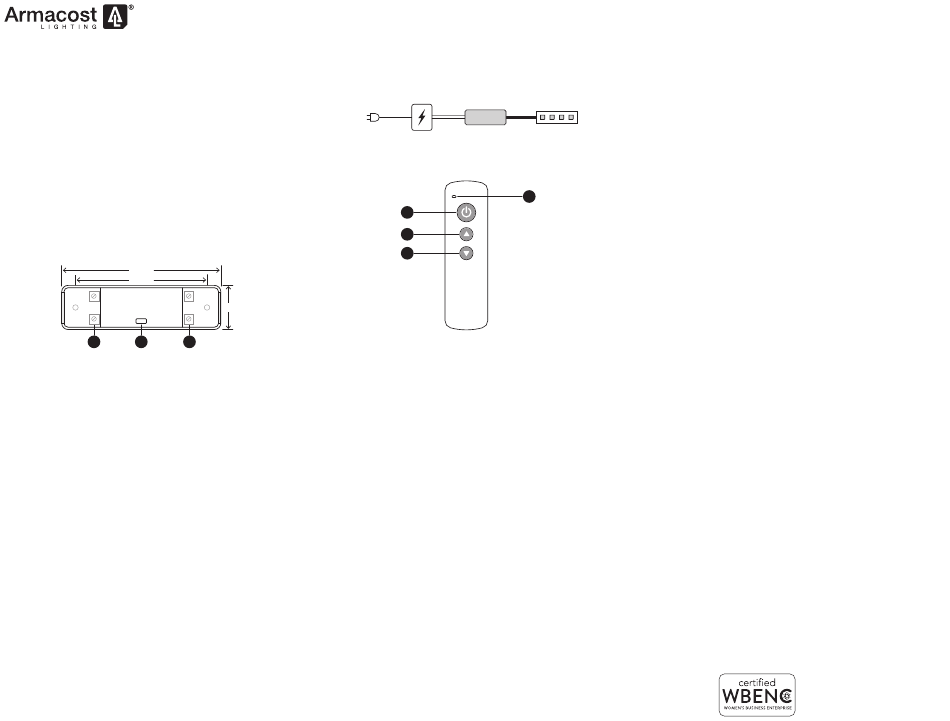

Receiver & wiring
87mm
72mm
1 3
1. Input – from power supply
The controller input and output voltage range is 5–24 volts DC.
Make sure the LED lighting voltage is within this range and
below the rated wattage of the power supply. Connect input
wires from the power supply to the controller as indicated by
the polarity markings on the controller (+ to + and – to –).
2. Output – to LED lighting
Observe polarity indicated on the controller when
connecting to LED lighting (+ to + and – to –).
Make sure the voltage of the LED lighting is the same as the power
supply and the maximum load doesn't exceed that of the controller.
CAUTION: Shorting of output cables could cause permanent damage
to controller. Make sure cables are well insulated from each other.
3. Controller status indicator
This light shows the controller status as follows:
Steady green: Normal operation
Single green blink: Command received.
Long single green blink: Mode or color cycle edge.
Long single yellow blink: Reach brightness limit.
Red flash: Overload protection.
Yellow flash: Over heat protection.
Green flash 3 times: New remote controller paired.
4. Wiring diagram
Connect the power supply to the controller input and the controller
output to the LED lighting. The output voltage of the power supply
must be the same as the voltage of the LED lighting. Make sure all
power cables are conected securely and insulated before powering on.
100/230V
AC Power
Remote Control
24mm
2
4. On / Off
Press this key to turn on controller. Press and hold to turn off.
The controller will remember the controller state when powered
off, and will return to that state when powered back on.
5/ 6. Brightness adjustment
Press the "▲" and "▼" keys to adjust brightness.
7. Remote indicator
When pressing keys, the indicator blinks if the remote
is working properly. If the indicator flashes slowly when
pressing keys, battery power is low and it needs to
be replaced. Replace with a CR2032 battery.
Remote control operation
8. Using the remote control
Pull out plastic battery insulation tab before use. The RF wireless remote
will work through walls and doors. Do not install in a metal enclosure.
9. Pairing with a new remote control
The remote control and receiver are already paired,
but up to five remotes can be paired to one receiver.
To pair a new remote:
To pair a new remote:
1. Disconnect power to receiver and wait five seconds.
2. Reconnect power.
3. Within ten seconds, press the ON/OFF
and "▼" keys simultaneously for about three seconds.
12–24V DC
Output LED LED
Power Supply Controller Lighting
12–24V DC 12–24V DC
7
4
5
6
10. De-pairing remotes
To de-pair a remote control, pair the remote you wish to continue using
with the controller and any other paired remotes will be de-paired.
Safety Protection
The controller has a function to prevent it from being damaged
by mis-wiring, output short circuit, overloading, or overheating.
It will automatically shut down under these extreme conditions
until safe operating conditions are restored. To avoid shutdowns,
make sure the installed LED lighting is compatible with constant
voltage, is in the rated range of the controller, and the cables
are well connected and insulated. Also, install the controller
with proper ventilation and heat dissipation in mind.
Specifications
Output mode ................................................... PWM constant voltage
Working voltage ................................................................ 5–24V DC
Rated output current .............................................................. 1x10A
Brightness grade .................................................................11 levels
PWM grade .................................................................... 4000 steps
Overload protection ..................................................................... Yes
Overheat protection ..................................................................... Yes
Remote frequency .......................................................... 433.92MHz
Remote control range .......................... up to 50 ft./15m in open areas
Controller dimensions ....................................3.41 X 0.95 X 0.58 in./
..........................................................................87 X 24 X 14.5mm
Remote dimensions .........................................1.38 X 4.8 X 0.37 in./
.............................................................................122 X 35 X 9mm
Customer support
Email: support@armacostlighting.com
Phone: 410-354-6000
Monday–Friday, 9 a.m.–5 p.m., ET
Warranty
3-year limited warranty. This product is for dry location use only.
Improper installation, improper powering, abuse, or failure to use this
device for its intended purpose will void warranty. Proof of purchase is
required for all returns. Questions? Email support@armacostlighting.com.
