Armacost Lighting 723422 Manual

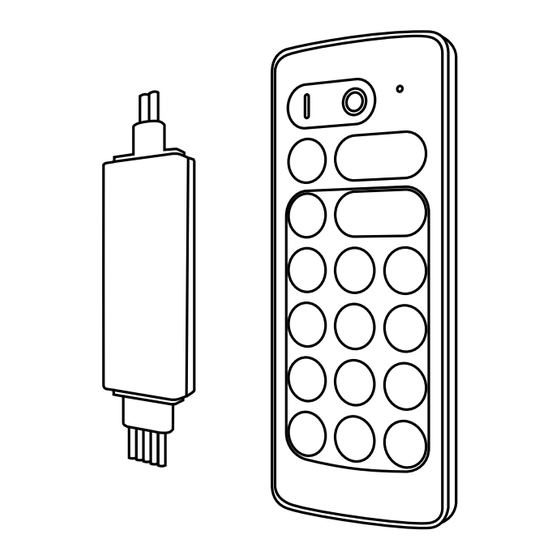

Slimline RGB+W Color LED Controller
With RF Remote Control
Model # 723422
Introduction
This LED controller is designed to drive
constant voltage RGB+White LED products
Wireless Ultra Wide Voltage
Remote Compact Range
such as LED tape light or LED fixtures in a
voltage range of 5–24 volts DC. The receiver
works with the RF wireless remote control,
which allows the user to choose between
multiple colors, adjust the LED brightness,
Memory Overheat
and select dynamic effects.
Function Protection
Safety information
INGESTION HAZARD: This product contains
■
a button cell or coin battery.
DEATH or serious injury can occur if ingested.
■
A swallowed button cell or coin battery can
■
cause Internal Chemical Burns in as little as
2 hours.
KEEP new and used batteries OUT OF REACH
■
OF CHILDREN.
Seek immediate medical attention if a battery is suspected to be
■
swallowed or inserted inside any part of the body.
Remove and immediately recycle or dispose of used batteries
■
according to local regulations and keep away from children. Do NOT
dispose of batteries in household trash or incinerate.
Even used batteries may cause severe injury or death.
■
Call a local poison control center for treatment information.
■
Use only CR2032 DC 3V replacement battery.
■
Non-rechargeable batteries are not to be recharged.
■
Do not force discharge, recharge, disassemble, heat above 113° F or
■
incinerate. Doing so may result in injury due to venting, leakage or
explosion resulting in chemical burns.
Ensure the batteries are installed correctly according to polarity (+ and –).
■
Do not mix old and new batteries, different brands or types of
■
batteries, such as alkaline, carbon-zinc, or rechargeable batteries.
Remove and immediately recycle or dispose of batteries from equipment
■
not used for an extended period of time according to local regulations.
Always completely secure the battery compartment. If the battery
■
compartment does not close securely, stop using the product, remove
the batteries, and keep them away from children.

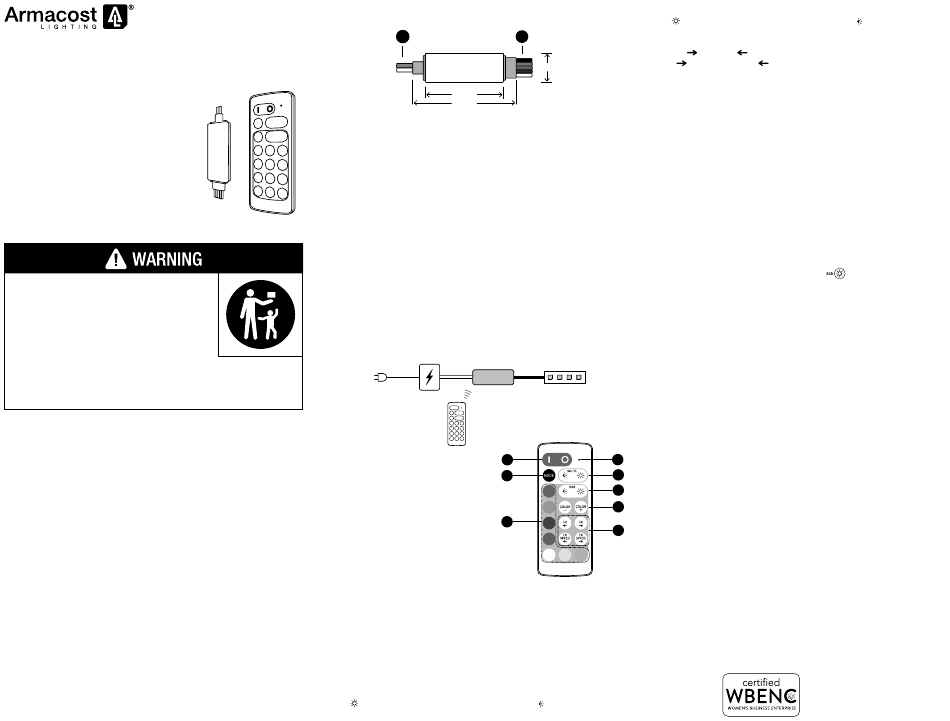

Receiver & wiring
1
38mm
50mm
1. Input – from power supply
The controller input and output voltage range is 5–24 volts DC. Make sure
the LED lighting voltage is within this range and below the rated wattage of
the power supply. Connect input wires from the power supply to the controller
as indicated by the polarity markings on the controller (+ to + and – to –).
2. Output - to LED lighting
Observe polarity indicated on the controller when connecting to LED lighting
(+ to +, G to G, R to R, B to B, and W to W).
Make sure the voltage of the LED lighting is the same as the power supply
and the maximum load doesn't exceed that of the controller.
CAUTION: Shorting of output cables could cause permanent damage to
controller. Make sure cables are well insulated from each other.
3. Wiring diagram
Connect the power supply to the controller input and the controller output
to the LED lighting. The output voltage of the power supply must be the
same as the voltage of the LED lighting. Make sure all power cables are
conected securely and insulated before powering on.
5–24V DC
100/230V Output LED
AC Power Power Supply Controller
5–24V DC
Remote
Control
Remote Control
4
4. On / Off
5
Press the "|" key to turn on controller or
the "0" key to turn off. The controller will
remember the controller state when powered
off, and will return to that state when
7
powered back on.
5. Mode selection
Press this key to switch between RGB, white,
and RGB+white mode. If the RGB mode is
selected, the white channel will be disabled,
and if the white mode is selected, RGB channel will be disabled.
In RGB+White mode all channels are enabled.
6. Select static RGB color
Press the "COLOR+" and "COLOR–" keys to scroll through the preset library
of colors.
7. Shortcut color keys
Press to select preset colors.
8. White brightness control
Press to increase white LED brightness and press
9. RGB brightness control
Press to increase RGB LED brightness and press
2
10. Dynamic effect
Press "FX
SPEED " and "FX SPEED
15mm
11. Remote indicator
When pressing keys, the indicator blinks if the remote is working properly.
If the indicator flashes slowly when pressing keys, battery power is low and
it needs to be replaced. Replace with a CR2032 battery.
Remote control operation
12. Using the remote control
Pull out plastic battery insulation tab before use. The RF wireless remote
will work through walls and doors. Do not install in a metal enclosure.
13. Pairing with a new remote control
The remote control and receiver are already paired, but up to 5 remotes
can be paired to one receiver.
To pair a new remote:
1. Disconnect power to receiver and wait five seconds.
2. Reconnect power.
3. Within ten seconds, press the red and
about three seconds until the remote indicator flashes quickly.
14. De-pairing remotes
To de-pair a remote control, pair the remote you wish to continue using
with the controller and any other paired remotes will be de-paired.
Overheat protection
LED
Lighting
If the controller overheats, it will automatically shut down until the
5–24V DC temperature drops to a safe range. If this occurs, check to make sure the
output current is below the rated level.
Specifications
Output mode ........... PWM constant voltage
Working voltage ...................... 5–24V DC
Rated output current ........... 4x2A (8A max)
Static colors ......................................30
11
White brightness levels .......................10
Color brightness levels..........................5
8
Dynamic effects.................................42
9
Dynamic speed levels .........................10
Color preset keys .................................7
6
PWM frequency .............................1KHz
10
Customer support
Email: support@armacostlighting.com
Phone: 410-354-6000, Monday–Friday, 9 a.m.–5 p.m., ET
1-year limited warranty
This product is for dry location use only. Improper installation, improper
powering, abuse, or failure to use this device for its intended purpose will
void warranty. Proof of purchase is required for all returns. Questions?
Email support@armacostlighting.com.
to decrease it.
to decrease it.
" and "FX " to select the dynamic effect mode and "FX
" to adjust the effect speed.
keys simultaneously for
PWM physical grade .............. 4000 steps
Overheat protection ........................... Yes
Remote frequency ................ 433.92MHz
Remote control range ........... up to 50 ft./
................................. 15m in open areas
Controller dimensions ..............................
... 1.97 X 0.59 X 0.28 in. / 50 X 15 X 7mm
Remote dimensions ...............................
.......................... 3.41 X 1.42 X 0.329 in. /
...............................86.5 X 36 X 7.5mm
