Armacost Lighting 723421 Instructions

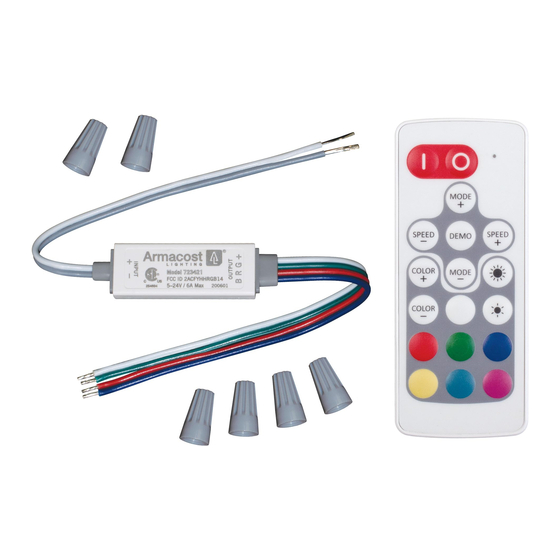

Slimline RGB Color LED Controller
With RF Remote Control
Model # 723421
Wireless Ultra Wide Voltage
Remote Compact Range
Memory Overheat
Function Protection
Introduction
This LED controller is designed to drive constant voltage RGB
LED products such as LED tape light or LED fixtures in a voltage
range of 5–24 volts DC. The receiver works with the RF wireless
remote control, which allows the user to choose between multiple
colors, adjust the LED brightness, and select dynamic effects.

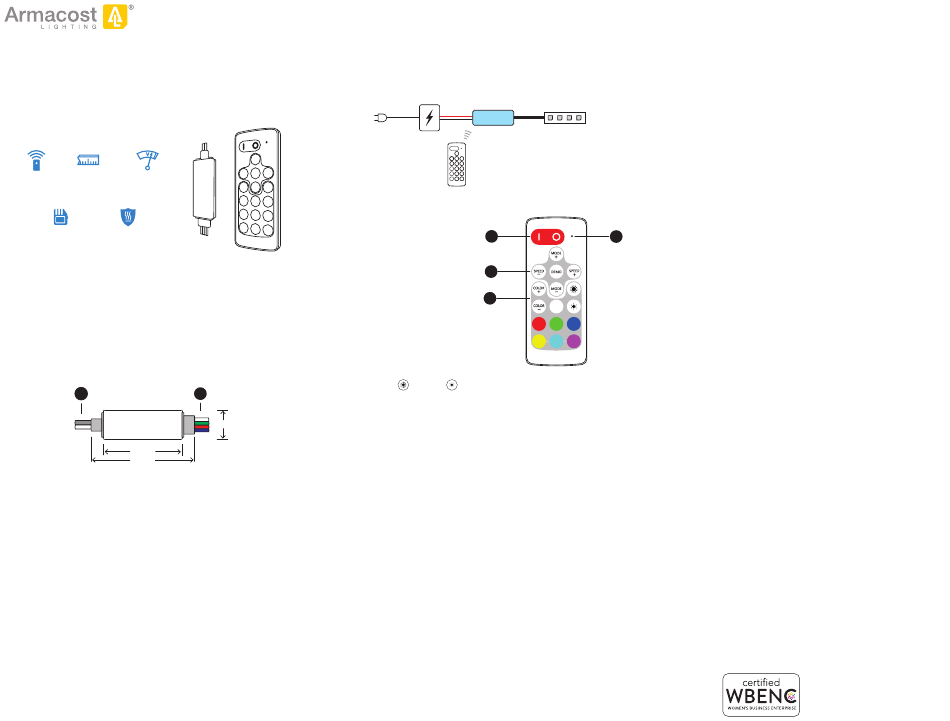

Receiver & wiring
1
38mm
50mm
1. Input – from power supply
The controller input and output voltage range is 5–24 volts DC.
Make sure the LED lighting voltage is within this range and
below the rated wattage of the power supply. Connect input
wires from the power supply to the controller as indicated by
the polarity markings on the controller (+ to + and – to –).
2. Output – to LED lighting
Observe polarity indicated on the controller when connecting
to LED lighting (+ to +, G to G, R to R, and B to B).
Make sure the voltage of the LED lighting is the same as the power
supply and the maximum load doesn't exceed that of the controller.
CAUTION: Shorting of output cables could cause permanent damage
to controller. Make sure cables are well insulated from each other.
3. Wiring diagram
Connect the power supply to the controller input and the controller
output to the LED lighting. The output voltage of the power supply
must be the same as the voltage of the LED lighting. Make sure all
power cables are conected securely and insulated before powering on.
100/230V
AC Power
Remote Control
4. On / Off
Press the "|" key to turn on
controller or the "0" key to turn
off. The controller will remember
the controller state when powered
off, and will return to that state
when powered back on.
5. RGB color setting
Press the "COLOR+" and
"COLOR–" keys to scroll through
all the color options. The colored
keys are shortcuts for preset
colors. Press the
2
6. Dynamic effects
Press "MODE+" and "MODE–" to select the dynamic effect mode
15mm
and "SPEED+" and "SPEED–" to adjust the effect speed.
Press the "DEMO" key to play the dynamic effects.
7. Remote indicator
When pressing keys, the indicator blinks if the remote is working properly.
If the indicator flashes slowly when pressing keys, battery power is low
and it needs to be replaced. Replace with a CR2032 battery.
Remote control operation
8. Using the remote control
Pull out plastic battery insulation tab before use. The RF wireless remote
will work through walls and doors. Do not install in a metal enclosure.
9. Pairing with a new remote control
The remote control and receiver are already paired,
but up to 5 remotes can be paired to one receiver.
To pair a new remote:
1. Disconnect power to receiver and wait five seconds.
2. Reconnect power.
3. Within ten seconds, press the "SPEED–" and
"SPEED+" keys simultaneously for about three
seconds until the remote indicator flashes quickly.
5–24V DC
Output LED LED
Power Supply Controller Lighting
5–24V DC 5–24V DC
Remote
Control
4
6
5
and the keys to adjust color brightness.
10. De-pairing remotes
To de-pair a remote control, pair the remote you wish to continue using
with the controller and any other paired remotes will be de-paired.
Overheat protection
If the controller overheats, it will automatically shut down until
the temperature drops to a safe range. If this occurs, check
to make sure the output current is below the rated level.
Specifications
Output mode ................................................... PWM constant voltage
Working voltage ................................................................ 5–24V DC
Rated output current .................................................. 3x2A (6A max)
Brightness levels ...........................................................................5
Static colors ................................................................................30
Dynamic effects...........................................................................43
Dynamic speed levels ...................................................................10
PWM frequency .......................................................................1KHz
7
PWM physical grade .......................................................... 256 steps
Overheat protection ..................................................................... Yes
Remote frequency .......................................................... 433.92MHz
Remote control range .......................... up to 50 ft./15m in open areas
Controller dimensions ....................................1.97 X 0.59 X 0.28 in./
...............................................................................50 X 15 X 7mm
Remote dimensions .....................................3.41 X 1.42 X 0.329 in./
.........................................................................86.5 X 36 X 7.5mm
Customer support
Email: support@armacostlighting.com
Phone: 410-354-6000
Monday–Friday, 9 a.m.–5 p.m., ET
Warranty
1-year limited warranty. This product is for dry location use only.
Improper installation, improper powering, abuse, or failure to use this
device for its intended purpose will void warranty. Proof of purchase is
required for all returns. Questions? Email support@armacostlighting.com.
armacostlighting.com
© 2023 Armacost Lighting.
All rights reserved.
230602
