Armacost Lighting ProLine 713426 Quick Start Manual

ProLine Wi-Fi RGB+W
Color LED Controller
With RF Remote Control
Model # 713426
Works with the Tuya Smart App,
available at the iOS and Google Play stores

Introduction

This LED controller is designed to work with constant voltage RGB+White LED
products such as LED tape light or LED fixtures in a voltage range of 12–24
volts DC. The receiver works with the RF wireless remote control, which allows
the user to choose between multiple colors, adjust the LED brightness, and
select dynamic effects.

Safety information

INGESTION HAZARD: This product contains
■
a button cell or coin battery.
DEATH or serious injury can occur if ingested.
■
A swallowed button cell or coin battery can
■
cause Internal Chemical Burns in as little as
2 hours.
KEEP new and used batteries OUT OF REACH OF CHILDREN.
■
Seek immediate medical attention if a battery is suspected to be
■
swallowed or inserted inside any part of the body.
Remove and immediately recycle or dispose of used batteries according
■
to local regulations and keep away from children. Do NOT dispose of
batteries in household trash or incinerate.
Even used batteries may cause severe injury or death.
■
Call a local poison control center for treatment information.
■
Use only CR2032 DC 3V replacement battery.
■
Non-rechargeable batteries are not to be recharged.
■
Do not force discharge, recharge, disassemble, heat above 113° F or
■
incinerate. Doing so may result in injury due to venting, leakage or
explosion resulting in chemical burns.
Ensure the batteries are installed correctly according to polarity (+ and –).
■
Do not mix old and new batteries, different brands or types of batteries,
■
such as alkaline, carbon-zinc, or rechargeable batteries.
Remove and immediately recycle or dispose of batteries from equipment not
■
used for an extended period of time according to local regulations.
Always completely secure the battery compartment. If the battery
■
compartment does not close securely, stop using the product, remove the
batteries, and keep them away from children.

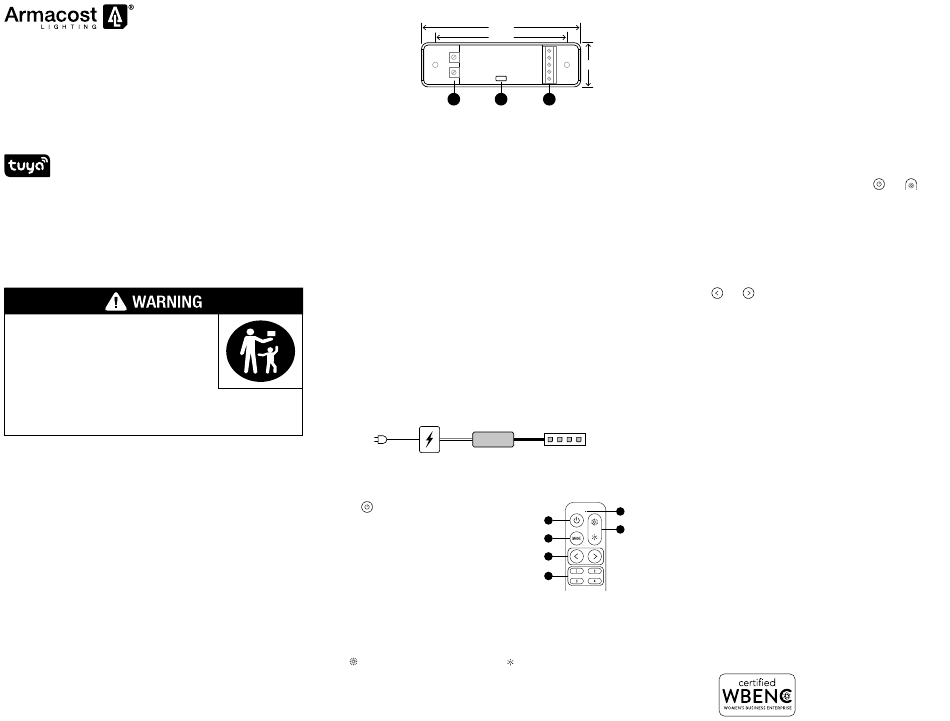

Receiver & wiring
1. Input – from
87mm
72mm
power supply
The controller input and
output voltage range is
12–24 volts DC. Make
sure the LED lighting
voltage is within this
1 3
range and below the
rated wattage of the
power supply. Connect input wires from the power supply to the controller as
indicated by the polarity markings on the controller (+ to + and – to –).
2. Output – to LED lighting
Observe polarity indicated on the controller when connecting to LED lighting
(+ to +, G to G, R to R, etc.).
Make sure the voltage of the LED lighting is the same as the power supply and
the maximum load doesn't exceed that of the controller.
CAUTION: Shorting of output cables could cause permanent damage to
controller. Make sure cables are well insulated from each other.
3. Controller status indicator
This light shows the controller status as follows:
Steady yellow: Remote only mode, Wi-Fi disconnected
Steady green: Remote and Wi-Fi mode
Single green blink: Command received
Long single yellow blink: Brightness or speed limit reached
Red flash: Overload protection
Yellow flash: Overheat protection
Green flash 3 times: Setup command received
4. Wiring diagram
Connect the power supply to the controller input and the controller output to the LED
lighting. The output voltage of the power supply must be the same as the voltage of the LED
lighting. Make sure all power cables are conected securely and insulated before powering on.
12–24V DC
100/230V Output LED
AC Power Power Supply Controller
12–24V DC
Remote Control
5. On / Off
Press the key to turn controller on or off. The controller
will remember the controller state when powered off, and
will return to that state when powered back on.

6. Mode selection

Press to switch between RGB, white and effects modes.

7. Color selection

When in RGB mode, scroll through available colors. In effects
mode, scroll through effects.
8. Favorites
When on a selected color press and hold to set that color to one of the four buttons.
9. Brightness control
Press to increase LED brightness and press
10. Remote indicator
When pressing keys, the indicator blinks if the remote is working properly. If
the indicator flashes slowly when pressing keys, battery power is low and it
needs to be replaced. Replace with a CR2032 battery.
11. Setting up a Wi-Fi connection
Install the Tuya app to set up a Wi-Fi connection. Before setup, make sure the
controller is in factory default mode and not connected to other wireless routers.
The controller indicator should glow yellow before it has been connected to Wi-Fi.

Remote control operation

24mm

12. Using the remote control

Pull out plastic battery insulation tab before use. The RF wireless remote will
2
work through walls and doors. Do not install in a metal enclosure.

13. Pairing with a new remote control

The remote control and receiver are already paired, but up to five remotes can be
paired to one receiver.
To pair a new remote:
1. Unplug power to receiver and wait five seconds.
2. Reconnect power and within ten seconds press the
simultaneously until the remote indicator flashes quickly.
14. De-pairing remotes
To de-pair a remote control, pair the remote you wish to continue using with
the controller and any other paired remotes will be de-paired.

15. Reset to factory default

To reset the Wi-Fi setting and remote control pairing:
1. Unplug the receiver. Plug in after five seconds.
2. Press the
within ten seconds of the receiver being powered on.
The indicator will flash yellow three times to confirm.
Safety Protection
The controller has a function to prevent it from being damaged by mis-wiring, output
short circuit, overloading, or overheating. It will automatically shut down under these
extreme conditions until safe operating conditions are restored. To avoid shutdowns,
make sure the installed LED lighting is compatible with constant voltage, is in the
rated range of the controller, and the cables are well connected and insulated. Also,
install the controller with proper ventilation and heat dissipation in mind.
LED
Lighting

Specifications

12–24V DC
Output mode ......... PWM constant voltage
Working voltage .................... 12–24V DC
Rated output current ........4x3A (12A max)
Static colors .......................30 (remote) /
.................................... 16 million (app)
Brightness levels ................10 (remote) /
............................................. 100 (app)
10
Dynamic effect modes ........34 (remote only)
5
Dynamic speed levels ........10 (remote only)
9
Scene / Timing function..........................
6
.......................... User defined (app only)
Music sensing color ...........Yes (app only)
7
Customer support
8
Email: support@armacostlighting.com
Phone: 410-354-6000, Monday–Friday, 9 a.m.–5 p.m., ET
3-year limited warranty
This product is for dry location use only. Improper installation, improper powering,
abuse, or failure to use this device for its intended purpose will void warranty. Proof of
purchase is required for all returns. Questions? Email support@armacostlighting.com.
to decrease it.
and
and keys simultaneously for about three seconds,
PWM physical grade .............. 4000 steps
Overload/heat protection .................... Yes
Remote frequency ................ 433.92MHz
Remote control range ........... up to 50 ft./
................................. 15m in open areas
Wi-Fi standard .............IEEE 802.11a/b/g
Controller dimensions ............................
........................ 3.43 X 0.95 X 0.59 in. /
...................................87 X 24 X 15mm
Remote dimensions ...............................
........................... 5.27 X 1.4 X 0.38 in./
.................................134 X 36 X 95mm
armacostlighting.com
© 2024 Armacost Lighting.
All rights reserved.
keys
240104
