Armacost Lighting ProLine 713429 Instructions

ProLine Wi-Fi RGB+WW
Color LED Controller
With RF Remote Control
Model # 713429
Works with the Tuya Smart App,
available at the iOS and Google Play stores
Introduction
This LED controller is designed to work with constant voltage RGB+WW
LED products such as LED tape light or LED fixtures in a voltage
range of 12–24 volts DC. The receiver works with the RF wireless
remote control, which allows the user to choose between multiple
colors, adjust the LED brightness, and select dynamic effects.

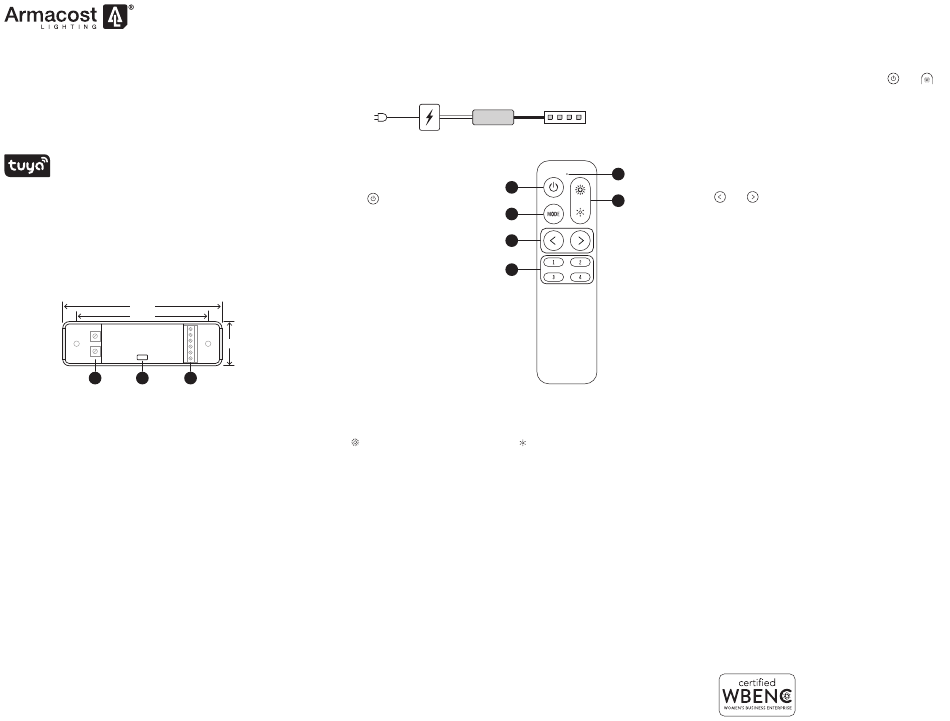

Receiver & wiring
87mm
72mm
1 3
1. Input – from power supply
The controller input and output voltage range is 12–24 volts DC.
Make sure the LED lighting voltage is within this range and below
the rated wattage of the power supply. Connect input wires
from the power supply to the controller as indicated by the
polarity markings on the controller (+ to + and – to –).
2. Output – to LED lighting
Observe polarity indicated on the controller when connecting
to LED lighting (+ to +, G to G, R to R, etc.).
Make sure the voltage of the LED lighting is the same as the power
supply and the maximum load doesn't exceed that of the controller.
CAUTION: Shorting of output cables could cause permanent damage
to controller. Make sure cables are well insulated from each other.
3. Controller status indicator
This light shows the controller status as follows:
Steady yellow: Remote only mode, Wi-Fi disconnected
Steady green: Remote and Wi-Fi mode
Single green blink: Command received
Long single yellow blink: Brightness or speed limit reached
Red flash: Overload protection
Yellow flash: Overheat protection
Green flash 3 times: Setup command received

4. Wiring diagram

Connect the power supply to the controller input and the controller
output to the LED lighting. The output voltage of the power supply
must be the same as the voltage of the LED lighting. Make sure all
power cables are conected securely and insulated before powering on.
100/230V
AC Power
Remote Control
5. On / Off
Press the
on or off. The controller will
remember the controller state when
powered off, and will return to that
state when powered back on.

6. Mode selection

Press to switch between RGB,
white and effects modes.

7. Color selection

When in RGB mode, scroll through
available colors. In white mode, scroll
24mm
through color temperatures. In effects
mode, scroll through effects.
8. Favorites
2
When on a selected color press and
hold to set that color to one of the
four buttons.

9. Brightness control

Press to increase LED brightness and press
10. Remote indicator
When pressing keys, the indicator blinks if the remote is working
properly. If the indicator flashes slowly when pressing keys, battery power
is low and it needs to be replaced. Replace with a CR2032 battery.

11. Setting up a Wi-Fi connection

Install the Tuya app to set up a Wi-Fi connection. Before setup,
make sure the controller is in factory default mode and not
connected to other wireless routers. The controller indicator
should glow yellow before it has been connected to Wi-Fi.
Remote control operation

12. Using the remote control

Pull out plastic battery insulation tab before use. The RF wireless remote
will work through walls and doors. Do not install in a metal enclosure.
12–24V DC
Output LED LED
Power Supply Controller Lighting
12–24V DC 12–24V DC
5
key to turn controller
6
7
8
to decrease it.

13. Pairing with a new remote control

The remote control and receiver are already paired,
but up to five remotes can be paired to one receiver.
To pair a new remote:
1. Unplug power to receiver and wait five seconds.
2. Reconnect power and within ten seconds press the
keys simultaneously until the remote indicator flashes quickly.

14. De-pairing remotes

To de-pair a remote control, pair the remote you wish to continue using
with the controller and any other paired remotes will be de-paired.

15. Reset to factory default

To reset the Wi-Fi setting and remote control pairing:
10
1. Unplug the receiver. Plug in after five seconds.
2. Press the and keys simultaneously for about three
9
seconds, within ten seconds of the receiver being powered on.
The indicator will flash yellow three times to confirm.
Safety Protection
The controller has a function to prevent it from being damaged
by mis-wiring, output short circuit, overloading, or overheating.
It will automatically shut down under these extreme conditions
until safe operating conditions are restored. To avoid shutdowns,
make sure the installed LED lighting is compatible with constant
voltage, is in the rated range of the controller, and the cables
are well connected and insulated. Also, install the controller
with proper ventilation and heat dissipation in mind.
Specifications
Output mode .... PWM constant voltage
Working voltage ............... 12–24V DC
Rated output current ... 5x2A (10A max)
Static colors .................. 30 (remote) /
................................16 million (app)
Brightness levels ........... 10 (remote) /
.........................................100 (app)
Dynamic effect modes ...34 (remote only)
Dynamic speed levels ...10 (remote only)
Scene / Timing function.....................
......................User defined (app only)
Music sensing color ...... Yes (app only)
Customer support
Email: support@armacostlighting.com
Phone: 410-354-6000
Monday–Friday, 9 a.m.–5 p.m., ET
Warranty
3-year limited warranty. This product is for dry location use only.
Improper installation, improper powering, abuse, or failure to use this
device for its intended purpose will void warranty. Proof of purchase is
required for all returns. Questions? Email support@armacostlighting.com.
and
PWM physical grade ..........4000 steps
Overload/heat protection ............... Yes
Remote frequency ............433.92MHz
Remote control range .......up to 50 ft./
............................ 15m in open areas
Wi-Fi standard ........ IEEE 802.11a/b/g
Controller dimensions .......................
....................3.43 X 0.95 X 0.59 in. /
.............................. 87 X 24 X 15mm
Remote dimensions ..........................
.......................5.27 X 1.4 X 0.38 in./
............................. 134 X 36 X95mm
