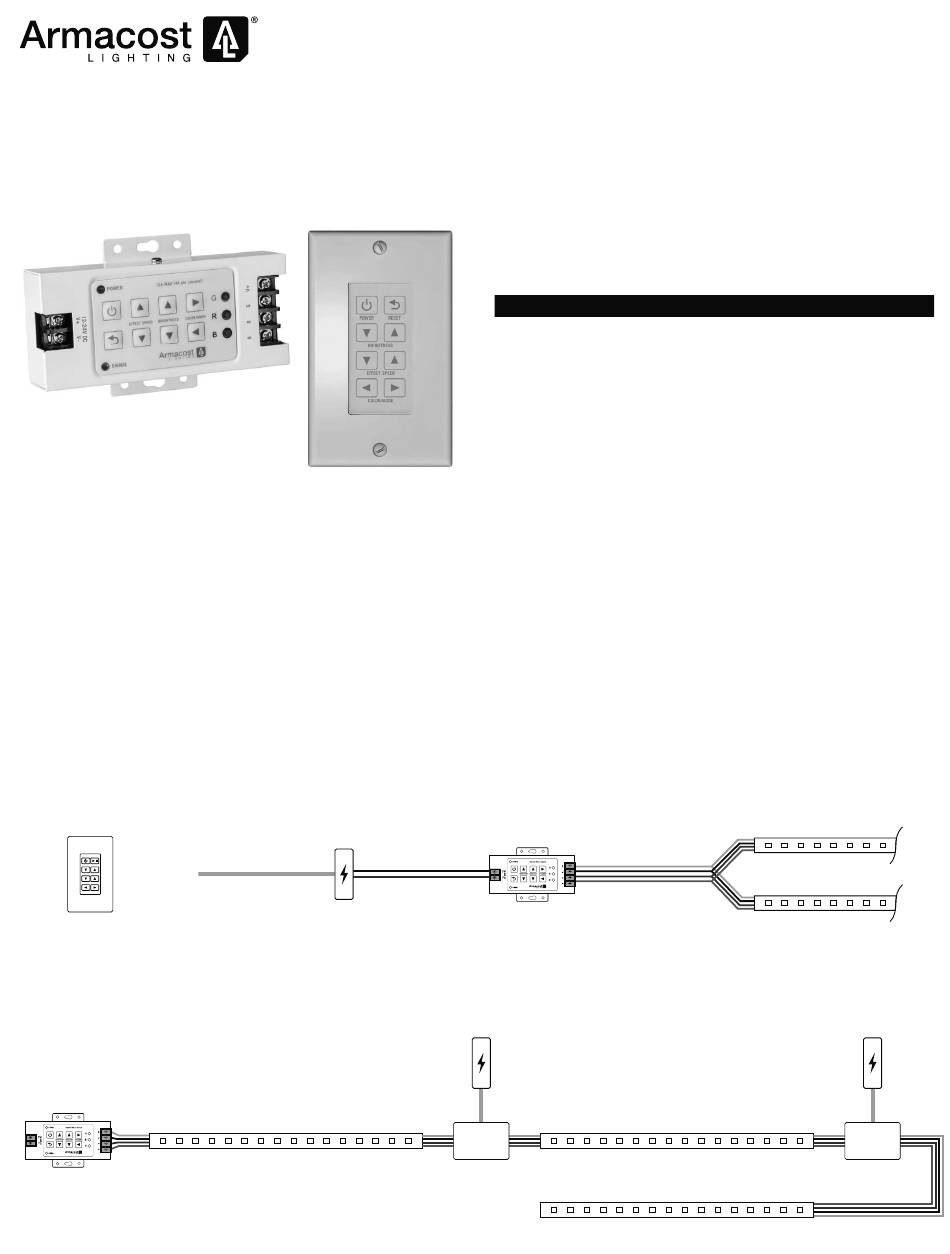

Armacost Lighting RGB8KEY-RF Instructions

30 Color RGB LED Controller With RF Wireless Touchpad
Model # RGB8KEY-RF
Precision dimming and color control for RGB color-changing LED lighting.
Professional grade, easy-to-use RGB LED
color controller. Works with Armacost
Lighting's RibbonFlex Pro component-based
RGB LED tape lighting system. Design custom
color and color-changing lighting installations to fi t any need. Using
radio frequency (RF) technology, the wireless touchpad transmitter works
through walls and doors up to 100 ft., eliminating the need to run extra
wires – useful where installing new cabling can be diffi cult.
Choose from warm, radiant glows to playful accents to dynamic color-
changing effects – or simply select a color to suit your mood.
The color controller is preprogrammed with a full spectrum of 30 designer
colors, from pastels to vivid bright color mixes. Colors, including fi ve
shades of white ranging from ultra warm to very cool bright white color
temperatures, are arranged in common color groupings for easy navigation.
All colors are fully dimmable.
Low voltage safe, the color controller receiver is direct wired inline and connects anywhere between your low voltage power supply and the RibbonFlex Pro
Color RGB LED Tape Lighting. Note: The lighting can be connected and tested while the controller is installed and powered on.
WIRELESS
TRANSMITTER
120V
AC
Fully expandable to control virtually endless lengths of RGB LED lighting when used with Armacost Lighting's RGB signal repeaters and additional, auxiliary
LED power supplies. Be sure to read and follow the instructions included with your particular RGB LED lighting to learn your model's section length limitation.
MASTER RGB
COLOR CONTROLLER
STANDARD
ELECTRONIC DC OUTPUT
POWER SUPPLY
Plug in or direct wire
AUXILIARY 12V
POWER SUPPLY
RGB LED TAPE LIGHT
(Section length depends
on tape light model)
The six color-changing effects are preprogrammed with desirable cross-
fading of colors. Effect speed is fully adjustable, from quick changing
colors to ultra slow dissolves where colors morph from one to another.

WIRING AND CONNECTING

For use only with 12V DC or 24V DC low voltage 3-channel RGB
■
LED lighting requiring 4 wire connections. Never connect this device
to 120V AC current.
Do not connect more than one RGB color controller receiver to a power
■
supply in the same circuit. Doing so will cause the lights to fl icker.
Suitable for RV and boat interior applications; this device can
■
be direct wired to an on-board 12V or 24V battery. Mount in dry
location, keep from spraying water.
Do not exceed 12 amp load (144 watts when used with 12V LEDs
■
or 288 watts when used with 24V LEDs).
All wiring must be in accordance with national and local electrical
■
codes, low voltage Class 2 circuit. If you are unclear as to how to
install and wire this product, contact a qualifi ed electrician.
Use only insulated staples or plastic ties to secure cords and wires.
■
Route and secure wires so they will not be pinched or damaged.
■
For wire runs inside of walls, use certifi ed CL2 or better cabling and
■
appropriate mounting hardware.
Do not install Class 2 low voltage wiring in the same runs as
■
AC main power. If AC and low voltage wires cross, keep them at
90-degree angles.
RGB CONTROLLER
RECEIVER
12 or
24V DC
RGB
SIGNAL
REPEATER
Save these instructions!
RGB LED TAPE LIGHT
12 or
24V DC
AUXILIARY 12V
POWER SUPPLY
RGB LED TAPE LIGHT
RGB LED TAPE LIGHT
RGB
SIGNAL
REPEATER
