Armacost Lighting ProLine 513115 Quick Start Manual

ProLine Single Color LED Controller
With RF Remote Control
Model # 513115
2. Output – to LED lighting
Observe polarity indicated on the controller when
connecting to LED lighting (+ to + and – to –).
Make sure the voltage of the LED lighting is the
same as the power supply and the maximum
load doesn't exceed that of the controller.
CAUTION: Shorting of output cables could cause
permanent damage to controller. Make sure
cables are well insulated from each other.
3. Status indicator
This light shows the working status of the
controller. It shows different events as following:
Steady green: Normal operation
Single green blink: Command received.
Long single green blink: Mode or color cycle edge.
Long single yellow blink: Reach brightness limit.
Red flash: Overload protection.
Yellow flash: Over heat protection.
Green flash 3 times: New remote controller paired.
Built-in Safety Protection
High Power
Compact Size
Wireless Remote
Wide Voltage Range
2
Introduction

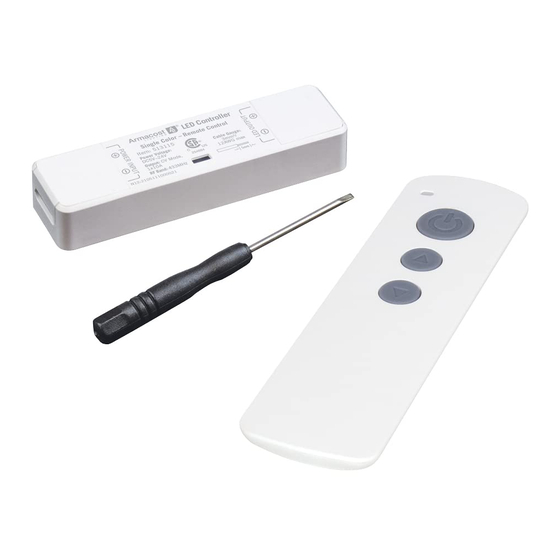

This LED controller is designed to drive constant
voltage single color LED products such as LED tape
light or LED fixtures in a voltage range of 5–24
volts DC. The receiver works with the RF wireless
remote control, which allows the user to adjust LED
brightness.

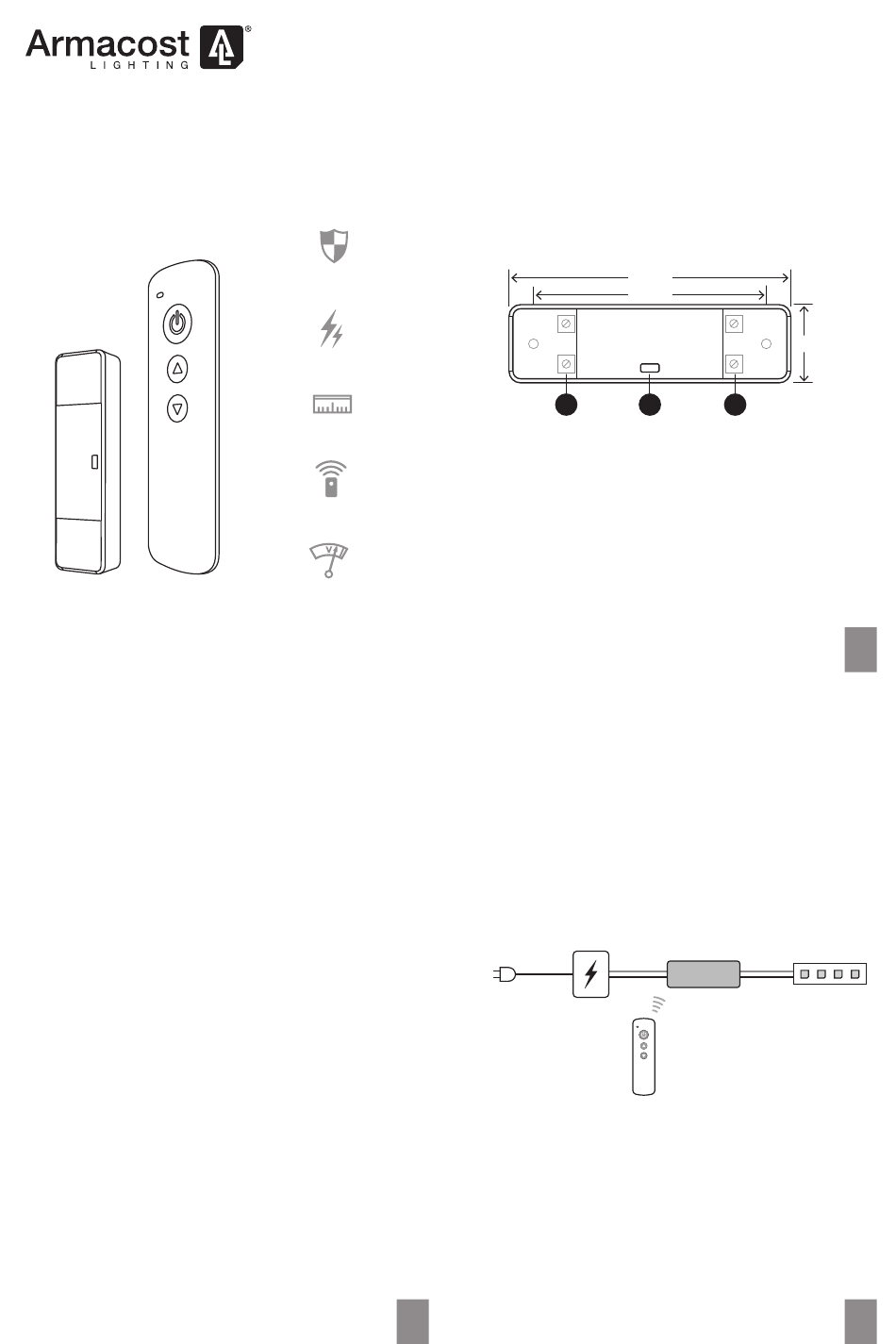

Receiver & wiring
87mm
72mm
1
1. Input – from power supply
The controller input and output voltage range is
5–24 volts DC. Make sure the LED lighting voltage is
within this range and below the rated wattage of the
power supply. Connect input wires from the power
supply to the controller as indicated by the polarity
markings on the controller (+ to + and – to –).
Wiring diagram
Connect the power supply to the controller input
and the controller output to the LED lighting.
The output voltage of the power supply must
be the same as the voltage of the LED lighting.
Make sure all power cables are conected
securely and insulated before powering on.
5–24V DC
100/230V Output
AC Power Power Supply
5–24V DC
24mm
3 2
LED
Controller Lighting
5–24V DC
Remote
Control
1
LED
3
