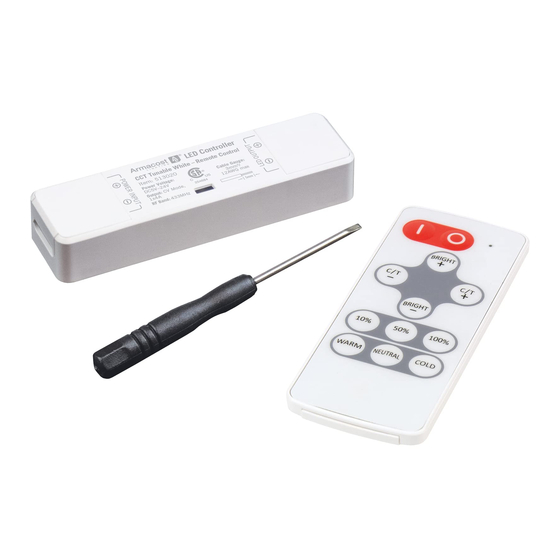

Armacost Lighting ProLine 513020 Quick Start Manual

ProLine CCT Tunable White
LED Controller
With RF Remote Control
Model # 513020
2. Output – to LED lighting
Observe polarity indicated on the controller when
connecting to LED lighting (+ to + and – to –).
Make sure the voltage of the LED lighting is the
same as the power supply and the maximum
load doesn't exceed that of the controller.
CAUTION: Shorting of output cables could cause
permanent damage to controller. Make sure
cables are well insulated from each other.
3. Status indicator
This light shows the working status of the
controller. It shows different events as following:
Steady green: Normal operation
Single green blink: Command received
Long single green blink: Mode or color cycle edge
Long single yellow blink: Reach brightness limit
Red flash: Overload protection
Yellow flash: Overheat protection
Green flash 3 times: New remote controller paired
Built-in Safety Protection
High Power
Compact Size
Wireless Remote
Wide Voltage Range
2
Introduction
This LED controller is designed to drive constant
voltage CCT Tunable White LED products such as
LED tape light or LED fixtures in a voltage range
of 5–24 volts DC. The receiver works with the RF
wireless remote control, which allows the user to
adjust LED brightness and select color temperature.

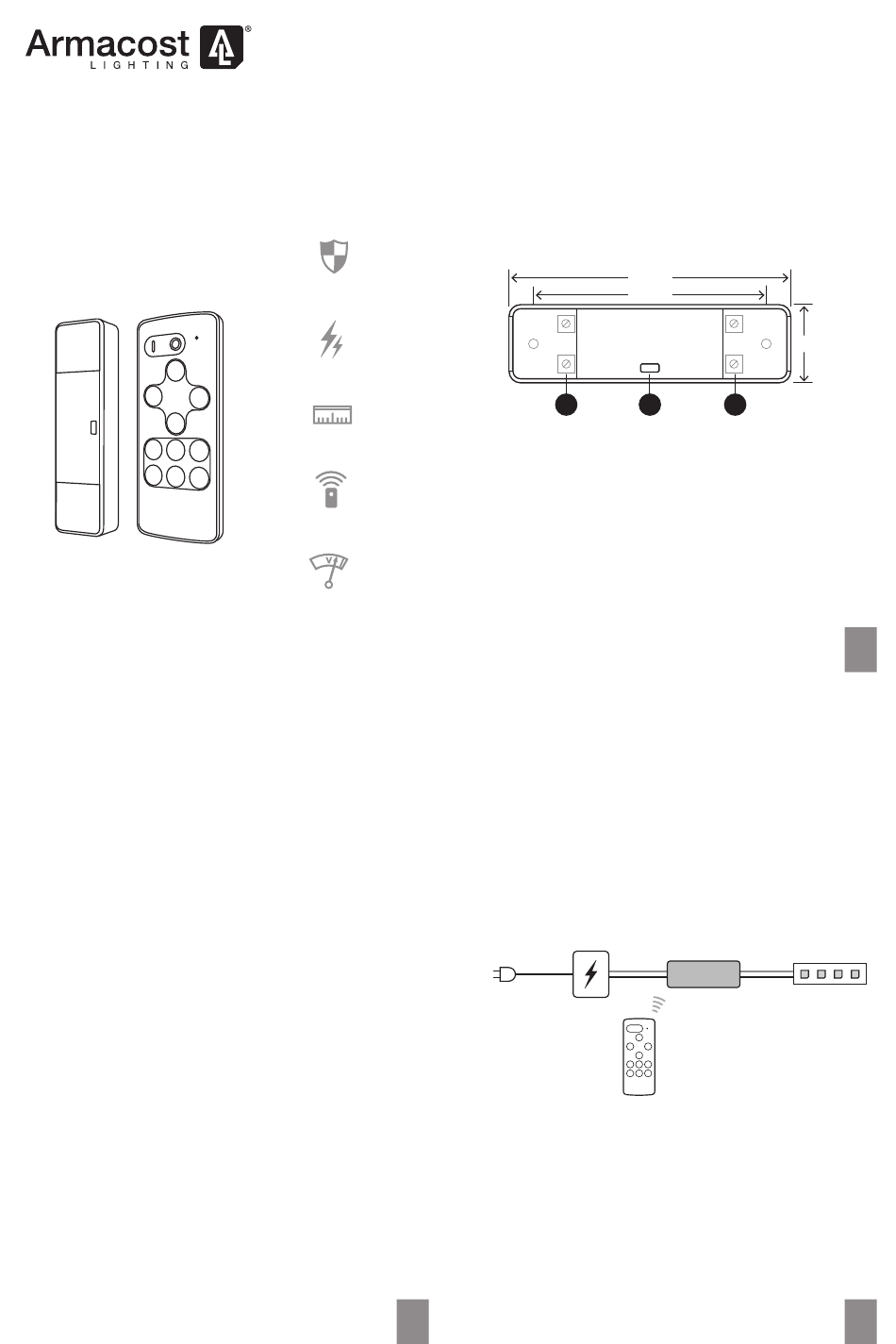

Receiver & wiring
87mm
72mm
1
1. Input – from power supply
The controller input and output voltage range is
5–24 volts DC. Make sure the LED lighting voltage is
within this range and below the rated wattage of the
power supply. Connect input wires from the power
supply to the controller as indicated by the polarity
markings on the controller (+ to + and – to –).
Wiring diagram
Connect the power supply to the controller input
and the controller output to the LED lighting.
The output voltage of the power supply must
be the same as the voltage of the LED lighting.
Make sure all power cables are conected
securely and insulated before powering on.
5–24V DC
100/230V Output
AC Power Power Supply
5–24V DC
24mm
3 2
LED
Controller Lighting
5–24V DC
Remote
Control
1
LED
3
