User Guide for the Polycom SoundStation IP 7000 Phone
1
1 - 6

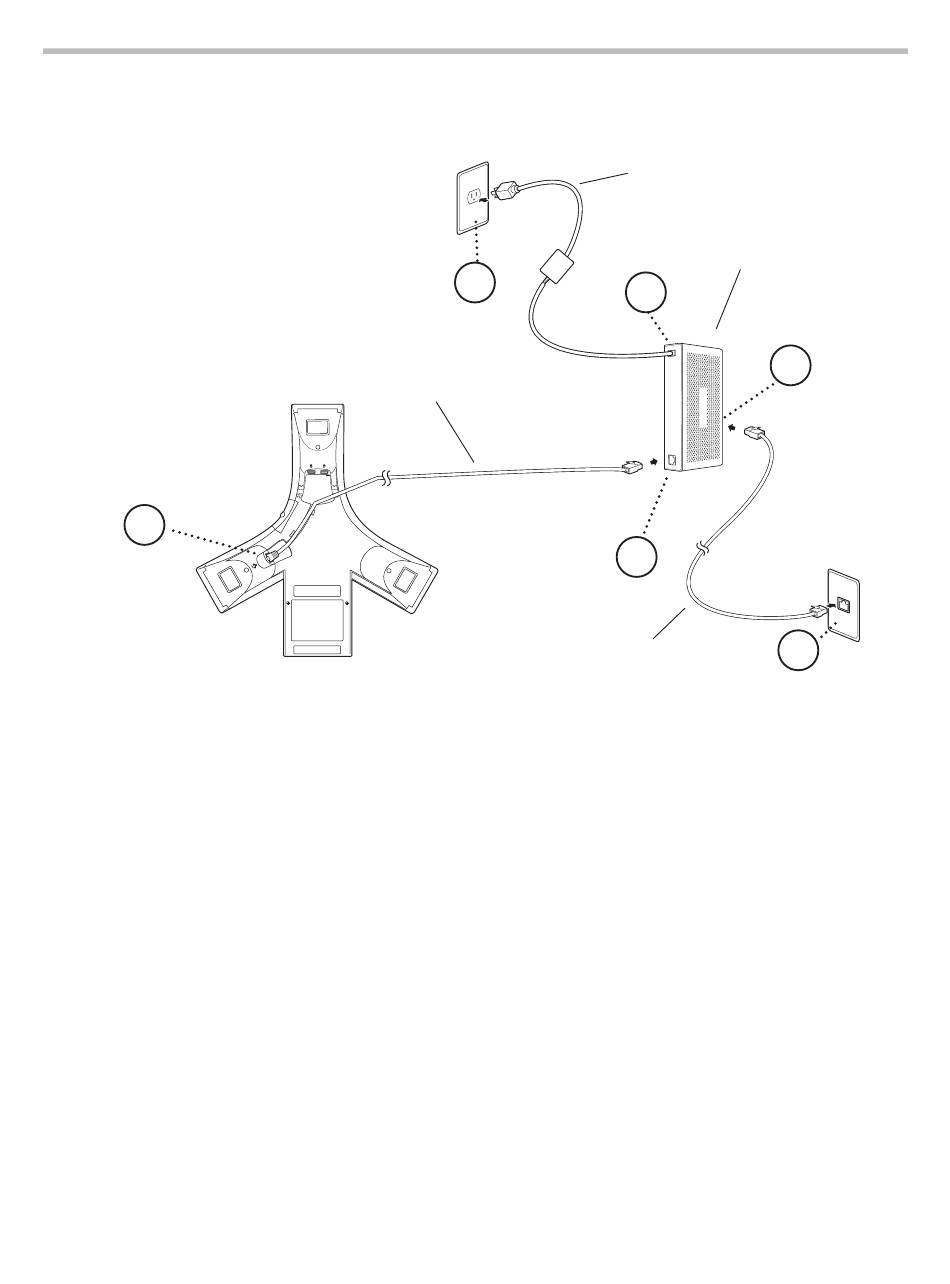

The following figure shows how to connect the phone to an AC power source
and the Multi-Interface Module.
12-foot
Network Cable (10-pin)
To connect the phone to an AC power source and the Multi-Interface Module:
1. Connect the 12-foot Network Cable (10-pin) to the LAN jack on the
phone.
2. Connect the other end of the 12-foot Network Cable (10-pin) to the
Multi-Interface Module.
3. Connect the 25-foot Network Cable to the Multi-Interface Module.
4. Connect the other end of the 25-foot Network Cable to an available
LAN port on the wall or hub/switch device port.
5. Connect the Power Adapter to the Multi-Interface Module.
6. Connect the other end of the Power Adapter (with the attached
Regional Power Cord) to the wall outlet.
Connecting the Phone Using AC Power (Two Phones, with Multi-Interface
Module)
If you have a larger room configuration, you can connect up to two phones
together. In this case, the phones act as one phone and display the same
information. For more information on how to use your phone when two
phones are connected, see your system administrator.
Power Adapter
6
5
2
25-foot
Network Cable
Multi-Interface
Module
3
4
