Altronix TROVE T2RM78S Installation Manual page 4

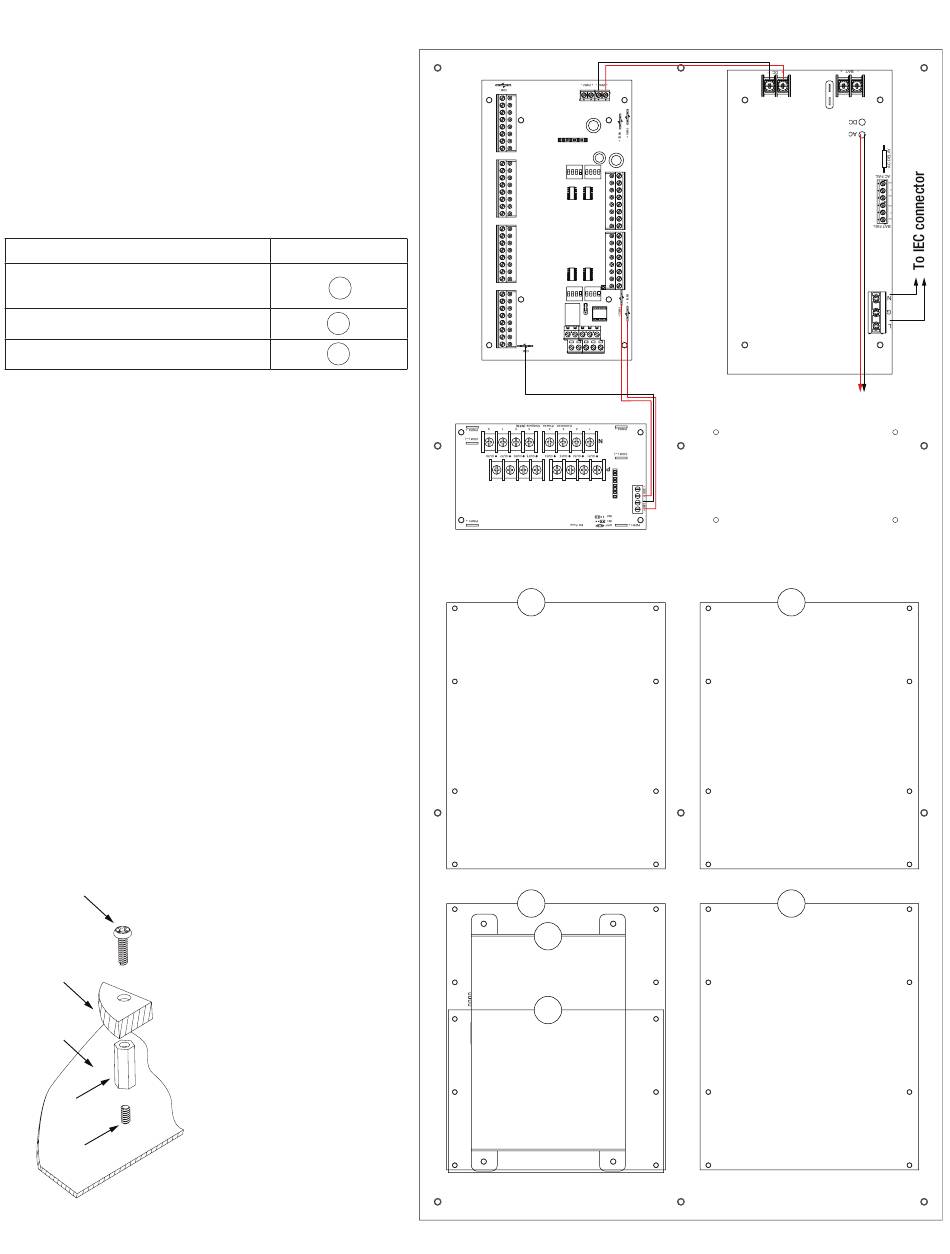

T2RM78S(D): Configuration of Mercury Boards:
1. Fasten spacers onto metal pems configuration
(A), (B) or (C) of backplane depending on the
access controller (Fig. 6, pg. 4).
2. Position access controller module over corresponding
spacers and fasten screws into spacers (Fig. 6a, pg. 4).
3. Mount backplane to enclosure with hardware.
Mercury Access Controller
Position Chart for the
Following Models:
Altronix/Mercury
LP1502, LP4502, MR52,
MR16IN, MR16OUT
LP2500, MUX8
Genetec Cloudlink
Fig. 6a
Pan Head Screw
Mercury Board
Backplane
Spacer
Pem
- 4 -
Pem Mounting
A
B
C
Altronix
ACMS8(CB)
Altronix VR6
is mounted
under
ACMS8(CB)
Altronix PDS8(CB)
A
A
C
B
Fig. 6
Altronix
Altronix
AL1024ULXB2
AL1024ULXB2
To LED lense
A
A
T2RM78S(D) Installation Guide
