Section A - Mounting an IQ System Controller 3 INT
Step 2:
Minimum clearance

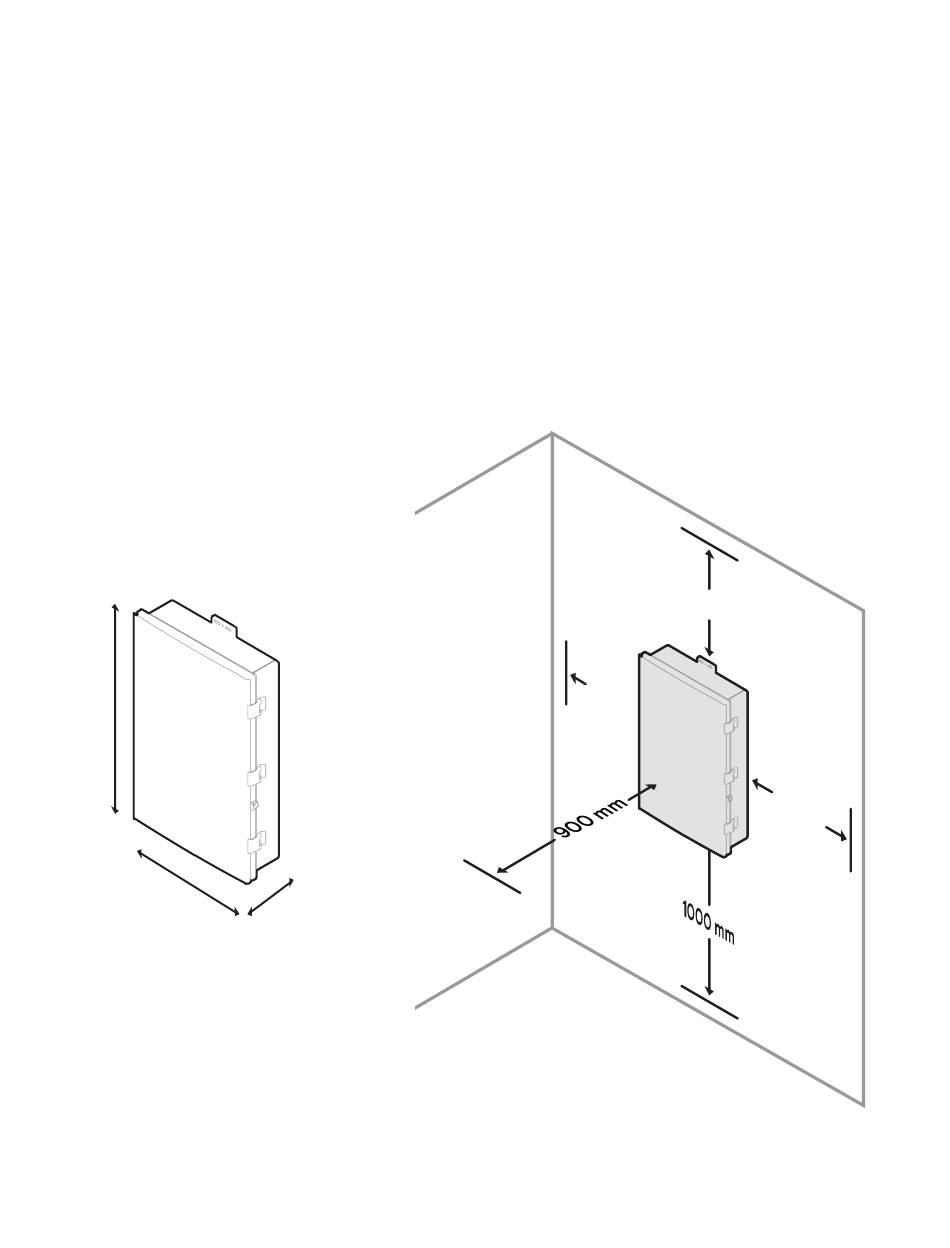

This product must be installed with clearance at the left, right, top,
bottom, and front of the product as shown in the figure.
Follow all local standards and regulations related to mounting of an
IQ System Controller 3 INT.
1 5 0
m m
7 6 0
1 5 0
m m
m m
1 5 0
m m
5 0 0
m m
m m
1 5 8
IQ System Controller 3 INT Quick Install Guide
