Close dead front and
install breaker filler plate
WARNING! Before energizing, make sure that all IQ System
Controller 3 INT connections are properly installed and
conductors terminated.

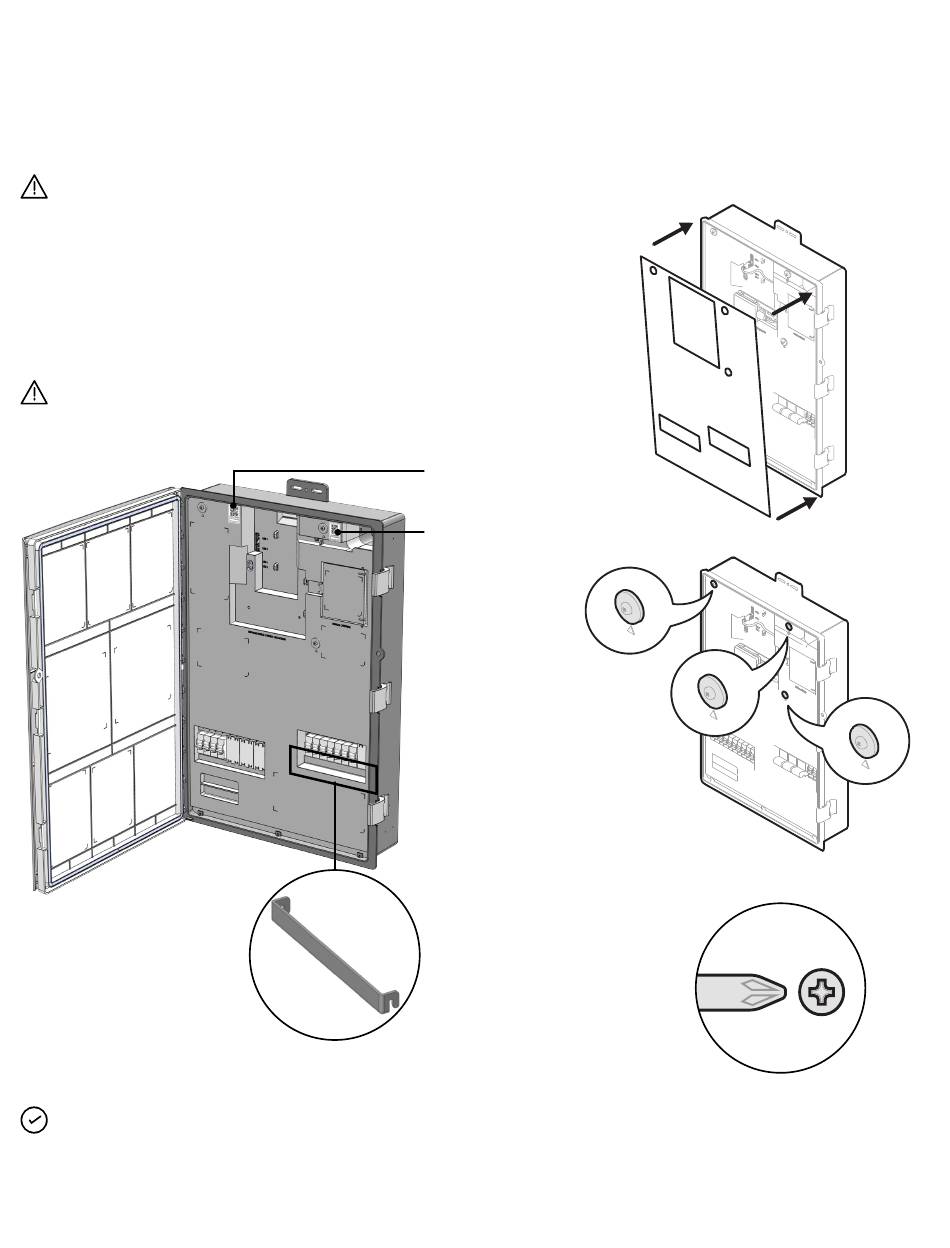

• Reattach the dead front using the three screws and tighten
them using a Phillips screwdriver number two.
• Attach the breaker filler plate to the bottom part of the mains
breaker cutout as shown in the image below.
WARNING! Risk of equipment damage. Ensure that no
conductors are pinched before replacing the cover.
Breaker
filler plate
NOTE: Breakers for solar, IQ Battery, mains, and non-backup/
backup loads are not supplied with IQ System Controller 3 INT
and must be purchased separately. Breaker configurations
shown in the above images are indicative.
IQ System Controller 3 INT Quick Install Guide
IQ System
Controller
QR code
IQ Gateway
QR code
Philips screw #2
Torque: 1.4 N m
