Kiwi Camping Kingfisher 6 Recreational Tent Pitching Instructions

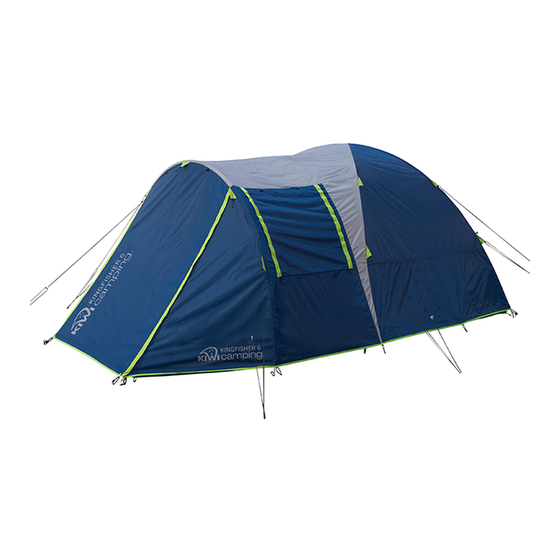

Kingfisher 6 Recreational Tent
Model No. KC072-445
PITCHING INSTRUCTIONS
Your tent includes:
29 x steel pegs (5mm D X 178mm L)
7 x ropes
2 x BLACK fibreglass poles (5700mm x 11mm)
2 x GREY fibreglass poles (4890mm x 9.5mm)
1. Select a dry, level site and
clear the ground of any sharp
objects. Remove the tent from
its carry bag, untie fabric ties
and unroll the tent.
2. Open the pole bag and
remove the pegs, the two
GREY fibreglass poles and
two BLACK fibreglass poles.
- To make sure the tent
Assemble these poles now.
stays in place, insert the
pegs into the ground at a
45° angle.

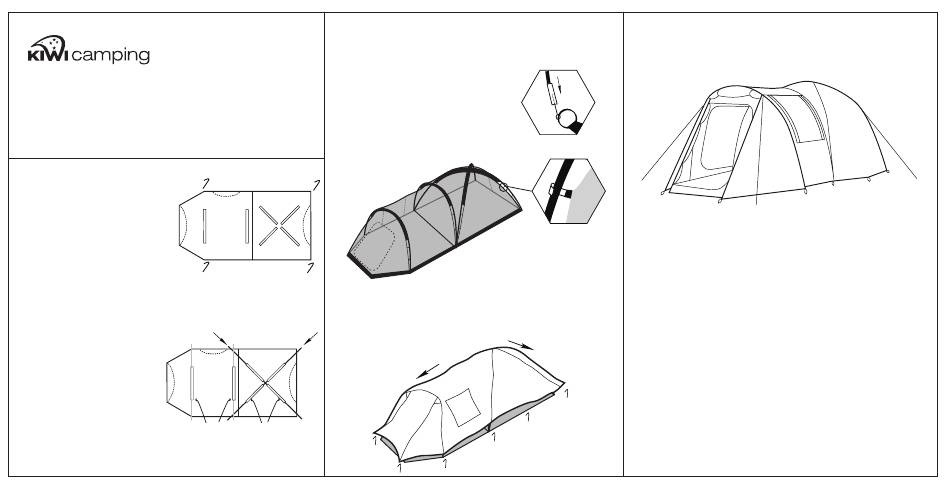

3. Spread out the floor of the inner
tent and peg out the four main
corners first, ensuring that the
tent is pulled taut and square.
Unzip and open the doors to
make erecting the tent easier.
Pitch the inner so it is in line
with the wind, never side on.
4. Lay out the poles to match the
coloured trim on the power
Grey
mesh pole sleeves. Thread
Poles
the BLACK poles through the
sleeves across the bedroom.
Fit into the pin and ring fittings on the floor and erect the room
(this will take 2 people). The bedroom is now up.
5. Moving back to front repeat this
for the two remaining GREY poles.
Your inner is now erected.
6. Making sure the tent is sitting
evenly, attach the speed-clips onto
the corresponding poles and peg
out the remaining pegging points
on the inner.
7. Carefully pull the fly over the inner and peg out the 4 corners.
Opening all the doors reach under the fly and attach any fabric
ties to centralize the fly. This also helps the tent's performance
in the wind. Once this is done, zip the doors up and finish
pegging out the fly.
Black
Poles
8. Finally, rope out the guy ropes and fine-tune the fly so it remains
taut and positioned correctly over the tent.
REVERSE THE PROCEDURE TO LOWER THE TENT
PACKING INSTRUCTIONS
After you have removed the fly, lay it flat inside the tent. This
makes it easier to fold the tent. Pack the poles and pegs into their
bags. When folding the tent inner, leave all doors and windows
open. Fold the inner tent floor from each side to the centre and in
half again. Adjust to the length of the poles. Place the poles on the
floor and roll them inside so that the floor is on the outside. Store
and pack the tent in its bag.
