INSTRUCTION MANUAL

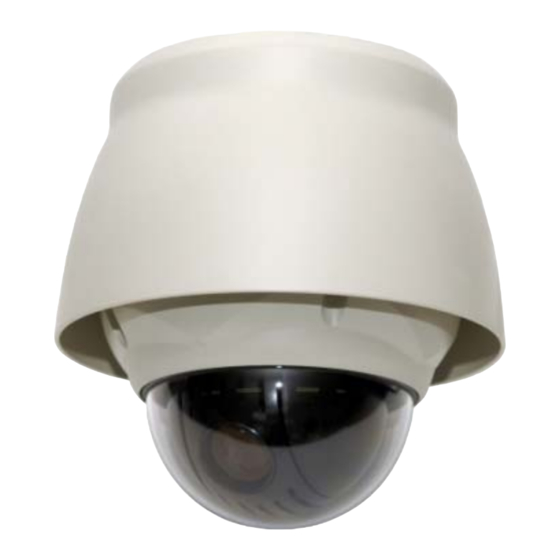

22X PTZ III DOME CAMERA
Please read this manual thoroughly before use and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDMV22DWH and is the answer not in the manual?

Questions and answers

Related Manuals for ATV SDMV22DWH

Summary of Contents for ATV SDMV22DWH

  • Page 1 INSTRUCTION MANUAL 22X PTZ III DOME CAMERA Please read this manual thoroughly before use and keep it handy for future reference.
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 — Introduction ......................1 1.1 Features .............................1 Chapter 2 — Installation and Configuration ................. 2 2.1 Package Contents..........................2 2.2 Installation ............................3 2.3 Basic Configuration of Dome Camera System ................4 2.4 Setting Dome Camera Termination .....................5 2.5 Setting Dome Camera Address (ID)....................5 2.6 Setting Dome Camera Protocol and Video ................12 2.7 Connections............................12...

  • Page 6: Chapter 1 - Introduction

    Chapter 1 — Introduction 1.1 Features The dome camera and the keyboard controller make up the building blocks for any surveillance/security system. Using multiple keyboard controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs.

  • Page 7: Chapter 2 - Installation And Configuration

    Chapter 2 — Installation and Configuration 2.1 Package Contents The dome camera is design to a compact, small size, hard dome camera housing. The housing is constructed of aluminum, steel and plastic. The housing is designed to be mounted both wall and ceiling type. The housing meets the Protection Classification IP66 standards for dust and moisture resistance.

  • Page 8: Installation

    2.2 Installation You need one optional mount kit of the wall mount and the ceiling mount to install. The wall or ceiling mount must be attached to a structural object such as hard wood, concrete that will support the weight of the mount and dome camera. The use of a solid backboard is recommended when attaching to gypsum walls.

  • Page 9: Basic Configuration Of Dome Camera System

    2.3 Basic Configuration of Dome Camera System Figure 1 – Basic Installation Diagram The dome camera must be installed by qualified service personnel in accordance with all local and federal electrical and building codes.

  • Page 10: Setting Dome Camera Termination

    Figure 2 – Layout of DIP Switches NOTE: Open the switch cover (position “a”) and change the setting of DIP switches. The cover should be closed after setting DIP switches. 2.4 Setting Dome Camera Termination The device which is connected at end of line, whether it is a dome camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch.
  • Page 11 Example: Port 1 = Dome 1, Port 2 = Dome 2 … Port 16 = Dome 16. If more than 16 dome cameras are installed using two or more multiplexers, ID of the dome camera should be ID of MUX x No. of camera IN. (e.g. multiplexer ID= n, Camera IN= m then ID of Dome =16x(n-1)+m ) DOME ID (16) (32)
  • Page 12 DOME ID (16) (32) (64) (128) Figure 4.2 – Setting Dome Camera Address (ID)
  • Page 13 DOME ID (16) (32) (64) (128) Figure 4.3 – Setting Dome Camera Address (ID)
  • Page 14 DOME ID (16) (32) (64) (128) Figure 4.4 – Setting Dome Camera Address (ID)
  • Page 15 DOME ID (16) (32) (64) (128) Figure 4.5 – Setting Dome Camera Address (ID)
  • Page 16 DOME ID (16) (32) (64) (128) Figure 4.6 – Setting Dome Camera Address (ID)

  • Page 17: Setting Dome Camera Protocol And Video

    2.6 Setting Dome Camera Protocol and Video If a dome camera is to be installed with the keyboard controller, select the default protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. You can set video type with dip switch. S2-D1 IDEO TYPE NTSC...

  • Page 18: Getting Started

    • Connecting Alarms AI (Alarm In) You can use external devices to signal the dome camera to react on events. Mechanical or electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors. See Chapter 3 — Program and Operation for configuring alarm input. G (Ground) NOTE: All the connectors marked G or GND are common.

  • Page 19: Chapter 3 - Program And Operation

    The dome can move the OSD position in the OSD position setup. (AREA TITLE) (AF AE) (FUNC TITLE (CTRL KEY TO MOVE) SAVE AND EXIT(ESC TO CANCEL) (ALARM MESSAGE) (DOME ID…) (ANGLE…) OSD Position Setup Chapter 3 — Program and Operation 3.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing No.

  • Page 20: How To Control The On-Screen Menu Utility

    3.3 How to control the On-Screen Menu Utility Function Button Call the On-screen menu utility MENU Navigate through the menu items. Joystick up or down Go into the sub-menu items. Joystick left or right or IRIS Open Change value. Joystick left or right or Enter the editing title mode.
  • Page 21 3. Select “TITLE” and twist the Joystick to enter the title edit mode. 4. Twist the Joystick by changing the alphanumeric characters and move the next position. Or move down to the character table and press the CTRL or IRIS Open key at the desired character then the cursor position moves to the next position automatically.

  • Page 22: Preset (Shortcut: Prst)

    Press the SCAN key on the angle field to display with the small OSD. Then the screen will show as below. AUTO SCAN AREA SETUP (CTRL KEY) NUMBER01 START: ----- ----- --- : ----- ----- --- EXIT(ESC TO EXIT) The setting procedure is the same as above. NOTE: 09:AUTO-PAN mode (Endless panning) 3.5 Preset (Shortcut: PRST)
  • Page 23 3. After selecting a blank position, press and hold the CTRL key. Use the Joystick to control the direction of the camera and lens. 4. After aiming the camera (view direction and lens control), release the CTRL key. The cursor will be on the Title after saving data then twist the Joystick or press the Tele or Wide key to edit the Preset title.

  • Page 24: Shortcut Of Preset Program

    PRESET AREA SETUP (CTRL KEY) NUMBER 001 TILT 000.0 000.0 EXIT(ESC TO EXIT) Hold down the CTRL key while selecting the desired scene using the Joystick. Current position will be displayed. Release the CTRL key to complete. Or Press the IRIS Open key then the “CTRL”...
  • Page 25 Follow the steps below to program the Tours: 1. Press the MENU key to display the main menu on the monitor. Scroll to Tour and push the Joystick to the right to enter the Tour menu. Or just press the TOUR key on the keyboard. 2.

  • Page 26: Pattern (Shortcut: Ptrn)

    3.8 Pattern (Shortcut: PTRN) The Pattern feature records user control of the selected dome camera. Up to 4 Patterns can be stored and played back by pressing No. + PTRN keys subsequently. PATTERN SETUP (CTRL KEY) TITLE PERCENT 01 : 00.0% 02 : 00.0%...

  • Page 27: Alarm

    3.9 Alarm ALARM SETUP NO PRI FUN IN OUT HLD LATCH 001 NC ALARM OUT SETUP SAVE AND EXIT(ESC TO CANCEL) : alarm input number PRI(Priority) : The lower number has higher priority. (1 fixed) FUN(Function) : Stored function number to be called by alarm. : NO/NC - normally open/closed, OFF - ignore : ON –...

  • Page 28: Privacy Zone

    1. Select “NUMBER” and set the desired number by pushing the Joystick to the left or right. 2. To edit the title, follow the procedure of the Auto Scan above to edit titles. 3. Select “START ANGLE”. Hold down the CTRL key while selecting the start position using the Joystick.

  • Page 29: Camera Menu

    4. To turn the stored zone On or Off, twist the Joystick or press the Tele or Wide key. 5. Set the method, “BLOCK” or “V.OFF(video off)”. 6. Select “SAVE & EXIT” and push the Joystick to the right or press the IRIS Open key. Press the ESC or IRIS Close key to exit the program without saving.
  • Page 30 • WB (White Balance) CONTROL WB SETUP MODE R GAIN B GAIN SAVE AND EXIT(ESC TO CANCEL) MODE AWB / WAWB / INDOOR / OUTDOOR / MANUAL Computes the white balance value output using color information from the entire screen automatically. (2500 to 9500 °K) WAWB Wide range auto white balance mode.
  • Page 31 The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near infrared. AUTO Camera goes in to B&W mode at low light. GLOBAL Controlled by the keyboard. The operator can enable NIGHT SHOT for all dome cameras at the same time. If the NIGHT SHOT mode is set to GLOBAL, “999”...

  • Page 32: Dome Setup

    3.13 Dome Setup CONFIGURATION MENU LANGUAGE : ENGLISH HOME FUNCTION SETUP OSD DISPLAY VIEW ANGLE SETUP INITIALIZE DATA ORIGIN OFFSET DOME RESET SYSTEM MENU SYSTEM INFORMATION SAVE AND EXIT(ESC TO CANCEL) • LANGUAGE SETUP LANGUAGE : Select the language you want. •...
  • Page 33 • OSD DISPLAY OSD DISPLAY SETUP CAMERA TITLE : DOMEID VIEW DIRECTION : OFF DOME OSD : ON AREA TITLE : OFF PRESET TITLE : CONSTANT FOCUS EXPOSURE : ON OSD POSITION SETUP SAVE AND EXIT(ESC TO CANCEL) CAMERA TITLE : up to 6 characters.
  • Page 34 • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP : 90° TILT LIMIT : OFF SAVE AND EXIT(ESC TO CANCEL) FLIP: OFF, AUTO, 90°, 100°, 110°, 120°, OFF: the dome camera moves until 90° vertically. AUTO: When the camera reaches the floor directly above the moving object, it will stop. At that time, release the Joystick instantly and pull it down again to run the auto-flip function.
  • Page 35 • INITIALIZE DATA INITIALIZE DATA FACTORY DEFAULT ERASE PROGRAMMED DATA PRESET FOCUS DEFAULT EXIT(ESC TO EXIT) FACTORY DEFAULT Select “FACTORY DEFAULT” to initialize the Data. FACTORY DEFAULT ARE YOU SURE ? CANCEL ERASE PROGRAMMED DATA Erase all stored data from the Flash-ROM of the selected dome camera. You will be asked to enter ON or OFF.
  • Page 36 • ORIGIN OFFSET OFFSET SETUP (CTRL KEY) PAN OFFSET : 000.0 TILT OFFSET : 000.0 ENABLE : OFF SAVE AND EXIT(ESC TO CANCEL) This feature is useful to align a new dome camera exactly the same as the previously installed dome camera.
  • Page 37 Press and hold the CTRL key and moving the Joystick will operate with the TURBO speed mode. MOTOR SETUP PROPOTIONAL P/T : ON P/T MODE : NORMAL SAVE AND EXIT(ESC TO CANCEL) PROPOTIONAL P/T : ON / OFF P/T MODE : SLOW / NORMAL / TURBO SLOW MAXIMUM SPEED : 40˚/second...

  • Page 38: Function Run

    • SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE : xxxxx-xxxxxx H/W VERSION : Vx.xx ROM VERSION : Vx.xx PROTOCOL : xxxx BAUDRATE : 9600 EXIT(ESC TO EXIT) The system information provides essential information about the dome camera if service is required. When you view this screen, you can determine the camera type, ROM version. The information on this screen cannot be modified.

  • Page 39: Factory Setup

    ALARM OUT SETUP 1 MIN EXIT(ESC TO EXIT) You press the CTRL or IRIS Open key then that alarm out operates during the setting time only. 3.15 Factory Setup FACTORY SETUP TOUR DWELL TIME : 03 SEC ANSWER DELAY : 03 SEC SAVE AND EXIT(ESC TO CANCEL) Pressing 250 + PRST keys pops up this menu.

  • Page 40: Appendix A - Specifications

    Appendix A — Specifications 22X Optical Zoom PTZ III Dome System MODEL MODULE CCD Type 1/4" Type EXview HAD CCD Optical / Digital Zoom 22X / 16X Resolution 580 TVL Focal length f = 3.9mm ~ 85.8mm 3.9mm – 49.5° (H) Angle of view 85.8mm –...
  • Page 41 Figure 5 – Dimension...

  • Page 42: Appendix B - Troubleshooting

    Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of...
  • Page 43 On-screen Menu The text overlay menu system used for setting dome features. The utility is accessed using a keystroke combination. The utility provides settings for camera functions, zoom, alarm, text display, and password protection. Flip Allows the dome to automatically turn 180 degrees when the camera tilts to its lower limit and stays in that position for a brief delay.
  • Page 44 North Position User-definable setting that may correspond to magnetic north or some well-known landmark. Used to approximate the camera dome's pointing direction when Direction Indicators are enabled. Slow Shutter Setting used to improve the quality of video obtained in extreme low-light situations. When the Low Shutter setting is enabled, low-light information is collected over multiple fields based on the Shutter Limit setting.

  • Page 45: Appendix D - Short Cut Key

    Appendix D — Short Cut Key Short Cut Key Function PRST Pop up Preset setup menu. TOUR Pop up Tour setup menu. Pop up Pattern setup menu. PTRN Pop up Auto Scan setup menu. SCAN No.+ CTRL+ PRST Store the current view at the selected number. Short Cut Key Function Short Cut Key...

  • Page 46: Appendix E - Wall Mount

    Appendix E — Wall Mount The wall mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and Dome Camera. 1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of the Wall Mount.

  • Page 47: Appendix F - Ceiling Mount

    Appendix F — Ceiling Mount The ceiling mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and Dome Camera. 1. Select a suitable mounting location and verify there is sufficient cable to connect with cables from the housing.
  • Page 48 22X PTZ III DOME CAMERA 50302801A Printed in Korea...
