Rack Mount Installation

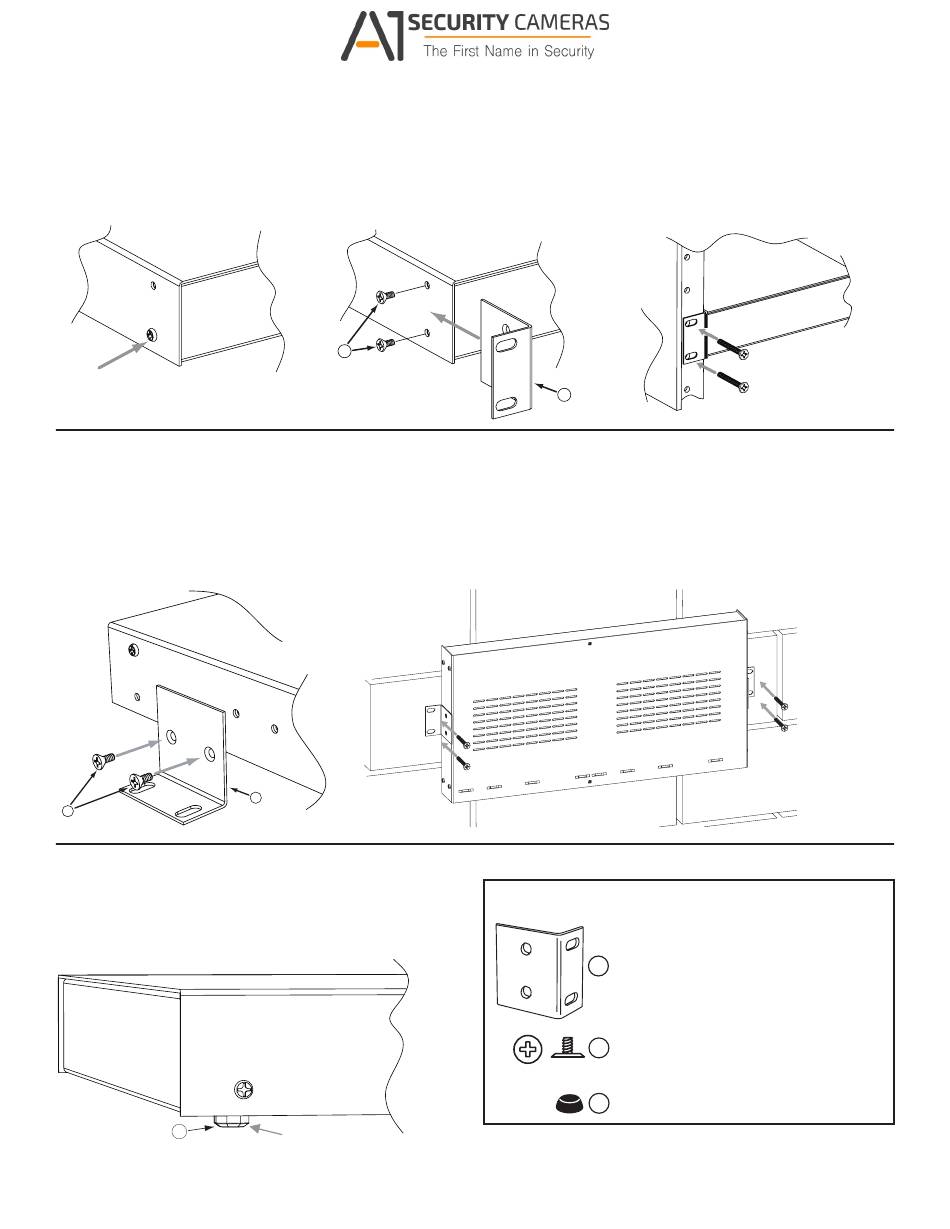

1. Remove factory installed screws from both sides of rack chassis (Fig. 3a).
2. Attach mounting brackets (A) on the left and right side of rack chassis using the
two (2) flat head screws (B) (included) (Fig. 3b).
3. Install unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 3c).
Fig. 3
Fig. 3a
Top
Front
Left
Remove

Wall Mount Installation

1. Attach mounting brackets (A) on the left and right side of rack chassis using
two (2) flat head screws (B) (included) (Fig. 4a).
2. Secure unit to wall with appropriate screws/hardware (not included) (Fig. 4b).
Caution: It is necessary to make sure mounting screws are securely fastened to a beam when installing.
Fig. 4
Fig. 4a
B

Shelf Installation

1. Position and affix rubber pads (C) (included) at each
corner on the bottom of the unit (Fig. 5).
2. Place unit in desired location.
Fig. 5
Left Side
C
Vertiline33D/VertiLine33TD/Vertiline63D/VertiLine63TD
Chassis Mounting Options:
Fig. 3b
B
Fig. 4b
A
Rubber Pad
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
Fig. 3c
Top
Front
Left
A
Hardware (Included):
Two (2) mounting brackets
A
Six (6) flat head screws
B
for mounting brackets.
C
Four (4) rubber pads.
Top
Front Left
- 7 ­
