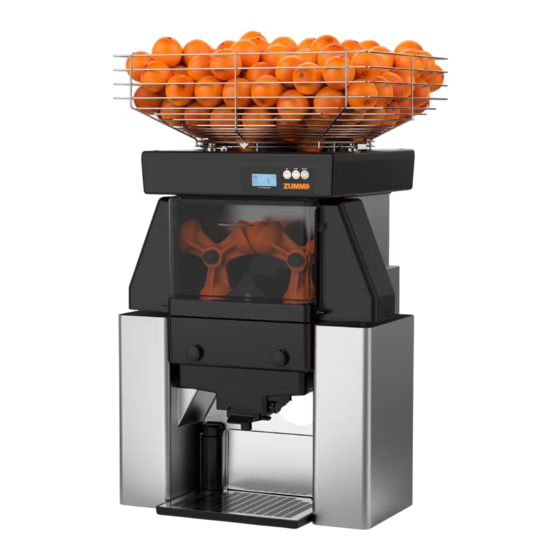

Zummo Z40E Manual
  1. Manuals
  2. Brands
  3. Zummo Manuals
  4. Juicer
  5. Z40E
  6. Manual

Zummo Z40E Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Zummo Manual
Models: Z40E & Z40E 2.0
Unit 7/1314 Boundary Rd, Wacol, QLD , Australia - 1300 986 666 -
service@zummoaustralia.com.au
www.zummoaustralia.com.au
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z40E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zummo Z40E

Summary of Contents for Zummo Z40E

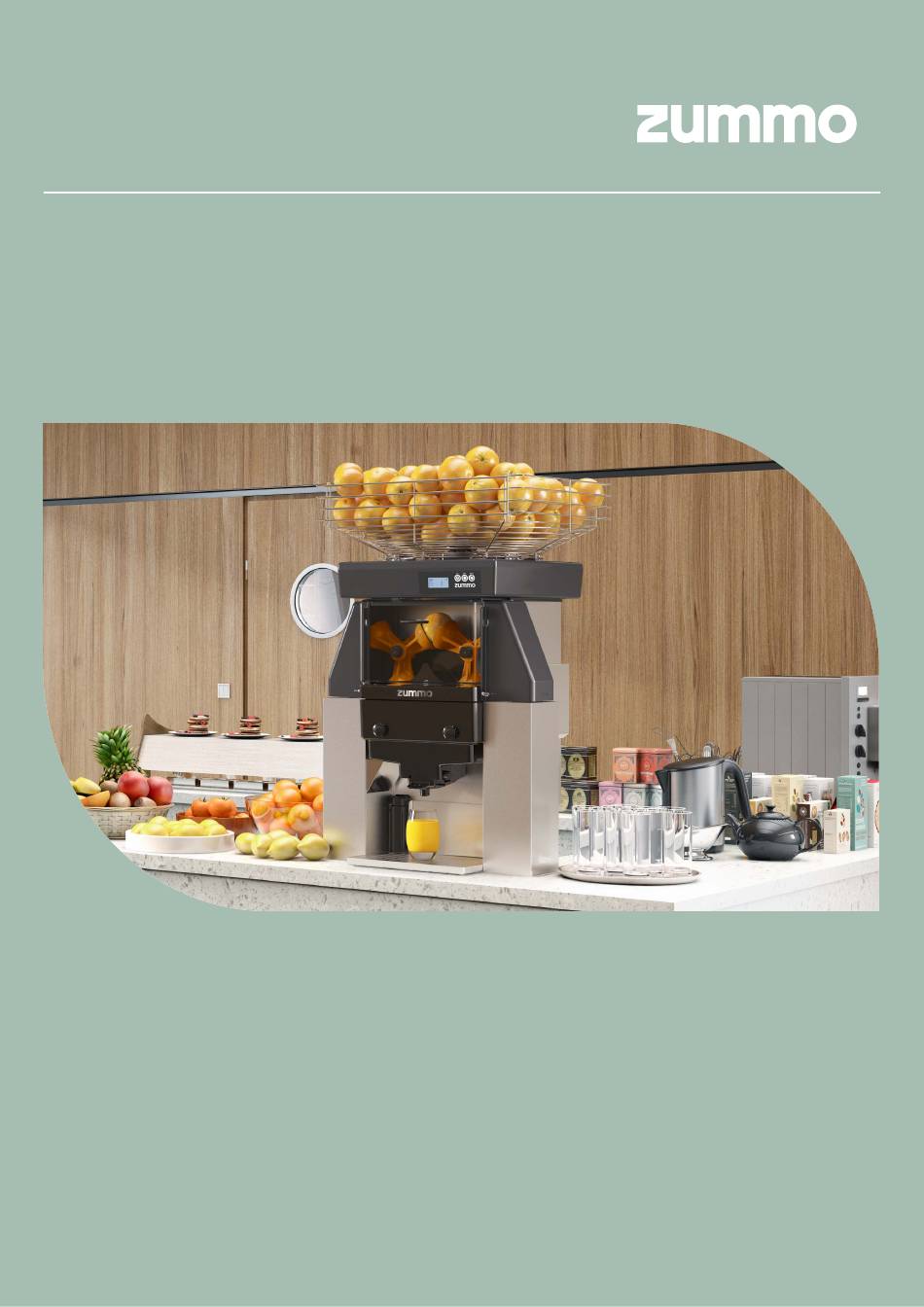

  • Page 1 Zummo Manual Models: Z40E & Z40E 2.0 Unit 7/1314 Boundary Rd, Wacol, QLD , Australia - 1300 986 666 - service@zummoaustralia.com.au www.zummoaustralia.com.au...

  • Page 2: Table Of Contents

    INDEX TECHNICAL DATA ...................   WASTE AND RECYCLABILITY .............. 3 GUARANTEE ..................... 4! ACCESSORIES .................... 5 PHOTOS ......................!18 SERVICE MANUAL FUNTIONS AND CLEANING ................!7 6.1. INITIAL START-UP ....................7 6.2. STOPPING ......................8 6.3. COUNTER FUNCTION ..................8 6.4. SELECTOR LOCKING FUNCTION (Z40 model or Z40 Service model) ...!8 6.5.

  • Page 3: Technical Data

    1. TECHNICAL DATA CONSUMPTION (W) 360/410** FRUITS PER MINUTE 40 (LM: 25) HOPPER CAPACITY 20kg HEIGHT (mm) DIMENSIONS WIDTH (mm) DEPTH (mm) TEMPERATURE BETWEEN +5ºC and +50ºC ENVIRONMENTAL LIMITS HUMIDITY BETWEEN 45% and 70% REGULAR CUPS (Ø 76) 53-76 FRUIT SIZE LARGE CUPS * (Ø...

  • Page 4: Guarantee

    In case of damages caused during the guarantee period, we suggest you contact the Authorised Dealer who supplied the unit, or call Zummo: service@zummoaustralia.com.au E-mail: Telephone: 1300 986 666 opt 4. Any repairs not authorized by Zummo during the guarantee period will cause immediate termination of the guarantee.

  • Page 5: Accessories

    4. ACCESSORIES The machine has various squeezing sets of Cups, Balls and Fruit Classifiers to use depending on the size of the fruit you wish to squeeze. Dark grey-coloured Cups and Balls plus Hopper Fruit Classifier for fruits with diameters between 53 and 76mm (Fig.

  • Page 6: Service Manual

    Service Manual...

  • Page 7: Funtions And Cleaning

    6. FUNTIONS AND CLEANING  It is advisable to turn the machine off at the mains before starting any cleaning processes.  Do not wash the machine using water jets and/or water at high pressure.  We recommend at least one daily clean of the components in the juice squeezing zone (cups, squeezing balls, drip tray, filter, blade and cover), following the cleaning instructions.

  • Page 8: Stopping

    6.2. STOPPING (Z40 Model or Z40 service Model) To stop the machine when is operation, press the Stop button. The display will show a timer and the message Stop. The machine will stop once finish the cycle. Once the machine completely stops, the display will show again the number of fruits to squeeze.

  • Page 9: Peel Counter Function

    6.5. PEEL COUNTER FUNCTION The machine has an automatic system for warning when the peel collection bin is full. If you want to activate this function, please proceed as follows:  Turn off the machine's power switch.  With the machine off, press SELECT, and continue pressing while turning the power switch back on.
  • Page 10 Remove the squeezer tray, blade and cups simultaneously. To do so, gently unscrew the nuts securing the cups and, using them as supports, pull outwards and they will come loose so they can be removed easily. Unscrew the nuts of the tray shafts and pull outwards horizontally to remove all the parts (Fig.

  • Page 11: Advice For Use

    If Blade, Juice tray, Balls, Cups, Side cover or Front cover are not correctly assembled, serious damage may be caused to these parts or to the interior components of the machine. (Operator faults not covered by the guarantee) (Z40 Model or Z40 Service Model) The display will show the number of oranges to be squeezed. The machine is now ready for operation.
  • Page 12 If the tray is not assembled or is not in place, the machine will not operate and the display will show an Error message by displaying a flashing dark tray. If one of the side covers is incorrectly positioned, the machine will not work and the display panel will show Error.

  • Page 13: Maintenance Manual

    Maintenance Manual...

  • Page 14: Installation, Programming And Maintenance

    7. INSTALLATION, PROGRAMMING AND MAINTENANCE  It is compulsory for the machine to be earthed to avoid the possibility of people being given shocks or damage to the equipment.  The plug must be easily accessible once the installation is complete. The use of extension cables, adaptors and multiple sockets is not permitted.

  • Page 15: Changing Operational Mode

    a. (Z40 Model or Z40 Service Model) If the display shows a number (Disp. 1a), the machine is ready to start operating. (Z40 Self-service Model) If an orange icon is displayed on the digital screen (Disp. 1b), the machine is ready to operate. b.

  • Page 16: Identifying Damages

    7.4. IDENTIFYING DAMAGES Damage Cause and/or solution The display is not lit No power supply. Fuse burnt out. (Fig. 32) Power cable not properly connected. Switch power on. (Fig. 6) The display shows Front cover not fitted correctly. (Fig. 33) message Error Tray not assembled or incorrectly assembled.

  • Page 17: List Of Components

    7.5. LIST OF COMPONENTS 2/13/9 TANK FAUCET 210809A Z40 TANK SUPPORT 2/13/9-1 SEAT CUP SILICONE TOMLINSON FAUCET 210810 DRIP TRAY DRAIN 2/13/9-2 TOMLINSON TAP NUT 210811 Z40 TANK SHAKER 0316000 BOTTLE RACK BODY 210814 M20 NUT 0316002 BOTTLE RACK TRAY 210816C COMPLETE Z40 JUICE TANK 0316004...
  • Page 21 www.zummocorp.com 210536 ( 64-88) 210346A 210329-1 0505010A 210513 210345A 53-76) 210512 210348 210537 ( 77-100) 210354 210347A 210352 210511 210510 I-985-M3 210313 1503002 210604A I-965-M3x10 210204D 210507A 210515( 53-76) 0505010A 210514 210203 53-76) V0193 V0229 V0266 V0133 210516A 210517A 210519-1 210826* 210530 210227...
  • Page 22 www.zummocorp.com 210521C/210526C 210509C/210525C 2/13/9-2 210829 1408023 2/13/9-1 I-965-M3x8 210524 1503002 210807 I-1587-M3 210817A I-933-M4x20 210821 I-933-M5X10 I-985-M4 T-933-M4x10 210822 210811 210806 210805C 2/13/9-2 2/13/9-1 2/13/9 1408023 210809A Z40 2.0...
  • Page 23 www.zummocorp.com 0316000 210804 0316002 210810 1408023 210818 T-9021-M6 210814 1605005 210912 T-934-M6 0316004 210819 210929 210930 210931 210901(MDP) 210902(MSP) 210910(MDPC) 210916 210810 1408023 210917 210814 1605005 211002 210926 211008 211007 211009A 211003 (MDP/MDPC) 1003033 211004 (MSP) Z40 2.0...
  • Page 24 EG-VERKLARING VAN OVEREENSTEMMING ЗАЯВЛЕНИЕ О СООТВЕТСТВИИ НОРМАМ «СЕ» DEKLARACJA ZGODNOŚCI "CE" ZUMMO, Innovaciones Mecánicas S.A. C/ Cádiz 4 - 46113 Moncada, Valencia, España ─ Bajo nuestra exclusiva responsabilidad, declaramos que el producto, al que esta decla- ración se refiere, es conforme con las siguientes normas: ─...
  • Page 25 www.zummocorp.com CERTIFICADO DE GARANTÍA / GUARANTEE CERTIFICATE BON DE GARANTIE / GARANTIEURKUNDE CERTIFICATO DI GARANZIA / CERTIFICADO DE GARANTIA GARANTIECERTIFICAAT / ГАРАНТИЙНЫЙ ТАЛОН GARANTİ BELGESİ Nombre / Name / Nom Name / Nome / Name Naam / Имя / adı: ……..………………………………………………………………….………… Dirección / Address / Adresse Anschrift / Indirizzo / Endereço Adres / Адрес: .........................
