Zummo Z40 Instructions Manual

Splashproof
Hide thumbs Also See for Z40:
1
2
3
4
5
6
7

Advertisement

Table of Contents

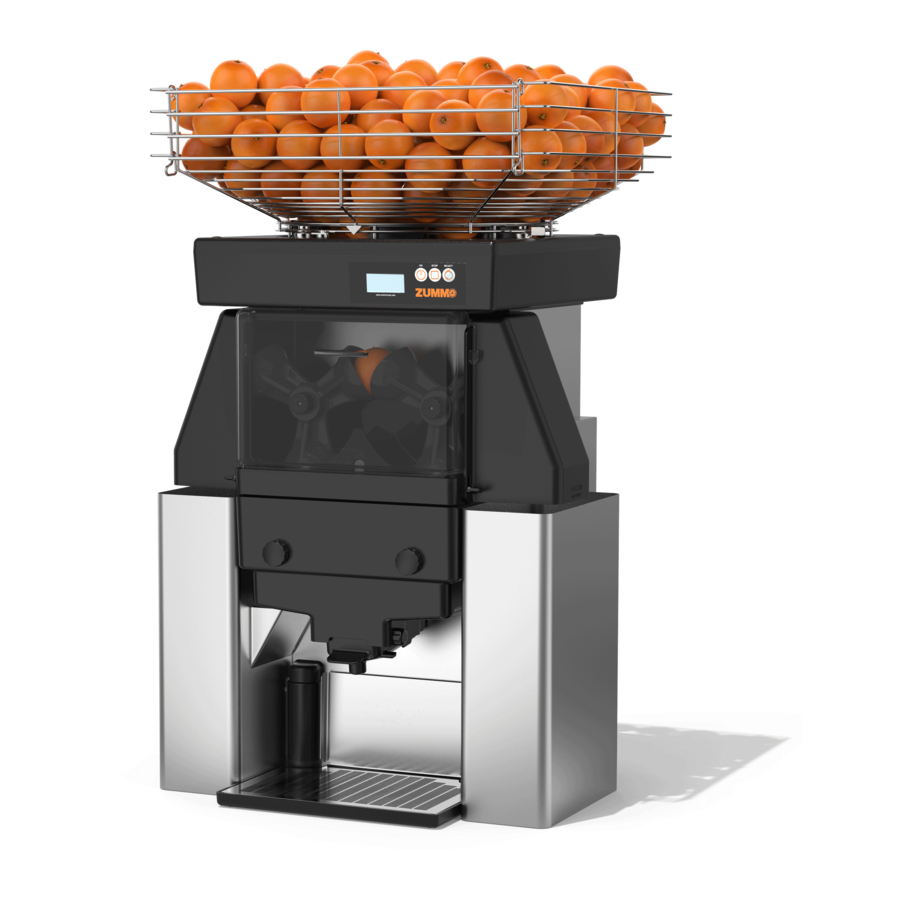

Z40
SPLASHPROOF INSTRUCTIONS
INSTRUCCIONES/
El kit se compone de:
1 Caucho gris esponjoso ref. V0110 de 332mm (Frontal máquina)
2 Caucho gris esponjoso ref. V0110 de 272mm (Laterales máquina)
1 Burlete techo 5x2x1260 ref. 210333 de 315mm (Trasero máquina)
1 Burlete techo 5x2x1260 ref. 210333 (Tapa pista tolva)
1 Burlete techo 3x2x1850 ref. 210334 (Base pista tolva)
1 Cierre superior techo ref. 210335
4 Arandela techo Z40 ref. 210337
1 Protección placa ref. 210338
1 Rejilla ventilador ref. 210339
4 Esparrago Dowel Ø6.3/M6X90 ref. T-Dowel-M6x90

The kit is composed of:

1 Sticky grey gasket ref. V0110 of 332mm (Front machine)
2 Sticky grey gasket ref. V0110 of 272mm (Side machine)
1 Top seal 5x2x1260 ref. 210333 of 315mm (Rear machine)
1 Top seal 5x2x1260 ref. 210333 (Top hopper track)
1 Top seal 3x2x1850 ref. 210334 (Base hopper track)
1 Upper protective cover ref. 210335
4 Z40 top washer ref. 210337
1 Cpu protection ref. 210338
1 Stainless steel fan grille ref. 210339
4 Screw Dowel Ø6.3/M6x90 ref. T-Dowel-M6x90

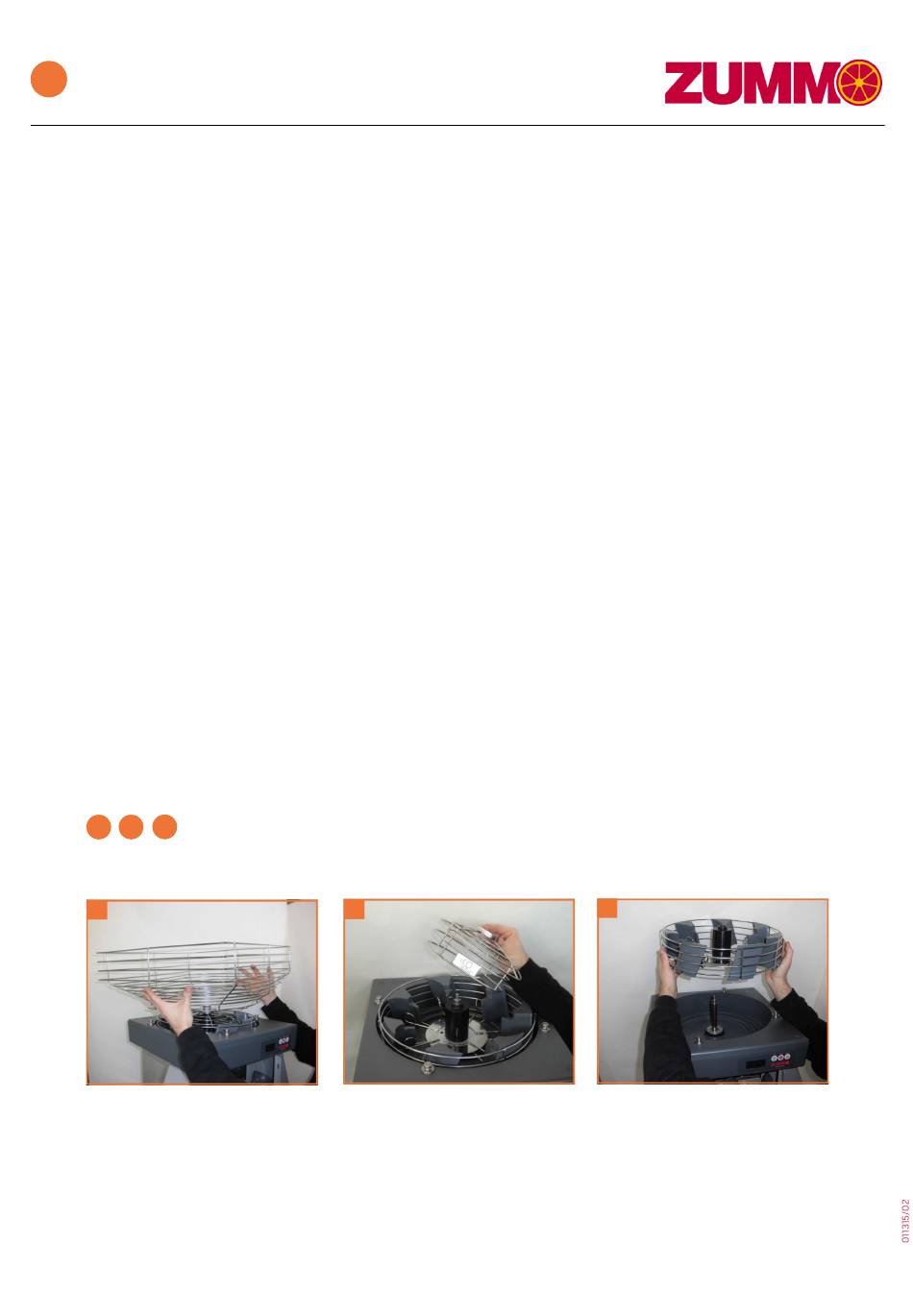

Extraiga la cesta exterior, retire la cesta y los separadores.
1
2
3
Remove the external basket
fruit classifier
1
T +34 961 301 246 | F +34 961 301 250 | zummo@zummo.es | Cádiz, 4 . 46113 Moncada. Valencia. Spain | www.zummo.es
INSTRUCTIONS
,
remove the basket and the hopper
s.
2
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z40 and is the answer not in the manual?

Questions and answers

Related Manuals for Zummo Z40

Summary of Contents for Zummo Z40

  • Page 1 Extraiga la cesta exterior, retire la cesta y los separadores. Remove the external basket remove the basket and the hopper fruit classifier T +34 961 301 246 | F +34 961 301 250 | zummo@zummo.es | Cádiz, 4 . 46113 Moncada. Valencia. Spain | www.zummo.es...
  • Page 2 Remove the 2 grey plugs, the 4 bolts to remove the base hopper track and the ring gasket located in the basket shaft. T +34 961 301 246 | F +34 961 301 250 | zummo@zummo.es | Cádiz, 4 . 46113 Moncada. Valencia. Spain | www.zummo.es...
  • Page 3 IMPORTANT: Assemble the fan in the same posi on in order to facilitate the ven la- on. The air flow must be from inside of the machine to outside. T +34 961 301 246 | F +34 961 301 250 | zummo@zummo.es | Cádiz, 4 . 46113 Moncada. Valencia. Spain | www.zummo.es...
  • Page 4 Corte el sobrante del burlete en forma de cuña. Cut the top seal excess as you can see in the picture. T +34 961 301 246 | F +34 961 301 250 | zummo@zummo.es | Cádiz, 4 . 46113 Moncada. Valencia. Spain | www.zummo.es...
  • Page 5 Corte el sobrante del burlete en forma de cuña. Cut the top seal excess as you can see in the picture. T +34 961 301 246 | F +34 961 301 250 | zummo@zummo.es | Cádiz, 4 . 46113 Moncada. Valencia. Spain | www.zummo.es...
  • Page 6 Sitúe el cierre superior techo y monte el retén. Place the upper protective cover and assemble the ring gasket. T +34 961 301 246 | F +34 961 301 250 | zummo@zummo.es | Cádiz, 4 . 46113 Moncada. Valencia. Spain | www.zummo.es...
  • Page 7 Monte la cesta junto con los separadores y finalmente monte la cesta exterior. 35 36 Assemble the basket with the fruit classifiers and finally assemble the external basket. T +34 961 301 246 | F +34 961 301 250 | zummo@zummo.es | Cádiz, 4 . 46113 Moncada. Valencia. Spain | www.zummo.es...
