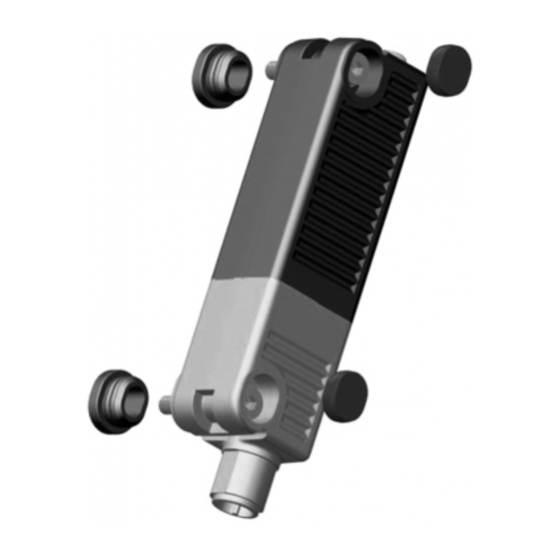

schmersal RSS 36-D-ST5 Manual

Safety switch
Hide thumbs Also See for RSS 36-D-ST5:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
INSTRUKTIONER FÖR ANVÄNDNING OCH INSTALLATION
RSS 36-D-ST5

Table of Contents

1 Om detta dokument
1.1 Funktion
1 Om detta dokument
Schmersal leveransprogram är inte avsett för privata konsumenter.
1.1 Funktion
1-22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSS 36-D-ST5 and is the answer not in the manual?

Questions and answers

Related Manuals for schmersal RSS 36-D-ST5

Summary of Contents for schmersal RSS 36-D-ST5

  • Page 1: Table Of Contents

    7.3 Operating principle of the electronic diagnostic output 7.4 Safety-sensors with serial diagnostic function 8 Idrifttagning och underhåll 9 Demontering och sluthantering 9.1 Demontering 9.2 Sluthantering 1 Om detta dokument Schmersal leveransprogram är inte avsett för privata konsumenter. 1.1 Funktion 1-22...

  • Page 2: Instruktionsbokens Målgrupp: Auktoriserad Fackpersonal

    Säkerhetsbrytaren får endast användas i enlighet med följande utföranden eller för den av tillverkaren godkända användningen. Detaljerade uppgifter om användningsområdet finns i kapitlet "Produktbeskrivning". 1.5 Allmänna säkerhetsanvisningar Säkerhetsanvisningarna i instruktionsboken samt gällande installations-, säkerhets- och olycksfallsföreskrifter ska beaktas. Ytterligare teknisk information finns i Schmersal-katalogen resp. på products.schmersal.com i online-katalogen på Internet. 2 Produktbeskrivning 2-22...

  • Page 3: Typnyckel

    2.1 Typnyckel Produktbeteckning: RSS 36 (1)-(2)-(3)-(4) utan Standardkodning individuellt kodad Individuellt kodad, kan omkodas utan without diagnostic function (only on request for ST5) med diagnosutgång with serial diagnostics (only for ST) utan utan kvarstannande positioner med kvarstannande, hållkraft ca 18 N Stickkontakt M12, 8-polig Connector plug M12, 5-pole 2.2 Specialversioner...

  • Page 4: Varning För Felanvändning

    Safety sensors and actuators with latching (ordering suffix 'R') always must be used in pairs. The latching force (approx. 18 N) exercised by the permanent magnet keeps hatches and small guards closed, also in a de-energised condition. The system can be used as a door end stop up to 5 kg at 0.25 m/s. The diagnostic output of the safety sensor alternatively can be used as a conventional output or as a “serial output“...
  • Page 5 Föreskrifter EN ISO 13849-1 EN IEC 60947-5-3 EN IEC 61508 Allmän information Universell kodning Coding level according to EN ISO 14119 låg Aktiv princip RFID Frequency band RFID 125 kHz Transmitter output RFID, maximum -6 dB/m Kaplsing, dimensioner Block Monteringsvillkor (mekanisk) inte i jämnhöjd Sensorns topologi Individuell sensor eller ändsensor i en serie...
  • Page 6 Mekaniska data Nyckelingångar på sidan Aktiv yta på sidan Mekanisk livslängd, minimum 1 000 000 kopplingar Note (Mechanical life) aktiveringshastighet 0,25 m/s Kopplingar av skyddsdörr ≤ 5 kg Hysteres (aktiveringsavstånd), maximum 2 mm Repeternoggrannhet 0,5 mm Notera (repeternoggrannhet R) Sidoförskjutning: Lång sidoyta tillåter en max. höjdförskjutning (x) av sensor och aktiveringsdon med 8 mm (t.ex.
  • Page 7 Ambient temperature -25 ... +70 °C Lager och transporttemperatur, minimum -25 °C Lager och transporttemperatur, maximum +85 °C Relativ fuktighet, maximum 93 % Note (Relative humidity) icke kondenserande inte nedisande Vibrationstålig enligt EN 60068-2-6 10 … 55 Hz, Amplitud 1 mm tålighet mot chock 30 g / 11 ms Protection class...
  • Page 8 Test pulse interval, typical 1000 ms Test pulse duration, maximum 0,3 ms Classification ZVEI CB24I, Source Classification ZVEI CB24I, Sink Elektriska data - diagnosuttag Designation, Diagnostic outputs Design of control elements short-circuit proof, p-type Voltage drop U , maximum Voltage, Utilisation category DC-12 24 VDC Current, Utilisation category DC-12 0,05 A...

  • Page 9: Montering

    This device complies with the nerve stimulation limits (ISED CNR-102) when operated at a minimum distance of 100 In the event of changes or modifications that have not been expressly approved by K.A. Schmersal GmbH & Co. KG, the user's authorisation to use the device may become ineffective.

  • Page 10: Accessories

    Alla mått i mm. Safety sensor Actuator Alternative suitable actuators with different design: refer to products.schmersal.com. 4.3 Accessories Set of disposable screws (order separately) - 4x M4x25 incl. washers, order number 101217746 - 4x M4x30 incl. washers, Bestellnummer 101217747 Sealing kit (order separately)

  • Page 11: Switch Distance

    - To seal the mounting holes and as a spacer (approx. 3 mm) to facilitate cleaning below the mounting surface - Also suitable as tamper protection for the screw attachment 4.4 Switch distance Switching distances in mm to IEC 60947-5-3 Typical switching distance s Assured switching distance s Assured switch-off distance s...

  • Page 12: Adjustment

    With the combination of "old sensor - new actuator (V2)" there may be limitations in availability owing to the reduced s (8 mm). This change has no affect on the performance level. The side allows for a maximum height misalignment (X) of sensor and actuator of ± 8 mm (e.g. mounting tolerance or due to guard door sagging).

  • Page 13: Allmänna Anvisningar För Den Elektriska Anslutningen

    Requirements for the connected safety-monitoring module: dual-channel safety input, suitable for p-type sensors with NO function Information för val av lämplig säkerhetsövervakning finns i Schmersal-katalogen resp. under products.schmersal.com i online-katalogen på Internet. As an alternative to a safety-monitoring module, the safety sensors of the CSS 34F0 or CSS 34F1 series can also be used as first sensor of a series-wired chain for the direct control and monitoring of safety contactors (refer to operating manual of CSS 34F0 / CSS 34F1).

  • Page 14: Anslutningsexempel För Seriekoppling

    Fördelarna med SD- PFB-SD-4M12-SD (variant för fältnivå) och PDM-SD-4CC-SD (variant för kopplingsskåp, påskjutbara på bärskena) samt ytterligare ett flertal tillbehör är att de står till förfogande för bekväm kabeldragning och seriekoppling av SD-enheter. Detaljerad information på Internet under products.schmersal.com. 5.3 Anslutningsexempel för seriekoppling Series-wiring can be set up.

  • Page 15: Anslutningar Och Tillbehör, Stickkontakt

    5.4 Anslutningar och tillbehör, stickkontakt Function safety switchgear Pin configuration of the Colour codes of the Schmersal Poss. connector connectors colour codes of other customary connectors   8-pin 5-pin 8-pin version ST 5-pin to IEC version ST version ST version ST...

  • Page 16: Actuator Coding

    Connecting cables (PUR) with coupling (female) IP67 / IP69, M12, 5-pole - 5 x 0.34 mm² to EN 60947-5-2 Cable length Ordering code 5.0 m 103010816 10.0 m 103010818 15.0 m 103010820 6 Actuator coding Safety sensors with standard coding are ready to use upon delivery. Individually coded safety sensors and actuators will require the following "teach-in"...

  • Page 17: Operating Principle Of The Electronic Diagnostic Output

    The green LED indicates that the safety sensor is ready for operation. The supply voltage is on and all safety inputs are present. Flashing (1Hz) of the green LED signals that a voltage is missing on one or both of the safety inputs (X1 and/or X2). The yellow LED always signals the presence of an actuator within range.

  • Page 18: Safety-Sensors With Serial Diagnostic Function

    Table 1: Examples of the diagnostic function of the safety-sensor with conventional diagnostic output Sensor function LED's Diagnostic- Safety Comments output outputs green yellow   Y1, Y2   Supply voltage Voltage on, no evaluation of the voltage quality actuated 24 V 24 V The yellow LED always...
  • Page 19 SD-Gateway is integrated as a slave in an existing field bus system. In this way, the diagnostic signals can be evaluated by means of a PLC. The necessary software for the integration of the SD-Gateway is available for download at products.schmersal.com. The response data and the diagnostic data are automatically and permanently written in the assigned input byte of the PLC for each safety sensor in the series-wired chain.
  • Page 20 Table 2: Function of the visual diagnostic LEDs, the serial status signals and the safety outputs by means of an example System LED's Safety Status signals serial diagnostic byte Bit n° conditi output green yellow Y1, Y2 Non- actaute inputs X1 and enabled Actuate...

  • Page 21: Idrifttagning Och Underhåll

    Table 3: Tabular overview of status signals, warnings or error messages(The described condition is reached, when Bit = Communication Request byte: from the PLC to the local safety sensor directions:   Response byte: from the local safety sensor to the PLC  ...

  • Page 22: Demontering

    £ 22-22 Schmersal Nordiska AB, F O Petersons gata 28, S-421 31 Västra Frölunda Alla data och värden har kontrollerats noga. Bilder kan avvika från originalet. Ytterligare tekniska data finns i manualen. Tekniska ändringar och fel förbehålles. Genererat den 2023-06-10 04:55...
