StarTech.com ST121HD20FXA Quick Start Manual

HDMI over Fiber Optic Extender - 4K 60Hz

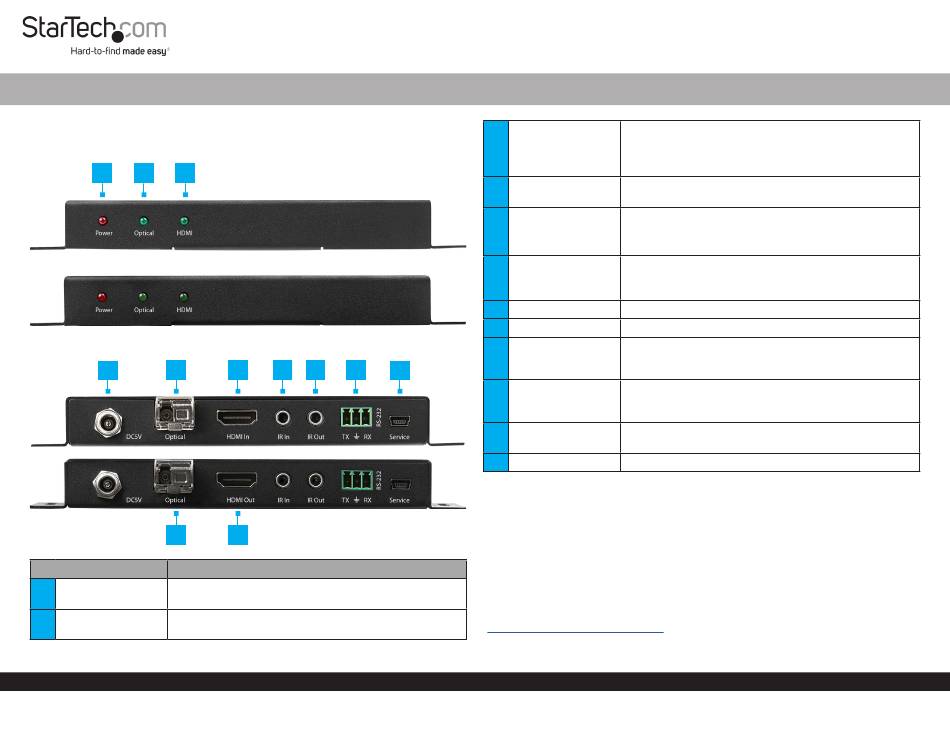

Product Diagram (ST121HD20FXA)
Transmitter (Top) and Receiver (Bottom) Front View
1 2 3
Transmitter (Top) and Receiver (Bottom) Rear View
5
4
6
Component
• Transmitter and Receiver: Solid Red when the
1 Power LED Indicator
Universal Power Adapter is connected
Optical Signal LED • Transmitter and Receiver: Solid Green when the
2
Indicator Transmitter and Receiver establish an optical link
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
9 10 11
7 12
8
Function
• Transmitter: Solid Green when an HDMI Source
Device is connected to the HDMI Input Port
HDMI Signal LED
3
Indicator • Receiver: Solid Green when an HDMI Display Device
is connected to the HDMI Output Port
• Transmitter and Receiver: Power the Transmitter
4
DC 5V Port
and Receiver
• Connect to the Receiver with a Single or Multi Mode
Fiber Optic Cable
5 Optical Output Port
• Removable
• Connect to the Transmitter with a Single or Multi
Mode Fiber Optic Cable
6
Optical Input Port
• Removable
7 HDMI Input Port • Connect an HDMI Source Device
8 • Connect an HDMI Display Device
HDMI Output Port
• Connect the IR Blaster or IR Receiver for bi-directional
9 IR Input Port infrared control of the HDMI Source and Display
Devices
• Connect the IR Blaster or IR Receiver for bi-directional
10 IR Output Port infrared control of the HDMI Source and Display
Devices
• Transmitter and Receiver: Connect a Serial Cable to
Serial Terminal
11
the Terminal Block for bi-directional Serial Extension
Block
12 Service Port • Transmitter and Receiver: For manufacturer use only
Requirements
• HDMI Source Device x 1
• HDMI Display Device x 1
• HDMI M/M Cables (sold separately) x 2
• Single Mode Fiber Optic Cable up to 3300 Feet (sold separately) x 1
• Multi Mode Fiber Optic Cable up to 1000 Feet (sold separately) x 1
• (Optional) Adhesive Pads x 4
For the latest requirements and to view the full User Manual, please visit
www.startech.com/ST121HD20FXA.
Quick-Start Guide
Manual Revision: October 23, 2019 3:26 PM
