Instruction Manual

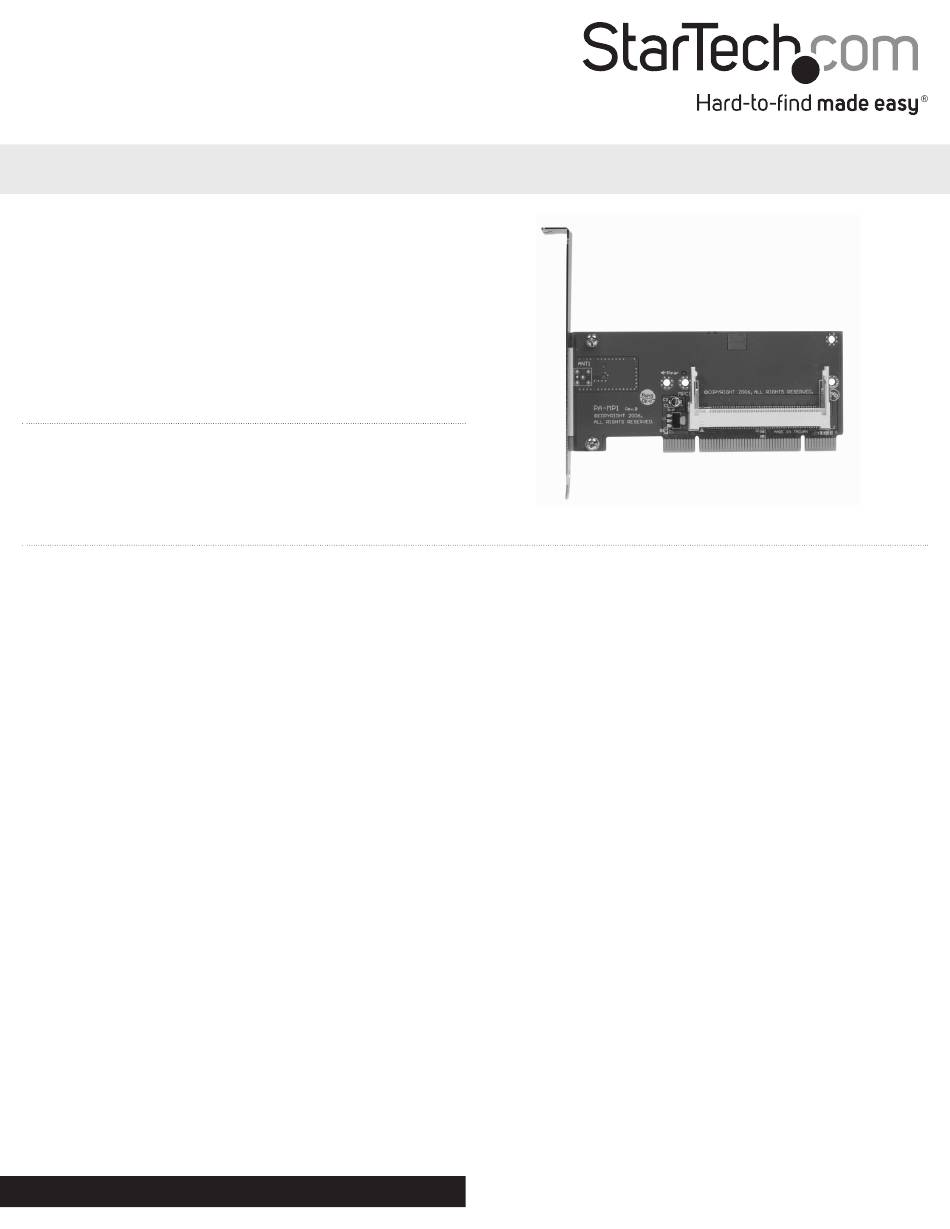

PCI to Mini PCI Adapter Card
PCI2MPCIB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• PCI to Mini PCI Adapter Card
• Instruction Manual
Installation
WARNING! Computer equipment can be severely damaged by static electricity. Be sure that you are properly grounded before
opening your computer case or touching your hard drive. StarTech.com recommends that you wear an anti-static strap when
installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by
touching a large grounded metal surface (such as the computer case) for several seconds.
Remove the computer cover. For more detailed instruction on how to perform this step, please refer to the documentation
1.
that was included with your computer at the time of purchase.
Locate an empty PCI slot and remove the metal bracket covering the accompanying empty port/socket.
2.
Position the card above the open PCI slot, ensuring that the card is properly aligned with the slot. Insert the card
3.
firmly into the slot, distributing force evenly across the length of the board, then fasten the metal bracket to the
computer case (using the screw removed in step #2).
Once PCI2MPCIB has been secured within the PCI slot, align the Mini PCI card you wish to install with the Mini
4.
PCI slot, so th at the Mini PCI card is on a slight angle (~ 45°) with the PCI2MPCIB board (see fig. 1-1). With the
Mini PCI card still on a slight angle, insert the card into the slot until the gold connectors at the bottom of the
card are no longer visible (now hidden by the Mini PCI slot).
Gently, press the Mini PCI card towards PCI2MPCIB until the retaining notches on the card snap into the plastic
5.
retaining tabs (see fig. 1-2). Once PCI2MPCIB is secured within the PCI slot, replace the computer cover and
re-connect all power to the computer.
For the most up-to-date information, please visit: www.startech.com
*actual product may vary from photos
Manual Revision: 10/28/2011
