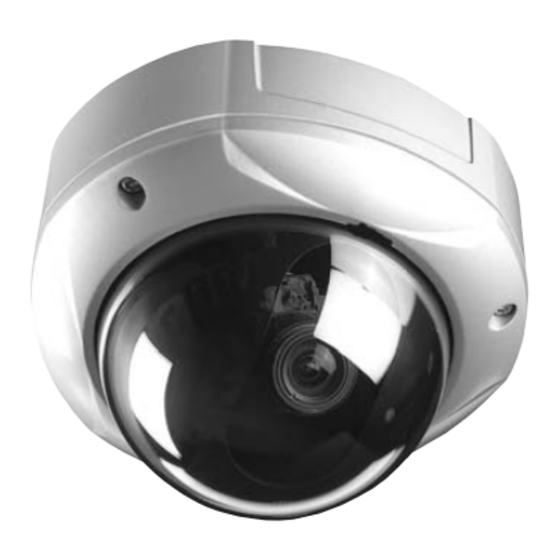

- Page 1 Digital Day&Night Vandal Resistant Dome Camera Operation Manual ICR540VD Day&Night Vandal Resistant Dome Camera Copyright 2007, ICRealtime, Inc. Made in KOREA...
- Page 2 °fl Do NOT use power sources other than those specified. °fl Do NOT expose this appliance to rain or moisture. This installation should be made by a qualified service person and should conform to all local codes. ICR540VD - Vandal Resistant Dome Camera...
-
Page 3: Features
(INT/LL) functions are also available. The PRIVACY function conceals the areas not required to appear on the image. Weather Proof (IP66) 3 Axis built-in Vandal Resistant Dome Housing ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... -
Page 4: Table Of Contents
ßöOSD • AGC (Auto Gain Control) ßöVBS-EXTRA • DNR (Digital Noise Reduction) ßö3 Axis Bracket • SENS-UP ßöSMPS • SPECIAL • EXIT Dimensions Installation Troubleshooting Cable Connections Specification Digital Day&Night Vandal Resistant Dome Camera ICR540VD - Vandal Resistant Dome Camera... - Page 5 Severe lighting change or flicker can This is one of the most important parts of cause the camera to work improperly. the camera. Be careful not to leave fingerprints on the lens cover. ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera...
-
Page 6: Components
¡á Components Names and Functions of Parts ¡á 1. COLOR DOME CAMERA 2. SCREWS 3. WRENCH 4. WIRE FOR VBS-EXTRA 5. INSTRUCTION GUIDE ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... -
Page 7: Names And Functions Of Parts
¡Ü ¡Ü LEFT & RIGHT buttons : Used when changing item values, by moving the cursor to the left or right on the menu screen. ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... -
Page 8: Installation
4. Dome Cover Mounting - Replace the dome cover to the base and tighten 3 screws. M4*10 Cable Connections ¡á DOME COVER AC24V/DC12V AC IN AC IN DC IN DC IN ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... -
Page 9: Camera Operation
2. Select a menu item from the list available by using the UP and DOWN buttons. ¶U The cursor can be moved up or down by using the UP and DOWN buttons. Position the cursor to point to the function requiring adjsutment. ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... - Page 10 'LENS' by using the UP and DOWN buttons. 2. Select the type of the lens setting to use by pressing the LEFT or RIGHT button. SETUP LENS SHUTTER WHITE BAL. BACKLIGHT ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera...
-
Page 11: Shutter (Condition And Speed Control)
•N If the camera directly faces a fluorescent light or is installed in a place where there are considerable changes in illumination, the WHITE BALANCE function may become unstable. ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... -
Page 12: Blc (Back Light Compensation)
®\ MIDDLE : The gain increases from 0dB up to 30dB. SPECIAL ®\ LOW : The gain increases from 0dB up to 18dB. EXIT ®\ OFF : BACKLIGHT function does not operate. ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... -
Page 13: Dnr (Digital Noise Reduction)
SENS UP helps maintain a bright, clear screen image by automatically detecting changes in the level of light in low light level conditions. ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... -
Page 14: Special
Position the cursor above the letter you wish to correct and then move the cursor RETURN onto the letter you wish to choose and press the SET button. ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... - Page 15 COLOR mode is selected during daylight and B/W mode at night time. - ON : The color mode is selected by default, and the modes do not change automatically. ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera...
-
Page 16: Exit
®\ RESET : Returns to the level which was set by the manufacturer for shipment. ®\ RETURN : Saves the SPECIAL menu and returns to the SETUP menu. EXIT Saves all the setting menus and then exits. ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... -
Page 17: Troubleshooting
• Check if the SHUTTER menu is set to fluctuating. Check for ground loops. appear on the screen. MANUAL mode. ICR540VD - Vandal Resistant Dome Camera Digital Day&Night Vandal Resistant Dome Camera... -
Page 18: Specification
OFF / LOW / MIDDLE / HIGH (Noise Reduction) Mirror Built-in (Horizontal Image Inversion) Privacy Function ON / OFF (4 Programmable Zone) -10°C ~ +50°C / 30~90% RH Operating Temperature / Humidity Weight 1,100g ICR540VD - Vandal Resistant Dome Camera...
