Quick Start Guide June 2023 Contents About this guide .......................... 3 System readiness......................... 5 Transmitter installation....................... 7 Safety instrumented systems installation................21 Product certifications........................ 22 Emerson.com/Rosemount...

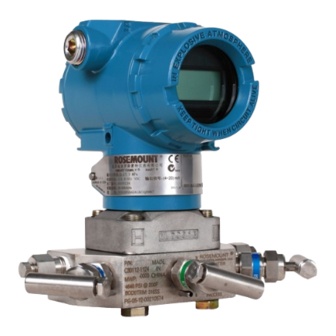

June 2023 Quick Start Guide 1 About this guide This guide provides basic guidelines for Rosemount 3051 Pressure Transmitters. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof, Flameproof, or intrinsically safe (I.S.) installations. Refer to Rosemount 3051 Reference Manual for more instructions.
Page 4
Physical security is an important part of any security program and fundamental to protecting your system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility. Emerson.com/Rosemount...
Rosemount 3051 device revisions and drivers Table 2-1 provides the information necessary to ensure you have the correct device driver and documentation for your device. Table 2-1: Rosemount 3051 with 4-20 mA HART Protocol Device Revisions and Files Releas Device identification...
Page 6
Quick Start Guide June 2023 Table 2-1: Rosemount 3051 with 4-20 mA HART Protocol Device Revisions (continued) and Files Releas Device identification Device driver Review Review e date identification instruction functionalit NAMUR HART HART Device Rosemount Change hardwar softwar universa revisio...
June 2023 Quick Start Guide 3 Transmitter installation 3.1 Mount the transmitter 3.1.1 Liquid applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward.
Page 8
Quick Start Guide June 2023 3.1.2 Gas applications Procedure 1. Place taps in the top or side of the line. 2. Mount beside or above the taps. Figure 3-2: Coplanar and In-line Gas Applications Coplanar In-line Flow Emerson.com/Rosemount...
Page 9
June 2023 Quick Start Guide 3.1.3 Steam applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water. Figure 3-3: Coplanar and In-line Steam Applications Coplanar In-line Flow Figure 3-4: Panel and Pipe Mounting *5/6 x 1½...
Page 10
Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 3-5 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
Page 11
June 2023 Quick Start Guide 3. Torque the bolts to the initial torque value using a crossing pattern. See Table 3-1 for initial torque value. 4. Torque the bolts to the final torque value using the same crossing pattern. See Table 3-1 for final torque value.
Page 12
3. Default alarm is high. 4. The security switch allows (unlocked symbol) or prevents (locked symbol) any configuration of the transmitter. Rosemount 3051D original position aligns with “H” side; Rosemount 3051G original position is the opposite side of bracket holes. Emerson.com/Rosemount...
Page 13
June 2023 Quick Start Guide 5. Default security is off (unlocked symbol). 6. If the transmitter is installed, secure the loop, and remove power. 7. Remove the housing cover opposite the field terminal side. Do not remove the instrument cover in explosive atmospheres when the circuit is live.
Page 14
CAUTION Installation of the transient protection terminal block does not provide transient protection unless the Rosemount 3051 case is properly grounded. Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment.
Page 15
June 2023 Quick Start Guide 4. Ensure proper grounding. It is important that the instrument cable shield be: a) Trimmed close and insulated from touching the transmitter housing b) Connected to the next shield if cable is routed through a junction box c) Connected to a good earth ground at the power supply 5.
Page 16
Reference Manual for configuration instructions using AMS Device Manager. 3.4.1 Verifying configuration with a Field Communicator A Rosemount 3051 DD must be installed on the Field Communicator to verify configuration. Fast Key sequences for the latest DD are shown in Table 2-2.
Page 17
June 2023 Quick Start Guide Function Fast Key sequence HART 7 HART 5 Disable Configuration Buttons 2, 2, 6, 3 2, 2, 6, 3 Rerange with Keypad 2, 2, 2, 1 2, 2, 2, 1 Loop Test 3, 5, 1 3, 5, 1 ...
Page 18
Quick Start Guide June 2023 Figure 3-11: Internal and External LOI Buttons A. Internal buttons B. External buttons Table 3-2: LOI Button Operation Button Left SCROLL Right ENTER Figure 3-12: LOI Menu Assign PV HART Revision Emerson.com/Rosemount...
Page 19
3.4.3 Switch HART revision mode If the HART configuration tool is not capable of communicating with HART Revision 7, the Rosemount 3051 will load a generic menu with limited capability. The following procedures will switch the HART revision mode from the generic menu: Procedure Manual Setup → Device Information → Identification → Message...
Page 20
Perform trim with LOI (option M4) for a zero trim. 3. Set the transmitter pressure. 4. See Figure 3-12 for the operating menu. a) Perform an analog zero trim by selecting Rerange. b) Perform a digital zero trim by selecting Zero Trim. Emerson.com/Rosemount...
June 2023 Quick Start Guide 4 Safety instrumented systems installation For safety certified installations, refer to Reference Manual installation procedure and system requirements. Quick Start Guide...
A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. 5.1.2 Europe E8 ATEX Flameproof and Dust Certificate DEKRA12ATEX0212X (Ex d);...
Page 23
June 2023 Quick Start Guide 3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information.
Page 24
–60 to +80 °C –60 to +80 °C –60 to +120 °C –60 to +80 °C Special Conditions for Safe Use (X): 1. This device contains a thin wall diaphragm less than 1mm thickness that forms a boundary between zone 0 (process Emerson.com/Rosemount...
Page 25
June 2023 Quick Start Guide connection) and zone 1 (all other parts of the equipment). The model code and datasheet are to be consulted for details of the diaphragm material. Installation, maintenance and use shall take into account the environmental conditions to which the diaphragm will be subjected.
Page 26
–50 °C ≤ T ≤ +65 °C °C –50 °C ≤ T ≤ +70 –50 °C ≤ T ≤ +70 °C °C 2. 用于爆炸性粉尘环境中,产品使用环境温度为:-20 ℃≤Ta≤+ 85 ℃。 3. 产品外壳设有接地端子,用户在使用时应可靠接地。 4. 安装现场应不存在对产品外壳有腐蚀作用的有害气体。 5. 现场安装时,电缆引入口须选用国家指定的防爆检验机构按检验认 可、具有 Ex dⅡC,Ex tD A20 IP66 防爆等级的电缆引入装置或堵 封件,冗余电缆引入口须用堵封件有效密封。 Emerson.com/Rosemount...
Page 28
GB3836.8-2014 标准中第 6.5.1 条规定的 500 V 对地电压试验 1 分钟,安 装时需考虑在内。 产品使用注意事项: 1. 产品使用环境温度范围为:–40 °C ≤ T ≤ +70 °C。 2. 最高输入电压:42.4 Vdc。 3. 现场安装时,电缆引入口须选用经国家指定的防爆检验机构检验认 可的、具有 Ex eⅡC Gb 或 Ex nA ⅡC Gc 防爆等级及 IP66 外壳防 护等级的的电缆引入装置或堵封件,冗余电缆引入口须用堵封件有 效密封。电缆引入装置或封堵件的安装使用必须遵守其使用说明书 的要求并保证外壳防护等级达到 IP54(符合 GB4208-2008 标准要 求)以上。 4. 用户不得自行更换该产品的零部件,应会同产品制造商共同解决运 行中出现的故障,以杜绝损坏现象的发生。 Emerson.com/Rosemount...
Page 29
June 2023 Quick Start Guide 5. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013“爆炸性环境 第 13 部分:设备的修理、检修、修 复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第 15 部 分:危险场所电气安装(煤矿除外)”、GB3836.16-2006“爆炸性气 体环境用电气设备 第 16 部分:电气装置的检查和维护(煤矿除 外)” 、GB50257-2014“电气装置安装工程爆炸和火灾危险环境电 力装置施工及验收规范”的有关规定。 5.1.5 Combinations Combination of E7, I7, and N7 Combination of E8, I1, and N1 Quick Start Guide...
Page 30
03031-1019; NI CL 1, DIV 2, GP A, B, C, D; Temp code T4; Type 4x; Factory Sealed Special Conditions for Safe Use (X): 1. The Rosemount 3051 transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.
Page 31
June 2023 Quick Start Guide 2. The Rosemount 3051 transmitter with the transient terminal block (option code T1) will not pass the 500 Vrms dielectric strength test and this must be taken into account during installation. C6 Canada Explosionproof, Dust-Ignitionproof, Intrinsic Safety...
Page 32
'ib' circuit according to EN 50020. 6. Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66. Emerson.com/Rosemount...
Page 33
June 2023 Quick Start Guide 7. Unused cable entries must be filled with suitable blanking plugs which maintain the ingress protection of the enclosure to at least IP66. 8. Cable entries and blanking plugs must be suitable for the ambient range of the apparatus and capable of withstanding a 7J impact test.
Page 34
2. Flameproof joints are not intended for repair. 3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces, and only clean the painted Emerson.com/Rosemount...
Page 35
June 2023 Quick Start Guide surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. 4. Appropriate cable, glands and plugs need to be suitable for a temperature of 5 °C greater than maximum specified temperature for location where installed.
Page 36
E3 China Flameproof GYJ15.1300X Certificate GB3836.1-2010, GB3836.2-2010 Standards Ex d IIB+H T5 Gb Markings Special Conditions for Safe Use (X): 1. Ambient temperature range: –20 °C +85 °C. 2. The earth connection facility in the enclosure should be connected reliably. Emerson.com/Rosemount...
Page 37
June 2023 Quick Start Guide 3. During installation, there should be no mixture harmful to housing. 4. During installation in hazardous location, Cable glands and blanking plugs, certified by state-appointed inspection bodies with Ex d IIC Gb type of protection should be used. Redundant cable entries should be blocked with blanking plugs.
Page 38
EN60079-0:2012, EN60079-1:2007, IEC60079-7:2007 Standards Markings II 2 G Ex de IIC Gb Table 5-8: Conduit Plug Thread Sizes Thread Identification mark M20 x 1.5 ½–14 NPT ½ NPT Table 5-9: Thread Adapter Thread Sizes Male thread Identification mark M20 x 1.5–6g Emerson.com/Rosemount...
Page 39
June 2023 Quick Start Guide (continued) Table 5-9: Thread Adapter Thread Sizes ½–14 NPT ½–14 NPT ¾–14 NPT ¾–14 NPT Female thread Identification mark M20 x 1.5–6H ½–14 NPT ½–14 NPT G½ G½ Special Conditions for Safe Use (X): 1. When the thread adapter or blanking plug is used with an enclosure in type of protection increased safety “e”...
Page 40
Quick Start Guide June 2023 5.3 EU Declaration of Conformity Emerson.com/Rosemount...
Page 41
June 2023 Quick Start Guide Quick Start Guide...
Page 42
Quick Start Guide June 2023 Emerson.com/Rosemount...
Page 43
June 2023 Quick Start Guide Quick Start Guide...
Page 44
2023 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
