English CONTENTS GENERAL POWER TOOL SAFETY WARNINGS ........22 SAFETY WARNINGS COMMON FOR GRINDING OR ABRASIVE CUTTING-OFF OPERATIONS ..........24 KICKBACK AND RELATED WARNINGS ............. 26 SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS ..........27 ADDITIONAL SAFETY WARNINGS SPECIFIC FOR ABRASIVE CUTTING-OFF OPERATIONS ..........
Page 23
English Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
English Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off...
Page 25
English Operations such as sanding, wire brushing, polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury. Do not use accessories which are not specifi cally designed and recommended by the tool manufacturer.
English Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
English SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS Use only wheel types that are recommended for your power tool and the specifi c guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
English Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
English — Ensure that ventilation openings are kept clear when working in dusty conditions, if it should become necessary to clear dust, fi rst disconnect the tool from the mains supply (use non metallic objects) and avoid damaging internal parts; —...
English 11. Caution when using near welding equipment When using the grinder in the immediate vicinity of welding equipment, the rotational speed may become unstable. Do not use the grinder near welding equipment. 12. RCD The use of a residual current device with a rated residual current of 30 mA or less at all times is recommended.

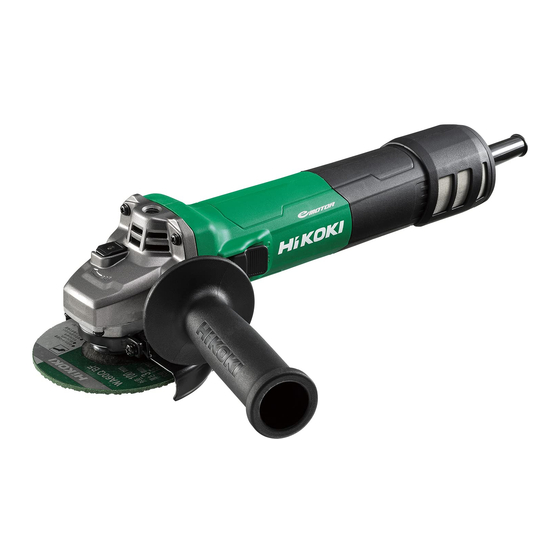

English NAME OF PARTS Disc Grinder Housing Filter Tail cover Side handle Push button Nameplate Gear cover Motor Switch Wheel guard Small screws Depressed (×2) Dial center wheel <G10VE2> Filter Housing Push button Tail cover Nameplate Side handle Gear cover Motor Switch Tool-less...
English SPECIFICATIONS Model G10VE2 G13VE2 Voltage 220 V Power Input 1200 W Rated speed 2800–10000 /min 2500–8500 /min Outer dia. × thickness × hole dia. 100 × 6 × 16 mm 125 × 6 × 22.23 mm Wheel Peripheral speed 72 m/s 80 m/s Weight (Only main body)
English STANDARD ACCESSORIES See the list below to check the accessories for G10VE2 and G13VE2. G10VE2 G13VE2 Wrench Side handle Depressed center wheel APPLICATIONS ○ Removal of casting fi n and fi nishing of various types of steel, bronze and aluminum materials and castings.
Page 34
English Mounting the wheel guard <G10VE2> (Fig. 2) Be sure to mount the wheel guard at an angle that will Wheel protect the operator’s body from injury by a broken wheel Screw guard piece. Packing [Installing Wheel Guard] gland ○ Slightly loosen the screw on the wheel guard. ○...
Page 35
English Ensure that mounted wheels and points are fi tted in accordance with the manufacturer’s instructions. Ensure that the depressed center wheel to be utilized is the correct type and free of cracks or surface defects. Also ensure that the depressed center wheel is properly mounted and the wheel nut is securely tightened, Refer to the section on “ASSEMBLING AND DISASSEMBLING THE DEPRESSED CENTER WHEEL”.
English PRACTICAL GRINDER APPLICATION Switch operation (Fig. 6) When you start the tool, fi rstly push the rear part of switch, then push the switch forward. When you need to keep switch in ON position, push the head of switch to latch in ON position. Switch When release the switch to OFF position, push the rear part of switch.
Page 37
English Dial Tools Polishing, fi nishing Radial grinding disc Sanding disc Removal of paint or coat Removal of rust Removal of burrs Grinding Depressed center wheel Rough grinding Depressed center wheel Cutting Diamond wheel NOTE Use caution not to turn the dial scale to any value below 1 or above 6. CAUTION ○...
English ASSEMBLING AND DISASSEMBLING THE DEPRESSED CENTER WHEEL (Fig. 9) WARNING Be sure to switch OFF and disconnect the attachment plug from the receptacle to avoid a serious accident. Assembling (Fig. 9) Turn the disc grinder upsidedown so that the spindle is facing upward. Align the across fl...
English ASSEMBLING AND DISASSEMBLING THE CUTTING WHEEL (Fig. 10) WARNING Be sure to switch OFF and disconnect the attachment plug from the receptacle to avoid a serious accident. Assembling (Fig. 10) Turn the disc grinder upsidedown so that the spindle is facing upward. On the spindle, place the wheel washer towards the spindle and then attach the cutting wheel.
English Disassembling Follow the above procedures in reverse. CAUTION ○ Confi rm that the cutting wheel is mounted fi rmly. ○ Confi rm that the push button is disengaged by pushing push button two or three times before switching the power tool on. NOTE ○...
Replacing supply cord If the replacement of the supply cord is necessary, this has to be done by HiKOKI Authorized Service Center in order to avoid a safety hazard. If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the service organization.
Page 43
English Filter set replacement Unclip Removal procedure (Fig. 13) Unclip Flathead Use a fl athead screwdriver to unclip the two screwdriver clips joining the bottom and side fi lters. Push out the bottom fi lter in the direction indicated by the arrow. Removing the bottom fi...
