- Page 1 PCI-1424...
-
Page 2: What You Need To Get Started

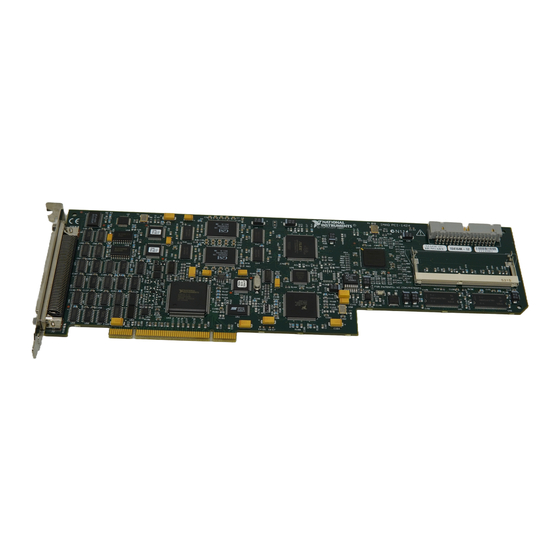

Getting Started with the NI PCI-1424 The NI PCI-1424 (NI 1424) is a high-quality monochrome and color digital image acquisition device. This document describes how to install and configure the necessary hardware and software components to begin using the NI 1424. -
Page 3: Safety Information
Remove power from signal lines before connection to or disconnection from the device. Caution National Instruments measurement products may be classified as either Measurement Category I or II. Operate products at or below the Measurement Category level specified in the hardware specifications. - Page 4 Never touch the exposed pins of connectors. Remove the device from the package and inspect it for loose components or any other signs of damage. Notify National Instruments if the device appears damaged in any way. Do not install a damaged device in the computer.
-
Page 5: Installation
External Connections Number of external trigger I/O lines......4 Trigger input Voltage range ..........0 V to 5 V (TTL) Input high voltage ........2.0 V Input low voltage ........0.8 V Polarity............Programmable, active high or active low Getting Started with the NI PCI-1424 ni.com... - Page 6 Video data signal type..........LVDS or TTL Memory Onboard memory ...........16 MB SDRAM LUTs ..............Four 8-bit; two 10-bit to 16-bit Note SO-DIMM memory upgrades are available in 64 MB and 128 MB densities. © National Instruments Corporation Getting Started with the NI PCI-1424...
-
Page 7: Serial Interface
Note For UL and other safety certifications, refer to the product label or visit ni.com/ , search by model number or product line, and click the appropriate link certification in the Certification column. Getting Started with the NI PCI-1424 ni.com... -
Page 8: Electromagnetic Compatibility
Waste Electrical and Electronic Equipment (WEEE) EU Customers At the end of their life cycle, all products must be sent to a WEEE recycling center. For more information about WEEE recycling centers and National Instruments WEEE initiatives, visit ni.com/environment/weee.htm © National Instruments Corporation... -
Page 9: Where To Go For Support
National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world to help address your support needs. For telephone support in the United States, create your service request at and follow the calling instructions or dial 512 795 8248.
