Getting Started with the NI PXI/PCI-1409

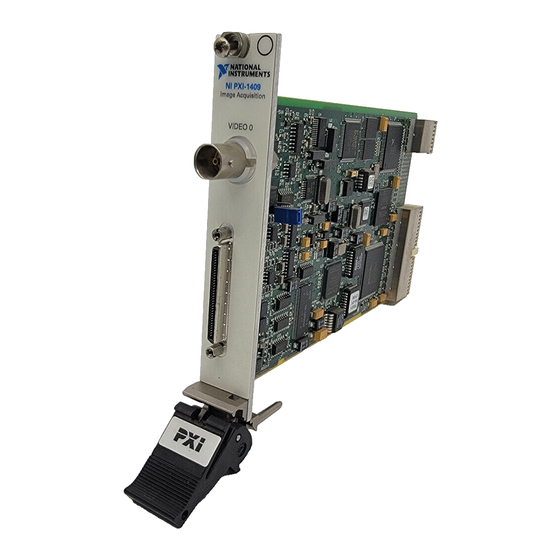

The NI PXI/PCI 1409 (NI 1409) is a high-accuracy monochrome image acquisition device for the PXI,
PCI, or CompactPCI bus. This document describes how to install and configure the necessary hardware
and software components to begin using the NI 1409.
What you Need to Get Started
You need the following items to set up and use NI 1409:
❑
NI 1409 image acquisition device
❑
Video camera or other video device
❑
BNC-1 shielded, 75 Ω BNC cable for VIDEO0, included with the NI 1409
❑
BNC to RCA adapter, included with the NI 1409
❑
PCI, PXI, or CompactPCI computer running Microsoft Windows Vista/XP/2000 with at least
one available slot
Note
Visit
National Instruments image acquisition device compatibility with Windows Vista.
❑
NI Vision Acquisition Software 8.0 or later, which includes the NI-IMAQ driver software
❑
Optional software for developing applications:
–
NI Vision Builder for Automated Inspection
–
NI Vision Development Module
–
LabVIEW
–
LabWindows
–
Microsoft Visual Basic
Optional Equipment
National Instruments offers the IMAQ-A6822 BNC connector block and cable for trigger and additional
camera support for the NI 1409. Refer to the National Instruments catalog, visit
National Instruments office nearest you for more specific information about the IMAQ-A6822 BNC
connector block and cable.
Related Documentation
The following documents contain additional information that you may find helpful:
•
NI PXI/PCI-1409 User Manual—Contains information about programming options, hardware
functionality, and signal connections.
•
NI Vision Acquisition Software Release Notes—Contains information about new functionality,
minimum system requirements, and installation instructions for the NI-IMAQ driver software.
and enter
ni.com/info
™
™
/CVI
for more information about
rdvisionvista
, or call the
ni.com
Advertisement
Table of Contents
Related Manuals for National Instruments PXI-1409
Summary of Contents for National Instruments PXI-1409
- Page 1 /CVI – Microsoft Visual Basic Optional Equipment National Instruments offers the IMAQ-A6822 BNC connector block and cable for trigger and additional camera support for the NI 1409. Refer to the National Instruments catalog, visit , or call the ni.com National Instruments office nearest you for more specific information about the IMAQ-A6822 BNC connector block and cable.
-
Page 2: Safety Information
Remove power from signal lines before connection to or disconnection from the device. Caution National Instruments measurement products may be classified as either Measurement Category I or II. Operate products at or below the Measurement Category level specified in the hardware specifications. -
Page 3: Installation
Never touch the exposed pins of connectors. Remove the device from the package and inspect it for loose components or any other signs of damage. Notify National Instruments if the device appears damaged in any way. Do not install a damaged device in the computer. - Page 4 To protect yourself and the computer from electrical hazards, the computer must remain unplugged until the installation is complete. On the NI PXI-1409, verify that the W1 jumper is intact. The NI PXI-1409 ships with this jumper intact. Choose an unused PXI or CompactPCI 5 V slot that supports bus arbitration or bus-master cards.
-
Page 5: Specifications
3.58 MHz notch filter, or 4.43 MHz notch filter) Filter characteristics ..........Attenuation at notch frequency >30 dB Input range (black to white)........700 mV (calibrated) 50 mV to 1.40 V full scale © National Instruments Corporation Getting Started with the NI PXI/PCI-1409... -
Page 6: Pci Interface
Accuracy ..............±1.5% of reading Temperature drift ...........<250 ppm/°C A/D Conversion Gray levels .............1024 (10-bit) Differential nonlinearity.........±1 LSB max RMS noise..............<0.5 LSB rms Signal-to-noise ratio..........56 dB typical Sampling rate ............2 MHz to 40 MHz, externally clocked Pixel aspect ratio ............Programmable ±5% of nominal Internal Pixel Clock Frequencies range ..........11 MHz to 40 MHz Pixel ratio for standard video sources....±5%... -
Page 7: Electromagnetic Compatibility
Physical Dimensions NI PCI-1409...........10.7 cm × 17.5 cm (4.2 in. × 6.9 in.) NI PXI-1409 ..........10 cm × 16 cm (3.9 in. × 6.3 in.) Weight PCI-1409............0.127 kg (0.28 lb) PXI-1409............0.172 kg (0.38 lb) Environment The NI 1409 is intended for indoor use only. -
