Summary of Contents for Dell EMC Latitude 3410

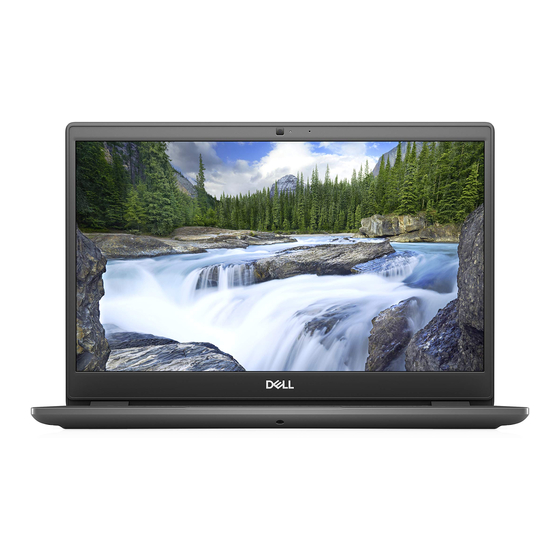

- Page 1 Latitude 3410 Setup and specifications guide Regulatory Model: P129G Regulatory Type: P129G001/P129G002 May 2020 Rev. A00...
- Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
-
Page 3: Table Of Contents
Contents 1 Set up your computer........................5 2 Create a USB recovery drive for Windows..................7 3 Chassis overview..........................8 Display view.................................... 8 Left view....................................9 Right view....................................9 Palmrest view..................................10 Bottom view..................................11 Keyboard shortcuts................................11 4 Technical specifications......................13 Processors.....................................13 Chipset....................................13 Operating system................................. - Page 4 Connection................................... 29 Power....................................30 Security....................................31 Passwords.................................... 32 Update Recovery.................................33 System Management................................34 Keyboard....................................35 Pre-boot Behavior................................36 Virtualization..................................37 Performance..................................37 System Logs..................................38 Updating the BIOS in Windows ............................38 Updating BIOS on systems with BitLocker enabled....................39 Updating your system BIOS using a USB flash drive....................39 System and setup password..............................40 Assigning a system setup password...........................
-
Page 5: Set Up Your Computer
Set up your computer Steps 1. Connect the power adapter and press the power button. NOTE: To conserve battery power, the battery might enter power saving mode. 2. Finish Windows system setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: •... - Page 6 Table 1. Locate Dell apps(continued) Dell apps Details SupportAssist Proactively checks the health of your computer’s hardware and software. NOTE: Renew or upgrade your warranty by clicking the warranty expiry date in SupportAssist. Dell Update Updates your computer with critical fixes and important device drivers as they become available.
-
Page 7: Create A Usb Recovery Drive For Windows
Create a USB recovery drive for Windows Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to create the recovery drive. Prerequisites NOTE: This process may take up to an hour to complete. -
Page 8: Chassis Overview
Chassis overview Topics: • Display view • Left view • Right view • Palmrest view • Bottom view • Keyboard shortcuts Display view Latitude 3410 display 1. Camera 2. Camera status light 3. Microphone 4. LCD Panel Chassis overview... -
Page 9: Left View
Left view 1. DC-in port 2. HDMI 1.4 port 3. USB 3.2 Gen 1 PowerShare 4. USB 3.2 Gen 1 Type-C port with DisplayPort 1.2 Alt mode Right view 1. MicroSD 3.0 card reader slot 2. Universal audio jack 3. USB 2.0 Type-A port 4. -
Page 10: Palmrest View
Palmrest view 1. Power button with optional fingerprint reader 2. Keyboard 3. Touchpad Chassis overview... -
Page 11: Bottom View
Bottom view 1. Air vent 2. Service tag location 3. Speakers Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations. Table 2. List of keyboard shortcuts Keys Primary behavior Fn + Esc... - Page 12 Table 2. List of keyboard shortcuts(continued) Keys Primary behavior Fn + F6 Decrease brightness Fn + F7 Increase brightness Fn + F8 Switch to external display Fn + F10 Print screen Fn + F11 Home Fn + 12 Fn + Ctrl Open application menu Chassis overview...
-
Page 13: Technical Specifications
Technical specifications Processors Table 3. Processors Description Values Processors Intel Celeron 5205U 10th Generation 10th Generation 10th Generation 10th Generation Intel Processors Intel Core i3 Intel Core i5 Intel Core i5 Core i7 Processors, Processors, Processors, Processors, i7-10510U i3-10110U i5-10210U i5-10310U Wattage 15 W... -
Page 14: Memory
Memory Table 5. Memory specifications Description Values Slots Two SODIMM slots Type DDR4 Speed • 2400 MHz (Intel Celeron) • 2667 MHz (Intel Core i3 / i5 / i7) Maximum memory 32 GB Minimum memory 4 GB Configurations supported • 4 GB DDR4 at 2400 MHz/2667 MHz (1x4 GB) •... -
Page 15: Ports And Connectors
Table 7. Intel UHD Graphics specifications(continued) Intel UHD Graphics Memory Type Graphics Level i3/i5/i7: GT2 (UHD) Estimated Maximum Power Consumption (TDP) 15 W (included in the CPU power) Overlay Planes Operating Systems Graphics/ Video API Support DirectX 12, OpenGL (4.5 from Intel CML POR) Maximum Vertical Refresh Rate •... -
Page 16: Audio
Table 9. Internal ports and connectors(continued) Description Values NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626. SIM card Not Supported Audio Table 10. Audio specifications Description Values Controller Realtek ALC3204 Stereo conversion Supported Internal interface... -
Page 17: Camera
Camera Table 13. Camera specifications Standard Webcam Description Values Number of cameras Type HD RGB camera Location Front Camera Sensor type CMOS sensor technology Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps Diagonal viewing angle 87 degrees Table 14. -
Page 18: Communications
Communications Ethernet Table 15. Ethernet specifications Description Values Model number Integrated Realtek RTL8111H Transfer rate e.g. 10/100/1000 Mbps Wireless module Table 16. Wireless module specifications Description Values Model number Intel Wi-Fi 6 AX201 Qualcomm QCA61x4A Transfer rate Up to 2400 Mbps Up to 867 Mbps Frequency bands supported 2.4 GHz/5 GHz... -
Page 19: Battery
Table 18. Power adapter specifications(continued) Description Values Connector dimensions: 4.5 mm x 2.9 mm 4.5 mm x 2.9 mm 48.26 mm x 129.54 mm x 215.9 mm Input voltage 100 VAC x 240 VAC 100 VAC x 240 VAC 100 VAC x 240 VAC Input frequency 50 Hz x 60 Hz 50 Hz x 60 Hz... -
Page 20: Dimensions And Weight
Table 19. Battery specifications(continued) Description Values Life span (approximate) 300 discharge/charge cycles 300 discharge/charge cycles Coin-cell battery CR2032 CR2032 Operating time Varies depending on operating conditions Varies depending on operating conditions and can significantly reduce under certain and can significantly reduce under certain power-intensive conditions. -
Page 21: Fingerprint Reader
Table 21. Display specifications (continued) Decsription Values Contrast ratio (min) 500:1 500:1 400:1 Response time (max) 35 ms 35 ms 16 ms Refresh rate 60 Hz 60 Hz 60 Hz Horizontal view angle 80 degrees 80 degrees 40 degrees Vertical view angle 80 degrees 80 degrees Top/bottom 10/30 degrees... -
Page 22: Computer Environment
Table 24. Security Software specifications(continued) Specifications Dell Client Command Suite Dell BIOS Verification Optional Dell Endpoint Security and Management Software VMware Carbon Black Endpoint Standard VMware Carbon Black Endpoint Standard + Secureworks Threat Detection and Response Dell Encryption Enterprise Dell Encryption Personal Carbonite VMware Workspace ONE Absolute®... -
Page 23: Software
Software This chapter details the supported operating systems along with instructions on how to install the drivers. Topics: • Downloading Windows drivers Downloading Windows drivers Steps 1. Turn on the notebook. 2. Go to Dell.com/support. 3. Click Product Support, enter the Service Tag of your notebook, and then click Submit. NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your notebook model. -
Page 24: System Setup
System setup CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain changes can make your computer work incorrectly. NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program screen information for future reference. -
Page 25: Navigation Keys
Table 27. Other Options Options Description BIOS SETUP Allows the user to configure the BIOS and control system functions Diagnostics Allows the user to run system tests to identify issues BIOS Update Allows the user to search and install the latest BIOS updates SupportAssist OS Recovery Used to analyze, repair, and restore the operating system on the system... - Page 26 Table 28. BIOS Overview Page(continued) Options Description • Primary battery - This helps identify if the system is running on the primary battery. • Battery level - This gives the percentage of battery backup remaining for the computer. • Battery state - This helps identify if the battery is in charging or active use state.
-
Page 27: Boot Configuration
Table 28. BIOS Overview Page(continued) Options Description • Panel Type - This field mentions the type of display panel used on the computer. • Video controller - This field mentions the type of video controller used on the computer. • Video Memory - This field gives the capacity of the video memory available for use on the computer. -
Page 28: Integrated Devices
Table 29. Boot Configuration: (continued) Options Description Expert Key Management Enable Custom Mode This section contains a toggle switch that allows the user to enable or disable Custom Mode. This mode allows the PK, KEK, db and dbx security key databases to be manipulated. Custom Mode Key Management This section helps the user to select the Key Database to allow modification. -
Page 29: Connection
Table 31. Storage Options Description SATA Operation SATA Operation This section allows the user to select the operating mode of the integrated SATA hard drive controller. The following options are available here: • Disabled - SATA controllers are disabled. • AHCI - SATA is configured in AHCI mode. -
Page 30: Power
Table 32. Connection(continued) Options Description Wireless Radio Control This section contains a toggle switch that allows the user to enable or disable a feature where the system will sense a connection to a wired network and disable the WLAN or WWAN connection. Power This section provides power details and settings. -
Page 31: Security
Security This section provides security details and settings. Table 34. Security Options Description TPM 2.0 Security TPM 2.0 Security On This section contains a toggle switch to select whether Trusted Platform Module(TPM) is visible to the Operating System(OS). PPI Bypass for Enabled Commands This section contains a toggle switch which controls the TPM Physical Presence Interface(PPI). -
Page 32: Passwords
Table 34. Security(continued) Options Description Start Data Wipe This section contains toggle switch which when enabled ensures that the BIOS will queue up a data wipe cycle for storage device(s) connected to the motherboard on the next reboot. Absolute Absolute This section lets the user enable, disable or permanently disable the BIOS module interface of the optional Absolute Persistence Module service from Absolute Software. -
Page 33: Update Recovery
Table 35. Passwords(continued) Options Description Password Bypass Password Bypass When enabled, this always prompts for system and internal hard drive passwords when powered on from Off state. Options available are as below: • Disabled • Reboot Bypass Password Changes Enable Non-Admin Password Changes This section contains a toggle switch which when on, user can change system and hard drive password without the need for admin password. -
Page 34: System Management
Table 36. Update Recovery(continued) Options Description BIOSConnect BIOSConnect This field contains a toggle switch which allows the user to enable or disable BIOSConnect setup to attempt cloud Service OS recovery if the main operating system fails to boot with a set number of failures. -
Page 35: Keyboard
Table 37. System Management(continued) Options Description • Select Days Keyboard This section provides keyboard settings. Table 38. Keyboard Options Description Numlock Enable Enable Numlock This field contains a toggle switch to enable or disable Numlock function on boot. Fn Lock Options Fn Lock Options This field contains a toggle switch to change the mode of the function keys. -
Page 36: Pre-Boot Behavior
Table 38. Keyboard(continued) Options Description • 1 minute • 5 minute • 15 minute • Never Pre-boot Behavior This section provides Pre-boot Behavior details and settings. Table 39. Pre-boot Behavior Options Description Adapter Warnings Enable Adapter Warnings This field contains a toggle switch to enable or disable warning messages during boot when adapters with low power capacity are detected. -
Page 37: Virtualization
Table 39. Pre-boot Behavior(continued) Options Description MAC Address Pass-Through This field allows the user to configure the MAC address pass- through replacing the external NIC MAC address.: • System Unique MAC Address • Integrated NIC 1 MAC Address • Disabled Virtualization This section provides details on Virtualization settings. -
Page 38: System Logs
Table 41. Performance(continued) adjust processor voltage and core frequency, decreasing average power consumption and heat production. C-States Control Enable C-States Control This field contains a toggle switch to enable or disable C-States Control that configures the CPU's ability to enter and exit low power states. -
Page 39: Updating Bios On Systems With Bitlocker Enabled
Steps 1. Restart the computer. 2. Go to Dell.com/support. • Enter the Service Tag or Express Service Code and click Submit. • Click Detect Product and follow the instructions on screen. 3. If you are unable to detect or find the Service Tag, click Choose from all products. 4. -
Page 40: System And Setup Password
Figure 1. DOS BIOS Update Screen System and setup password Table 43. System and setup password Password type Description System password Password that you must enter to log on to your system. Setup password Password that you must enter to access and make changes to the BIOS settings of your computer. -
Page 41: Deleting Or Changing An Existing System Setup Password
• The password can contain the numbers 0 through 9. • Only lower case letters are valid, upper case letters are not allowed. • Only the following special characters are allowed: space, (”), (+), (,), (-), (.), (/), (;), ([), (\), (]), (`). 3. -
Page 42: Getting Help
Getting help Topics: • Contacting Dell Contacting Dell Prerequisites NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog. About this task Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.
