Summary of Contents for Dell EMC Latitude 5310

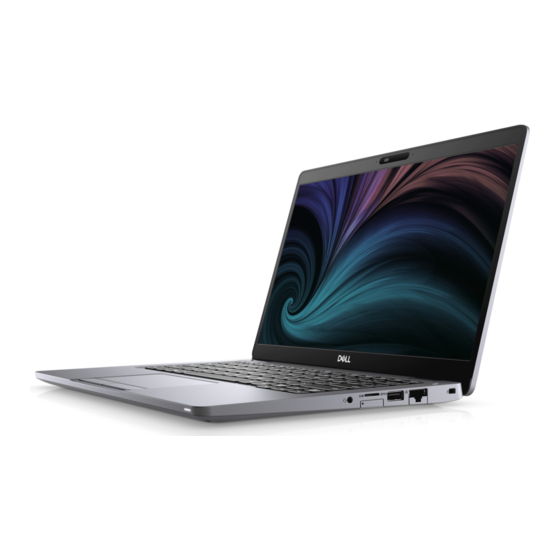

- Page 1 Dell Latitude 5310 Setup and Specification Regulatory Model: P97G Regulatory Type: P97G001...
- Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
-
Page 3: Table Of Contents
Contents 1 Set up your computer........................5 2 Create a USB recovery drive for Windows..................7 3 Chassis overview..........................8 Display view.................................... 8 Left view....................................9 Right view....................................9 Palmrest view..................................10 Bottom view..................................11 4 Technical specifications......................12 Dimensions and weight................................12 Processors.....................................12 Chipset....................................12 Operating system................................. - Page 4 Boot Sequence..................................25 System setup options................................. 25 General options................................25 System information............................... 26 Video....................................27 Security................................... 28 Secure boot..................................29 Intel Software Guard Extensions..........................29 Performance...................................30 Power management..............................30 POST behavior................................31 Manageability................................. 32 Virtualization support..............................32 Wireless...................................33 Maintenance screen..............................33 System logs..................................33 Updating the BIOS in Windows ............................
-
Page 5: Set Up Your Computer
Set up your computer 1. Connect the power adapter and press the power button. NOTE: To conserve battery power, the battery might enter power saving mode. 2. Finish Windows system setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: •... - Page 6 Dell apps Details SupportAssist Proactively checks the health of your computer’s hardware and software. NOTE: Renew or upgrade your warranty by clicking the warranty expiry date in SupportAssist. Dell Update Updates your computer with critical fixes and important device drivers as they become available. Dell Digital Delivery Download software applications including software that is purchased but not preinstalled on your computer.
-
Page 7: Create A Usb Recovery Drive For Windows
Create a USB recovery drive for Windows Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to create the recovery drive. NOTE: This process may take up to an hour to complete. -
Page 8: Chassis Overview
Chassis overview Topics: • Display view • Left view • Right view • Palmrest view • Bottom view Display view 1. Array microphone 2. Camera shutter 3. Camera (Optional) 4. Camera status LED 5. Array microphone 6. LCD panel 7. Battery indicator LED Chassis overview... -
Page 9: Left View
Left view 1. Power connector port 2. USB 3.2 Gen 2 (USB Type-C) port with DisplayPort/Thunderbolt (optional) 3. HDMI port 4. USB 3.2 Gen 1 5. Smart card reader (optional) Right view 1. Universal Audio Jack 2. microSD card reader 3. -
Page 10: Palmrest View
Palmrest view 1. Power button with optional fingerprint reader (FPR) 2. Keyboard 3. NFC/Contactless smart card reader (Optional) 4. Touchpad Chassis overview... -
Page 11: Bottom View
Bottom view 1. Thermal vent 2. Service tag label 3. Speakers Chassis overview... -
Page 12: Technical Specifications
Technical specifications Dimensions and weight Table 2. Dimensions and weight Description Values Height: Front 17.53 mm Rear 19.72 mm Width 305.70 mm (12.04 in.) Depth 207.50 mm (8.17 in.) Weight (maximum) 1.22 kg (2.69 lb) NOTE: The weight of your computer depends on the configuration ordered and the manufacturing variability. -
Page 13: Operating System
Description Values DRAM bus width 64-bit Flash ROM • 24 MB (Non-vPRO) • 32 MB (vPRO) PCIe bus Up to Gen3 Operating system • Windows 10 Home (64-bit) • Windows 10 Professional (64-bit) • Ubuntu 18.04 LTS Memory Table 5. Memory specifications Description Values Slots... -
Page 14: Communications
Description Values Media card reader uSD Slot SIM card uSIM card with tray (optional) Smart card Smart card reader slot (optional) Docking port Type-C docks Power adapter port 7.4 mm barrel Security Noble Wedge security lock slot Table 7. Internal ports and connectors Description Values Internal:... -
Page 15: Audio
Audio Table 10. Audio specifications Description Values Controller Realtek ALC3254 Stereo conversion Supported Internal interface High-definition audio External interface Universal Audio Jack Speakers Internal speaker amplifier Supported (audio codec integrated) External volume controls Keyboard shortcut controls Speaker output: Average Peak 2.5 W Subwoofer output Not supported... -
Page 16: Keyboard
Keyboard Table 13. Keyboard specifications Description Values Type • Standard keyboard • Backlit keyboard Layout QWERTY Number of keys • United States and Canada: 81 keys • United Kingdom: 82 keys • Japan: 85 keys Size X=18.05 mm key pitch Y=18.05 mm key pitch Shortcut keys Some keys on your keyboard have two symbols on them. -
Page 17: Touchpad Gestures
Description Values Vertical 51.40 mm (2.02 in.) Touchpad gestures For more information about touchpad gestures for Windows 10, see the Microsoft knowledge base article 4027871 support.microsoft.com. Power adapter Table 16. Power adapter specifications Description Value Type E5 65W E5 90W E5 65W Diameter (connector) 7.4 mm Barrel... -
Page 18: Display
Description Values Operating Charge: 0°C to 45°C (32°F to Charge: 0°C to 45°C (32°F to Charge: 0°C to 45°C (32°F to 113°F); 113°F); 113°F); Discharge:0°C~70°C(32°F to Discharge:0°C~70°C(32°F to Discharge:0°C~70°C(32°F to 113°F 113°F) 113°F) Storage -20°C to 65°C (4°F to 149°F) -20°C to 65°C (4°F to 149°F) -20°C to 65°C (4°F to 149°F) Operating time... -
Page 19: Fingerprint Reader
Description Values Megapixels HD: 1.04M, FHD:2.07M Color gamut HD: 45% NTCS, FHD:72% NTSC Pixels Per Inch (PPI) HD: 118, FHD: 166 Contrast ratio (min) HD: 300:1, FHD:600:1 Response time (max) 35 ms Refresh rate 60 Hz Horizontal view angle HD: +/- 40 degrees, FHD: +/- 80 degrees Vertical view angle HD: +10 / -30 degrees, FHD:+/- 80 degrees Pixel pitch... -
Page 20: Sensor And Control Specifications
Description Operating Storage Vibration (maximum) 0.66 GRMS 1.30 GRMS Shock (maximum) 140 G† 160 G† Altitude (maximum) -15.2 m to 3048 m (4.64 ft to 5518.4 ft) -15.2 m to 10668 m (4.64 ft to 19234.4 ft) * Measured using a random vibration spectrum that simulates user environment. †... - Page 21 Specifications Dell Encryption Enterprise Dell Encryption Personal Carbonite VMware Workspace ONE Absolute® Endpoint Visibility and Control Netskope Dell Supply Chain Defense Technical specifications...
-
Page 22: Keyboard Shortcuts
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations. Table 25. List of keyboard shortcuts Keys Primary Behavior Secondary Behavior (Fn + Key) Fn + Esc Escape Toggle Fn-key lock... -
Page 23: Software
Software This chapter details the supported operating systems along with instructions on how to install the drivers. Topics: • Downloading Windows drivers Downloading Windows drivers 1. Turn on the laptop. 2. Go to Dell.com/support. 3. Click Product Support, enter the Service Tag, and then click Submit. NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your laptop model. -
Page 24: System Setup
System setup CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain changes can make your computer work incorrectly. NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program screen information for future reference. -
Page 25: Boot Sequence
Keys Navigation Moves to the previous page until you view the main screen. Pressing Esc in the main screen displays a message that prompts you to save any unsaved changes and restarts the system. Boot Sequence Boot sequence enables you to bypass the System Setup–defined boot device order and boot directly to a specific device (for example: optical drive or hard drive). -
Page 26: System Information
Option Description Date/Time Allows you to set the date and time settings. Changes to the system date and time take effect immediately. System information Table 27. System Configuration Option Description Integrated NIC Allows you to configure the on-board LAN controller. •... -
Page 27: Video
Option Description • Disabled • • Bright-enabled by default Keyboard Backlight Timeout on The Keyboard Backlight Timeout dims out with AC option. The main keyboard illumination feature is not affected. Keyboard Illumination will continue to support the various illumination levels. This field has an effect when the backlight is enabled. -
Page 28: Security
Security Table 28. Security Option Description Admin Password Allows you to set, change, and delete the admin password. System Password Allows you to set, change, and delete the system password. Internal HDD-2 Password This option lets you set, change, or delete the password on the system's internal hard disk drive (HDD). -
Page 29: Secure Boot
Option Description Admin Setup Lockout Allows you to prevent users from entering Setup when Admin password is set. This option is not set by default. Master Password Lockout Allows you to disable master password support Hard Disk passwords need to be cleared before the settings can be changed. -
Page 30: Performance
Option Description Enclave Memory Size This option sets SGX Enclave Reserve Memory Size Click one of the following options: • 32 MB • 64 MB • 128 MB—Default Performance Table 31. Performance Option Description Multi Core Support This field specifies whether the process has one or all cores enabled. -
Page 31: Post Behavior
Option Description • Every Day • Weekdays • Select Days Default setting: Disabled USB Wake Allows you to enable USB devices to wake the system from Standby. Support NOTE: This feature is only functional when the AC power adapter is connected. If the AC power adapter is removed during Standby, the system setup removes power from all the USB ports to conserve battery power. -
Page 32: Manageability
Option Description Fn Lock Options Allows you to let hot key combinations Fn + Esc toggle the primary behavior of F1–F12, between their standard and secondary functions. If you disable this option, you cannot toggle dynamically the primary behavior of these keys. -
Page 33: Wireless
Wireless Option Description Wireless Device Allows you to enable or disable the internal wireless devices. Enable • WLAN • Bluetooth All the options are enabled by default. Maintenance screen Option Description Service Tag Displays the Service Tag of your computer. Asset Tag Allows you to create a system asset tag if an asset tag is not already set. -
Page 34: Updating Bios On Systems With Bitlocker Enabled
4. Choose the Products category from the list. NOTE: Choose the appropriate category to reach the product page. 5. Select your computer model and the Product Support page of your computer appears. 6. Click Get drivers and click Drivers and Downloads. The Drivers and Downloads section opens. -
Page 35: System And Setup Password
Figure 1. DOS BIOS Update Screen System and setup password Table 32. System and setup password Password type Description System password Password that you must enter to log on to your system. Setup password Password that you must enter to access and make changes to the BIOS settings of your computer. -
Page 36: Deleting Or Changing An Existing System Setup Password
Deleting or changing an existing system setup password Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and Setup password. You cannot delete or change an existing System or Setup password, if the Password Status is Locked. To enter the System Setup, press F2 immediately after a power-on or reboot. -
Page 37: Getting Help
Getting help Topics: • Contacting Dell Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog. Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.
