Cornwell Tools CAT1000MRRG Quick Start Manual

Cornwell Tools CAT1000MRRG Quick Start Manual

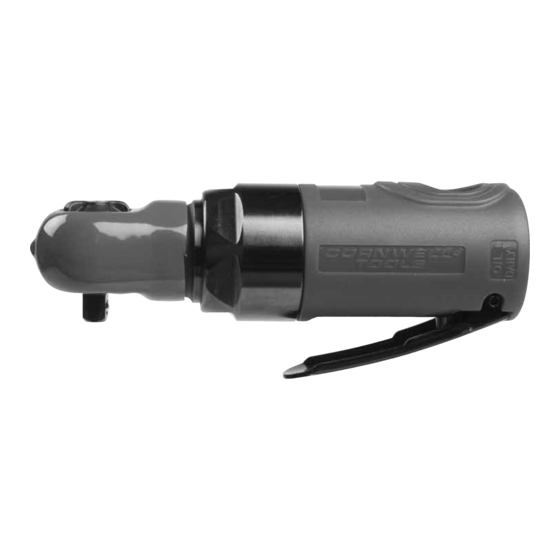

1/4" mini palm air ratchet

Advertisement

Quick Links

Operating Instructions • Warning Information
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed
to filter out microscopic particles.
SPECIFICATIONS
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350 RPM
Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 ft.-lbs.
Air Inlet Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" - 18 NPT
Maximum Air Pressure . . . . . . . . . . . . . . . . . . . 90 psig, 6.2 bar
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . 3.08 CFM
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.12"
Vibration Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.51 m/sec²
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 dBA
Sound Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 dBA
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.99 Lbs.
CAT1000MRR / CAT1000MRRG
• Parts Breakdown
WARNING
WARNING
• MAXIMUM RPM OF 350
• MAX. AIR PRESSURE:
90 PSIG, 6.2 BAR
• USE ONLY IMPACT SOCKETS
AND ACCESSORIES ON THIS
TOOL. DO NOT USE HAND
SOCKETS AND ACCESSORIES.
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
CAT1000MRR
CAT1000MRRG
1/4" Mini Palm
Air Ratchet
Copyright © Professional Tool Products, 2018
All rights reserved
5/29/18
